7425 25W 38° SPOTLIGHT

Name: 7425 25W 38° SPOTLIGHT
Brand: LEDCO
SKU: LCTL-ATF25-30K-BK
Price: 216.97 CAD
Availability: InStock

SKU: LCTL-ATF25-30K-BK

Brand: LEDCO

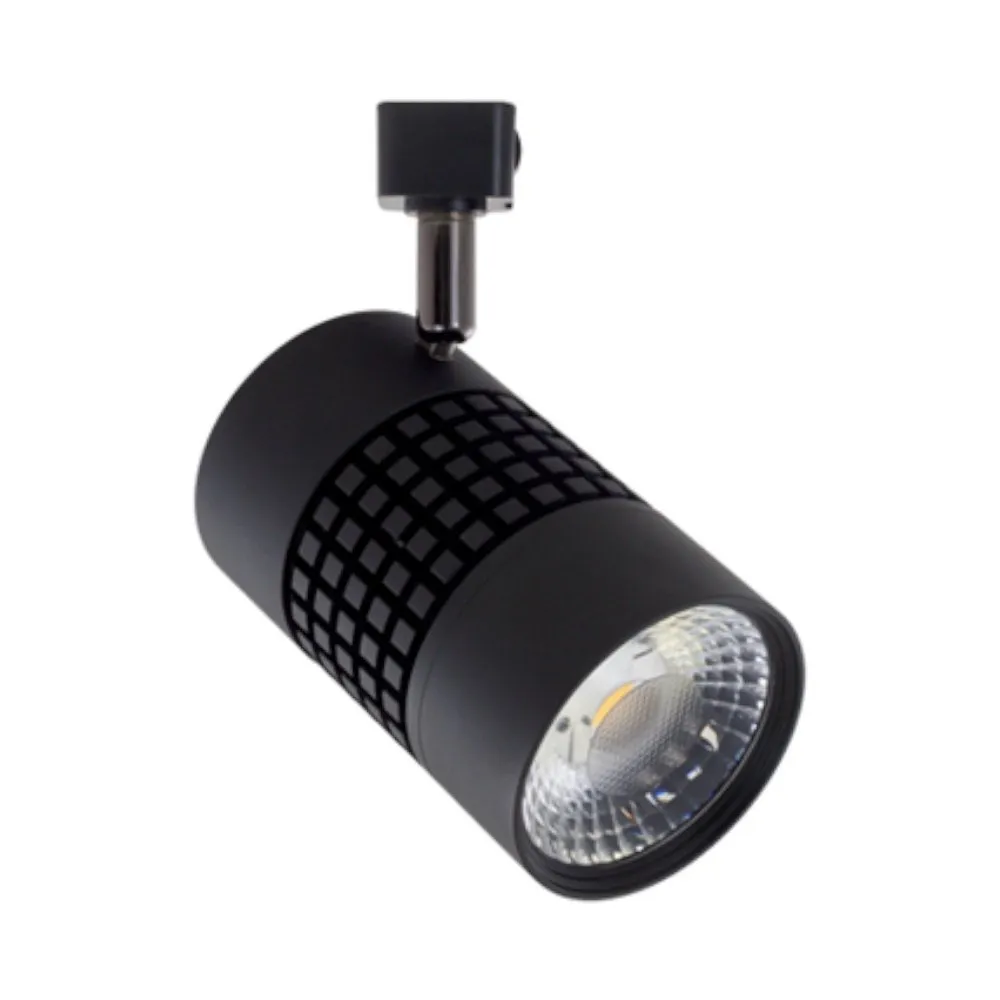

When the ceiling is high and the display has to shine, reach for the 7425 25W 38° spotlight (LCTL-ATF25-30K-BK). This high powered LED track head is specially designed for task and accent lighting, with a black cylindrical body that looks at home in showrooms, restaurants, lofts and galleries. Whether you call it a track light head, a commercial track spotlight, an LED track fixture or a halogen replacement, it brings strong, precise light to merchandise, artwork, feature walls and work surfaces.

Its 25 W LED array maintains uniform intensity and, at 3000 K, is rated at 2,500 lumens with a CRI of 90, so fabrics, food and finishes show their true colours. The spec sheet presents it as a suitable replacement for 100W halogen and 39W PAR20 CMH lamps. In the photometric report, run on the white 3000 K, 38° version, it produces 2,507.4 lumens with measured spreads of 40.3° vertical and 40.2° horizontal, and 239.8 fc at 4 ft. The 3000 K warm white creates an inviting atmosphere, the head tilts up to 90° and rotates 330°, and a colour matching aluminum heat sink provides maximum heat dissipation for 70% lumen maintenance at 50,000 hours. It is dimmable with TRIAC dimming controls, runs on 120 V, and is ENERGY STAR approved, cULus listed for dry locations and backed by a 5-year warranty.

Picture it lighting a car on a Laval dealership floor, a long bar in a Toronto restaurant or a mural in a Winnipeg lobby: one head does the job of a 100W halogen while drawing 25 W. For a white ceiling, see the 7425 25W 38° spotlight in white; for cooler, neutral light, the 4000 K version in black. Check the connector for your track system and give your space the high output track lighting it deserves!

The powerhouse of the series
According to its spec sheet, the ATF7425 is a 25W high powered, ENERGY STAR approved LED track fixture specially designed for task and accent lighting; this black 3000 K, 38° version carries the code LCTL-ATF25-30K-BK. The aluminum body has an aesthetically pleasing smooth cylindrical shape, with a colour matching aluminum heat sink for maximum heat dissipation, essential for a 25 W array rated to keep 70% of its light output at 50,000 hours. The black finish gives a bold, contemporary accent on white ceilings and disappears on dark or exposed ones.

Photometry for high ceilings
The photometric report, run on the white 3000 K, 38° version, totals 2,507.4 lumens, with 1,844.4 lumens (73.6%) in the 0-30° zone and 2,408.9 lumens (96.1%) in the 0-60° zone. Centre beam illuminance reaches 239.8 fc at 4 ft over a 2.9 ft beam, 106.6 fc at 6 ft over 4.4 ft, 59.9 fc at 8 ft over 5.9 ft and 38.4 fc at 10 ft over 7.3 ft: strong accent levels even under a high ceiling. With a 90 CRI, colours stay rich and natural; the series also comes in 15° and 25° beams for tighter targets, and this model is the 38° spotlight.

Electrical, dimming and installation
The head runs on a 120 V primary voltage and is dimmable with TRIAC dimming controls; check dimmer compatibility before installing. It is cULus listed, ENERGY STAR approved, LM79 and LM80 tested, and approved for dry locations. It tilts up to 90° and rotates 330°. The spec sheet states the connector supplied and lists other configurations: confirm the match with your track lighting before ordering, and have a licensed electrician install the track and its power feed. Honeycomb and snoot accessories are also listed for the series to control glare and shape the beam.

Where it shines
In a Laval car dealership, a row of these heads makes every vehicle gleam; in a Toronto restaurant with a high ceiling, they bring warm light down to each table; in a Winnipeg hotel lobby, they light the art and the reception desk; in a Québec City furniture store, they give each vignette its own spotlight. To mix finishes and colour temperatures, pair it with the 7425 25W 38° spotlight in white or the 7425 25W 38° spotlight in white, 4000 K. The spec sheet, with photometry, drawing and ordering guide, is in the Documentation tab.

Technical specifications
Model: LCTL-ATF25-30K-BK
Series: ATF7425 LED track head
Finish: black
Power: 25 W
Colour temperature: 3000 K
Lumens: 2,500
CRI: 90
Beam angle: 38°
Replaces: 100W halogen, 39W PAR20 CMH
Lumen maintenance: 70% at 50,000 hours
Tilt / rotation: 90° / 330°
Voltage: 120 V
Dimming: TRIAC
Certifications: cULus, ENERGY STAR, LM79, LM80
Location: dry
Warranty: 5 years
Dimensions (drawing): 6½ in (165 mm), 6 in (152 mm), 3½ in (89 mm)
