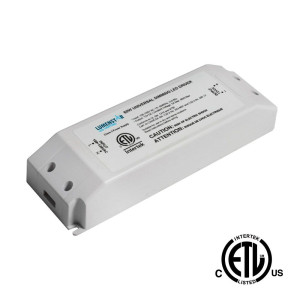

60W - 24V DIMMABLE POWER SUPPLY, CLASS 2, 100 - 130V AC INPUT, 24V DC OUTPUT, DAMP LOCATION RATED, ETL APPROVED

Name: 60W - 24V DIMMABLE POWER SUPPLY, CLASS 2, 100 - 130V AC INPUT, 24V DC OUTPUT, DAMP LOCATION RATED, ETL APPROVED
Brand: LUMENSTARLED
SKU: LS-24V-60D-CV
Price: 154.97 CAD
Availability: InStock

SKU: LS-24V-60D-CV

Brand: LUMENSTARLED

Give your 24V LED strips clean, dimmable power with the LUMENSTARLED LS-24V-60D-CV. This 60W 24V dimmable LED power supply, also known as an LED driver, LED transformer or class 2 power supply, converts standard household current into a steady 24V DC output for 24V LED strip lights, tape lighting, cove lighting, under-cabinet lighting and accent fixtures. It is a compact, dependable choice for homeowners, electricians and lighting designers across Canada.

According to the spec sheet, this driver delivers a 24V DC output of max. 60W at 2.5A from a 120V AC, 60Hz input. It is Class 2, c ETL us Listed and backed by a 3-year warranty, and its polycarbonate plastic case measures L180 x W61 x H35mm, slim enough to hide in a cabinet, a bulkhead or a ceiling cavity. Rated for damp locations and designed to operate from -20°C to +40°C, it adapts to bathrooms, covered spaces and other humid areas. As a dimmable LED driver, it lets you go from bright task lighting to a soft evening glow with a compatible dimmer.

Use it for kitchen under-cabinet strips, vanity and mirror accents, bookcases, display cabinets, stair lighting and cove ceilings in homes, condos, restaurants, hotels and boutiques. Pair it with 24V constant voltage LED tape and keep the total connected load below 60W with a comfortable margin. Order the LS-24V-60D-CV and power your next LED strip project with confidence.

Compatible with
Works with:
LED strip: LS-FLI-2B-24-120-3K, LS-FLI-2B-24-160-3K, LS-FLI-2C-24-60-3K, LS-FLI-2F-24-60-3K, LS-FLI-4B-24-224-DTW, LS-FLI-5B-24-60-RGB, LS-FLI-9B-24-320-3K, LS-FLI-9B-24-480-3K

A 24V constant voltage driver for LED tape
The LS-24V-60D-CV is a constant voltage LED power supply with a 24V DC output, the type of driver required by 24V LED tape light and other 24V constant voltage LED products. Many installers prefer 24V strips for longer runs because they carry less current for the same wattage than lower-voltage systems. Rated at max. 60W, 2.5A, this driver is sized for small and medium projects such as a kitchen under-cabinet run, a lit bookcase, a bedroom cove or a retail display.

Class 2 safety and certification
The spec sheet confirms that this unit is Class 2, meaning the output is power-limited, which is why it is often sought after as a class 2 power supply in Canada for low-voltage lighting installations. It is also c ETL us Listed and covered by a 3-year warranty, giving contractors and homeowners peace of mind for professional installations.

Technical specifications
Product code: LS-24V-60D-CV
Output voltage: 24V DC
Output wattage: max. 60W
Amperage: 2.5A
Input voltage: 120V AC
Input frequency: 60Hz
Housing: polycarbonate plastic case
Dimensions (LxWxH): L180 x W61 x H35mm
Operating temperature: -20°C to +40°C
Certifications: c ETL us Listed, Class 2
Location: damp location rated
Warranty: 3-year

Dimming and installation tips
This dimmable 24V power supply lets you adjust the intensity of your LED strips for any mood, from full brightness for cooking and reading to a subtle glow for entertaining. Choose a dimmer compatible with this driver and rated for LED loads, and test the combination before closing walls or cabinets. Add up the wattage of all connected strips and leave headroom rather than loading the driver to its full 60W. Mount it in a ventilated spot within its operating temperature range. The line-voltage connection must be made by a qualified electrician in accordance with the Canadian Electrical Code.

Documentation
The technical PDF for the dimmable 60W 24V DC LED power supply is available in the Documentation tab of this page. Share it with your electrician or designer to confirm dimensions, operating range and certification details before installation.
