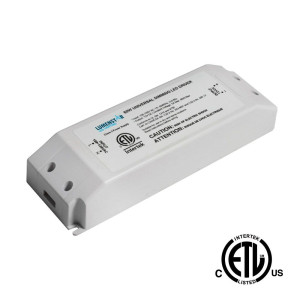

60W - 12V DIMMABLE POWER SUPPLY, 100 - 130V AC INPUT, 12V DC OUTPUT, DAMP LOCATION RATED, ETL APPROVED

Name: 60W - 12V DIMMABLE POWER SUPPLY, 100 - 130V AC INPUT, 12V DC OUTPUT, DAMP LOCATION RATED, ETL APPROVED
Brand: LUMENSTARLED
SKU: LS-12V-60D-CV
Price: 154.97 CAD
Availability: InStock

SKU: LS-12V-60D-CV

Brand: LUMENSTARLED

Bring smooth, dimmable light to your low-voltage LED projects with the LUMENSTARLED LS-12V-60D-CV. This 60W 12V dimmable LED power supply, also called an LED driver, LED transformer or constant voltage power supply, turns standard household current into a steady 12V DC output for 12V LED strip lights, under-cabinet lighting, cove lighting, shelf and display lighting and small accent fixtures. It is a compact, practical choice for homeowners, electricians and lighting designers who want dependable power in a small format.

The spec sheet confirms the essentials: a 12V DC output of max. 60W, 5A, a 120V AC input and a polycarbonate plastic case measuring L180 x W61 x H35mm, slim enough to fit inside a cabinet, a bulkhead or a ceiling space. The unit is c ETL us Listed, rated for damp locations and designed to operate from -20°C to +40°C. As a dimmable LED driver, it lets you lower the light level for a cozy evening atmosphere or raise it to full brightness for task lighting in the kitchen, the office or a retail display.

Use it for kitchen under-cabinet strips, bathroom vanity accents, bookcases, display cabinets, stair lighting and small cove runs in Canadian homes, condos, restaurants and boutiques. Pair it with 12V constant voltage LED tape and keep the total connected load below 60W, with a safety margin. Order the LS-12V-60D-CV and give your next LED strip installation a reliable, dimmable power source.

Compatible with
Works with:
LED strip: LS-FLI-1B-12-60-3K, LS-FLI-1B-12-60-4K, LS-FLI-1B-12-120-3K, LS-FLI-1B-12-120-CCT, LS-FLI-5B-12-30-RGB, LS-FLI-9B-12-320-3K, LS-FLI-9B-12-480-3K, LS-FLI-1D-12-60-3K

A compact 12V constant voltage driver
The LS-12V-60D-CV is a constant voltage LED power supply with a 12V DC output, the type of driver required by 12V LED tape light and other 12V constant voltage LED products. Rated at max. 60W, 5A, it is sized for small and medium projects: a run of under-cabinet lighting in a kitchen, a lit bookcase, a vanity mirror accent or the cove in a bedroom ceiling. Its compact footprint makes it easy to hide close to the lighting, which keeps low-voltage wiring runs short and tidy.

Dimmable light for every mood
As a dimmable 12V power supply, it gives you control over the intensity of your LED strips, from bright, even light for cooking and reading to a soft glow for entertaining or winding down in the evening. Choose a dimmer that is compatible with this driver and rated for LED loads, and test the combination before closing up walls or cabinets for the best result.

Technical specifications
Product code: LS-12V-60D-CV
Output voltage: 12V DC
Output wattage: max. 60W, 5A
Input voltage: 120V AC
Housing: polycarbonate plastic case
Dimensions (LxWxH): L180 x W61 x H35mm
Operating temperature: -20°C to +40°C
Certifications: c ETL us Listed
Location: damp location rated

Installation and planning tips
Add up the wattage of all LED strips connected to the driver and leave headroom rather than loading it to its full 60W. Mount the unit in a ventilated location that stays within its operating temperature range, and use wiring sized for the length of your low-voltage runs. Its damp location rating makes it suitable for areas with humidity, such as bathrooms and covered spaces. The line-voltage connection must be carried out by a qualified electrician in accordance with the Canadian Electrical Code.

Documentation
The technical PDF for the dimmable 60W 12V DC LED power supply is available in the Documentation tab of this page. Share it with your electrician or designer to confirm the dimensions, the operating range and the certification details before installation.

Technical Files
