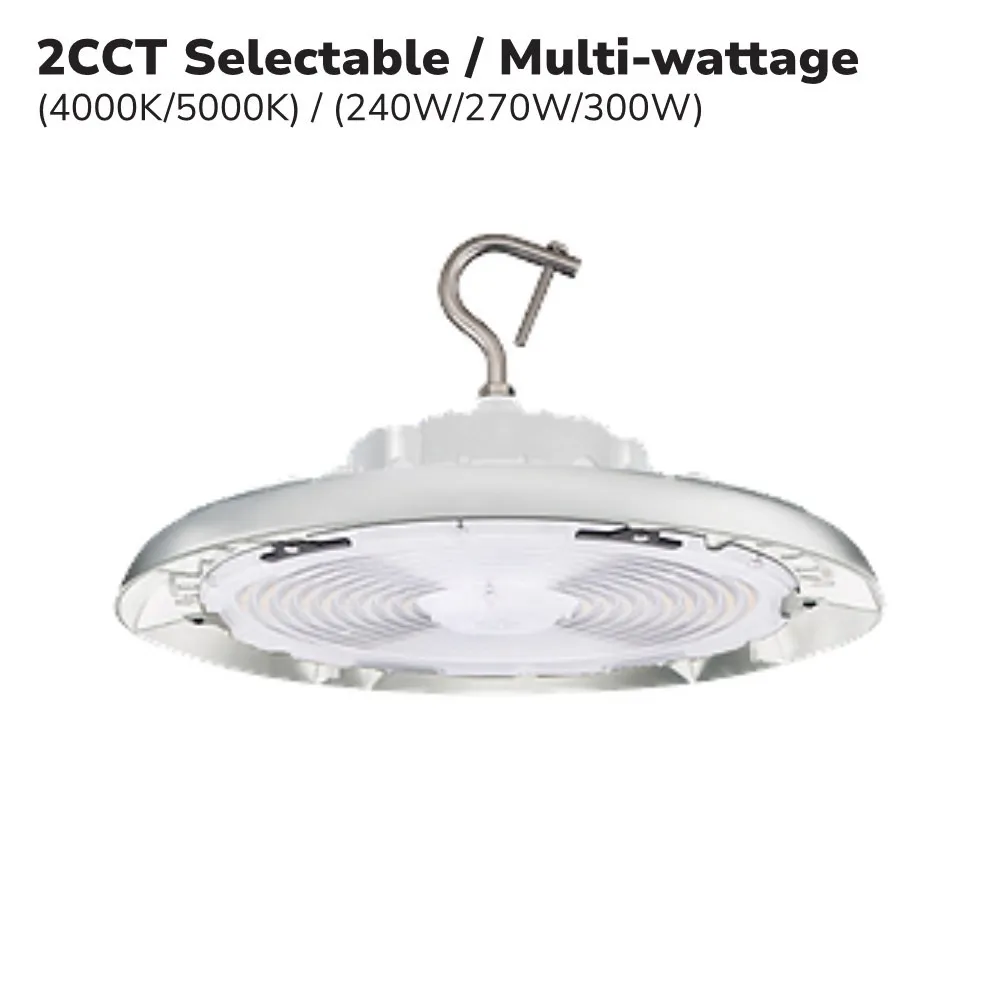

    240W-270W-300W LED HIGHBAY
    240W-270W-300W LED HIGHBAY

    240W-270W-300W LED HIGHBAY

    SKU: LCHBU-240-270-300W-MKWV-T

    Brand: LEDCO

    Tall ceilings deserve light that actually reaches the floor, and this round UFO LED high bay was built for exactly that. Known on job sites as a high bay light, shop light or warehouse light, it replaces the old metal halide and fluorescent fixtures that eat power and take forever to warm up. The compact disc shape pushes a wide, even pool of light straight down over aisles, work benches, hoists and racking, which is why LED high bay lights have become the default choice for warehouses, factories, garages, arenas and big-box retail floors across Canada. One model, three power levels: the SKU is LCHBU-240-270-300W-MKWV-T.

    Field-selectable wattage lets you set the fixture to 240W, 270W or 300W right on site, and field-selectable CCT gives you two selectable colour temperatures, 4000K or 5000K, so you can match a neutral white shop to a crisp white warehouse without reordering anything. Output runs from 40800 lumens up to 51000 lumens depending on the wattage you pick, with a system light efficacy of 170 LPW and CRI≥80 so labels, colour-coded wiring and paint finishes read correctly. The 120-347V auto-sensing driver covers virtually every commercial service, the 90° beam spread with PC lens spreads light broadly, and the IP65 wet location rated build handles dust and damp air. It is cULus listed, DLC 5.1 Premium and NSF rated, with L70 @ 50,000 hours of expected life.

    This round high bay LED light earns its keep in distribution centres, machine shops, welding bays, food plants (NSF rated), car dealerships, hockey arenas, barns and municipal garages — anywhere ceilings are high and downtime is expensive. The white finish blends into industrial ceilings, the supplied 3M cable makes hookup straightforward, and the sensor socket is ready for an occupancy or daylight sensor when your project calls for one. Lighting a smaller bay or a lower ceiling? Look at the 90W-120W-150W LED highbay or the 180W-200W-240W LED highbay to keep the same look throughout the building. Order yours and light the whole space properly the first time.

    407.97$

    Built for industrial ceilings
    The round UFO format exists for one reason: it concentrates a lot of light into a wide, uniform pool on the floor below, with a low-profile body that clears ductwork, sprinkler lines and crane rails. This fixture measures 15.4” in diameter and 7.28” in height, so it stays discreet even when mounted in rows down a warehouse aisle. The housing carries a white finish that reflects heat and blends into pale industrial ceilings, and a 3M cable comes supplied so the fixture arrives ready to connect. A sensor socket is supplied and capable, which means an occupancy or daylight-harvesting sensor can be added when your energy code or your client asks for one.

    Light quality and beam control
    Under the PC lens, a 90° beam spread pushes light down and outward instead of letting it scatter at the ceiling, giving you consistent footcandles across racking, assembly tables and traffic lanes. CRI≥80 keeps colours honest, so inventory labels, colour-coded cable, safety markings and paint finishes are easy to read during a long shift. Field-selectable CCT gives you two selectable colour temperatures — 4000K for a neutral, comfortable white in shops and showrooms, 5000K for a crisp, alert white in warehouses, cold storage and sports spaces. Because the selection happens at install, one box on the shelf covers both looks.

    Technical specifications
    Model: LCHBU-240-270-300W-MKWV-T
    Wattage: 240W / 270W / 300W field selectable
    Lumens: 40800 to 51000
    Efficacy: 170 LPW
    CCT: 4000K & 5000K field selectable
    CRI: ≥80
    Input voltage: 120-347V auto-sensing driver
    Beam spread: 90°, PC lens
    Rating: IP65, wet location rated
    Life: L70 @ 50,000 hours
    Dimensions: 15.4” diameter x 7.28” height
    Finish: White, with 3M cable
    Listings: cULus listed, DLC 5.1 Premium, NSF rated, UL/FCC/DLC

    Electrical and installation
    The 120-347V auto-sensing driver is the detail electricians appreciate most: the same fixture wires into the service you find on site, which simplifies orders on multi-building projects and keeps spares universal. Selectable wattage does the same job on the photometric side — set 240W where the ceiling is lower or the rows are tight, step up to 300W over tall storage or an equipment bay. Always cut power at the panel before wiring, confirm the ceiling anchor or structural member can carry the fixture, space units according to mounting height (the higher the mount, the wider the spacing), and have a licensed electrician complete permanent connections. The IP65, wet location rating means dust, washdown mist and unheated spaces are not a problem.

    Applications, family and documentation
    Think distribution warehouses and pick modules, machine and welding shops, agricultural buildings, arenas and gyms, car dealership service bays, recycling centres and food processing plants where the NSF rating matters. For a building with mixed ceiling heights, pair this unit over the tall bays with the 180W-200W-240W LED highbay in black, the 180W-200W-240W LED highbay in white or the 90W-120W-150W LED highbay over offices, mezzanines and lower service areas — same round UFO look throughout. The full technical PDF spec sheet for LCHBU-240-270-300W-MKWV-T is in the Documentation tab, with dimensions, the product specification table and the complete list of ratings for your submittal package.
