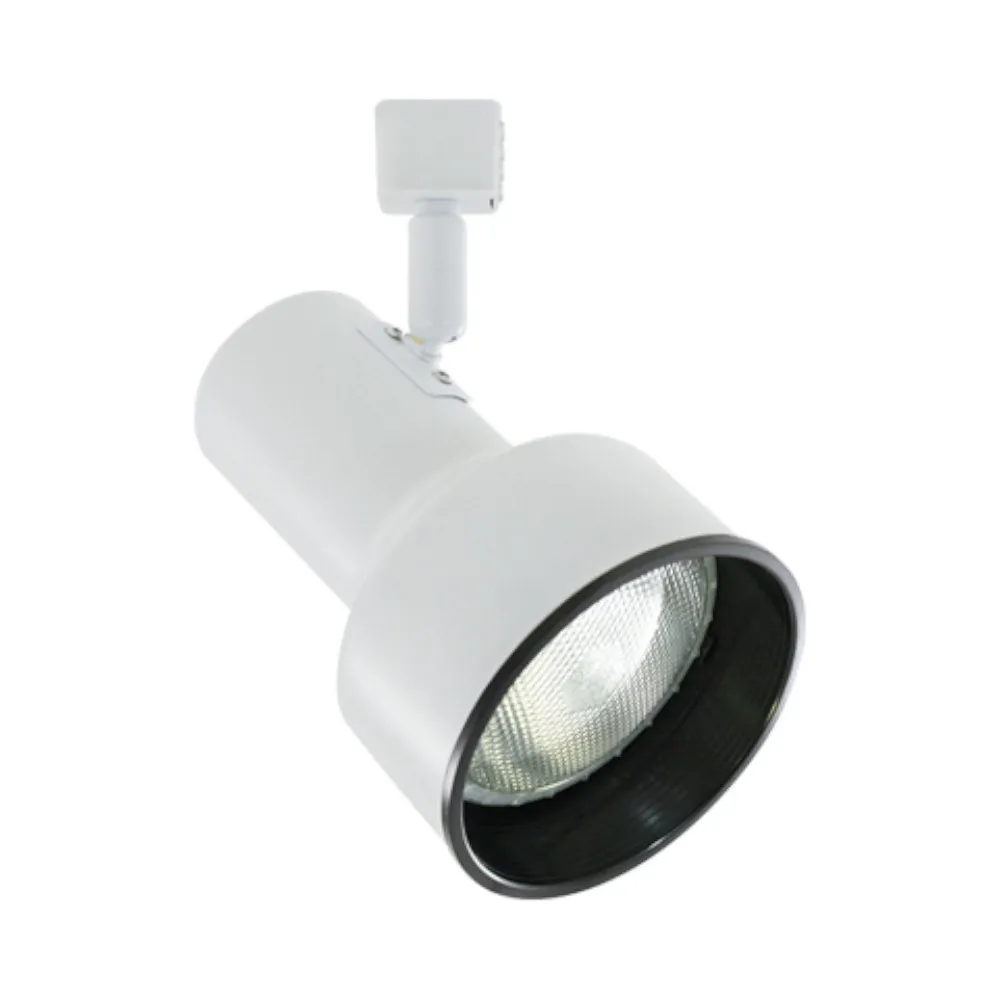

Built to last, designed to disappearThe LERNA is a front loading
gimbal track fixture made for PAR30 lamps. Its
die cast aluminum construction provides superior strength and rigidity, a real asset for a head that will be aimed and re-aimed over the years, and its softened edges add up to a low profile aesthetic. A single stem conceals the wiring, so the only thing people notice is the light. In white (SKU LCTL-LRNA-PAR30-WH), it melts into a white ceiling or a bright contemporary interior; the same fixture also exists in black for darker ceilings or an industrial look.
Precise aiming, steady beamThe lamp housing is controlled by an
adjustable yoke for custom aiming: 330° of horizontal rotation and 90° of vertical rotation let you reach a painting, a sculpture, a product shelf or a kitchen counter from almost anywhere along the track. Once you have found the right angle, the fixture assures a secure lock on the angle position. As a
directional light source, it is made for special aiming and accent lighting; the beam spread, colour temperature and brightness come from the PAR30 lamp you choose, so a narrow spot makes artwork pop while a wider flood washes a wall or a display table.
Electrical and installation detailsA medium base
porcelain socket accepts 120V AC PAR30 lamps, 75 watts max. The fixture runs on a 120V / 60Hz input with a 120V output and a
75W maximum load, and it is cULus listed. It is dimmable when used with electronic line voltage rated dimming controls only; pair it with a dimmable lamp for smooth control. The spec sheet includes a connector compatibility chart showing the connector styles for the major track systems, so confirm the style of your
line voltage track before installing. Accessories are ordered separately. Always cut the power at the breaker before adding or moving a head, and have a qualified electrician install the track and its power feed.
Where it shinesIn a Québec City gallery, a row of
LERNA track heads lets you relight each exhibit in minutes; in an Ottawa kitchen, a few heads over the island make meal prep easier; in a Toronto clothing boutique, they spotlight mannequins and seasonal displays. At home, aim one at a bookcase, a staircase wall or a stone fireplace. For a coordinated layout, mix it with the
LERNA PAR20 spotlight where a smaller lamp suits the space better. The
spec sheet, with dimensional drawing, connector chart and ordering guide, is in the Documentation tab.
Technical specificationsModel: LCTL-LRNA-PAR30-WH
Type: front loading gimbal track fixture, line voltage
Finish: white
Body: die cast aluminum, softened edges, low profile
Lamp: 120V AC PAR30, medium base, 75 watts max
Socket: porcelain
Rotation: 330° horizontal, 90° vertical
Electrical: 120V / 60Hz input, 120V output, 75W maximum load
Dimming: electronic line voltage rated dimming controls only
Certification: cULus listed
Drawing dimensions: 6-15/16 in (176 mm), 4-1/2 in (114 mm), 6-1/2 in (165 mm)
