INDOOR, 24V DC, COB LED TAPE, 25M (82'), 1.5W/FT (5W/M), 320 LEDS/M, CRI 90, DIMMABLE, 27K

Name: INDOOR, 24V DC, COB LED TAPE, 25M (82'), 1.5W/FT (5W/M), 320 LEDS/M, CRI 90, DIMMABLE, 27K
Brand: LUMENSTARLED
SKU: LS-FLI-9D-24-320-27K
Price: 459.97 CAD
Availability: InStock

SKU: LS-FLI-9D-24-320-27K

Brand: LUMENSTARLED

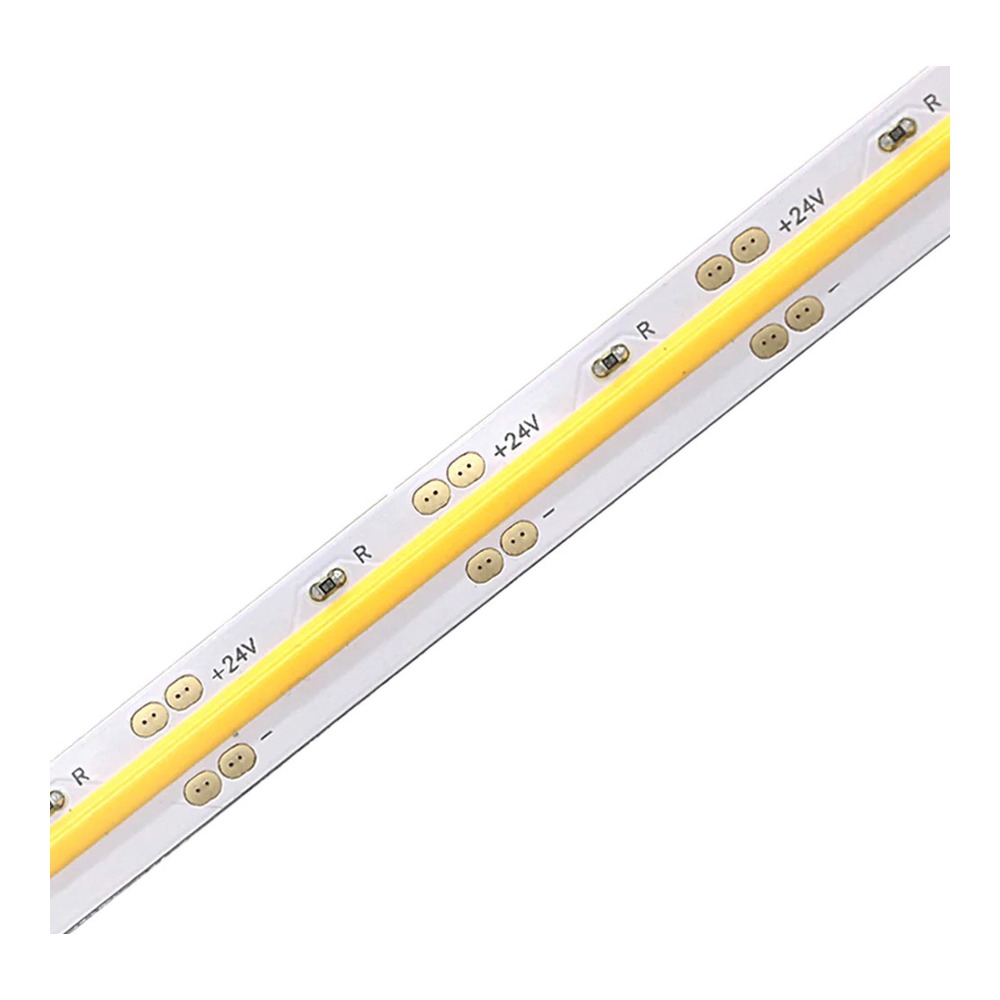

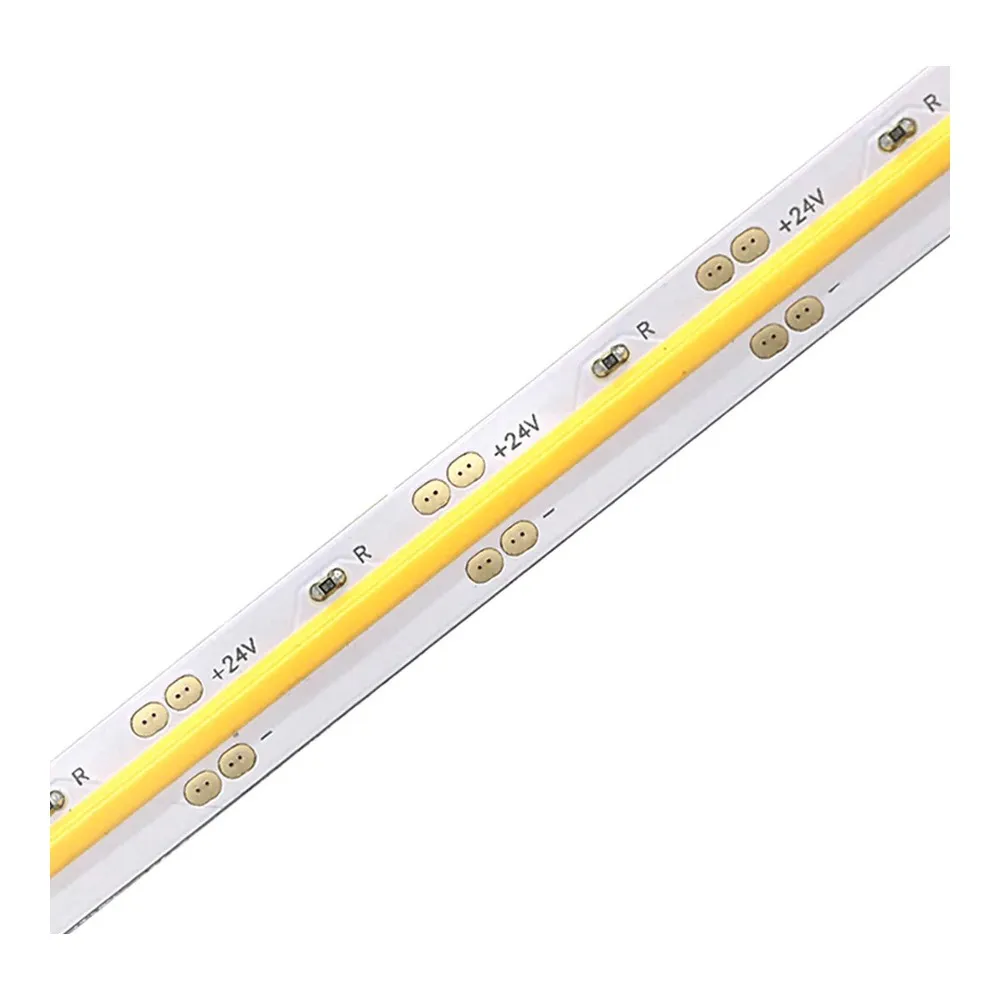

Say goodbye to that dotted, uneven glow under your cabinets. The LumenstarLED COB LED tape (SKU LS-FLI-9D-24-320-27K) is a chip-on-board LED strip light — also called LED tape light, tape lighting or LED ribbon — that throws one clean, continuous line of warm light instead of a row of visible dots. With 320 LEDs per metre bonded onto a single board, the light reads as a solid bar, which is exactly what you want for cove lighting, under-cabinet lighting, staircases, millwork, display cases and any spot where the strip itself might peek into view. It comes on a generous 25 M (82') roll, so long runs need fewer joints and stay perfectly even from the first foot to the last.

This is a 24V DC low-voltage tape drawing just 1.5W/ft (5W/M) and delivering 168 lumens per foot (550 lumens per metre), with a 120° beam angle that fills a channel edge to edge. The 2700K warm white colour temperature brings back those golden, incandescent-style tones, and a CRI above 90 keeps wood grain, paint, fabric, food and skin tones looking true. It is dimmable with compatible low-voltage dimming power supplies, cuts every 5/8" (16 mm) for precise fits, ships with a 24" (60 cm) wire lead on both ends, and mounts in seconds thanks to the double-sided 3M tape on the back. Rated IP22 for indoor use, it operates from -25 to +60°C (-13 to 140°F), is cULus listed (E365816), lasts over 65,000 hours and is backed by a 5-year warranty.

Use it in kitchens above and below the uppers, in closets and pantries, along bookshelves and bar fronts, in hotel lobbies, boutiques, bakery and jewellery displays, reception desks and basement coves — anywhere in a Canadian home or business that needs soft, flattering, glare-free light. For the cleanest result, run it inside an aluminum channel such as the LL10 standard 1M frosted, the LL12 standard 2M frosted, the LL13 standard 1M frosted for wider coverage, or the flexible LL14 standard 2M frosted for curves and arches. Add the roll to your project and get that seamless line of light you have been picturing.

Continuous, dot-free light
The Single Color 5W COBFlex LED Strip uses chip-on-board technology: instead of spacing individual SMD diodes along the circuit, hundreds of tiny chips are mounted directly on the board and covered by a phosphor layer, giving 320 LEDs per metre (97 LEDs per foot) of uninterrupted emission. The result is a true light line with no shadowing or scalloping, and a 120° beam angle that spreads evenly across a diffuser. That makes this COB LED tape the right pick whenever the light source is partly visible — open coves, glass shelves, under-counter reveals, display cases and finished millwork.

Light quality and comfort
At 2700K, this tape sits in the warm white range associated with classic incandescent and halogen light: cozy, golden and forgiving. The CRI above 90 means colours are rendered faithfully, so cabinetry stain, quartz veining, textiles, artwork, pastries and skin tones all keep their real character. Combined with the dot-free COB output, you get a visually comfortable LED strip light that flatters the room instead of fighting it.

Technical specifications
SKU: LS-FLI-9D-24-320-27K
Brand: LumenstarLED
Voltage: 24V DC
Wattage: 1.5W/ft (5W/M)
Lumen output: 168/ft (550/M)
Colour temperature: 2700K
CRI: >90
Beam angle: 120°
LED density: 97 LEDs/ft (320 LEDs/M)
Cut increment: 5/8” (16 mm)
Roll length: 82’ (25M)
Width: 5/8” (16 mm) — thickness 1/16” (2 mm)
IP rating: 22 (indoor)
Dimmable: Yes
Operating temperature: -25~+60°C (-13~140°F)
Lead wire: 24” (60 cm) on both ends
Lifespan: +65,000 hours
Listing: cULus E365816
Warranty: 5-year

Wiring, dimming and installation
Being a 24V DC low-voltage tape, it needs a Class 2 driver sized for the run you are powering; dimming is achieved with compatible low-voltage dimming power supplies, giving smooth control for mood settings in living rooms, bedrooms, restaurants and hotel suites. Cut only on the marked 5/8" (16 mm) increments, then rejoin sections with the solderless COB accessories listed on the spec sheet: LS-SC1-COB seamless strip-to-strip, LS-SC2-COB with a 24" wire lead, LS-SC2-COB-20 with a 20' (6.1 m) lead, LS-SC3-COB with a 12" lead in the middle, LS-SC4-COB L-connector for corners, and LS-BK-SC2-COB wire-to-strip (13 × 11 × 6 mm). The pre-attached double-sided 3M tape holds the strip while you work, and the 24" (60 cm) leads on both ends make feeding power into a cabinet or ceiling cove much easier.

Channels, applications and documentation
Lumenstar aluminum profiles are made to pair with their strips: the LL10 standard 2M frosted slim recessed channel W19/32 x H15/64” (W15 x H6mm) disappears into millwork, the LL12 standard 1M frosted slim modern W23/32 x H5/16” (W18 x H8mm) suits surface runs, the LL13 standard 2M frosted wide slim W29/32 x H3/8” (W23 x H10mm) softens brighter installations, and the LL14 standard 1M frosted curve flexible W45/64 x H7/32” (W18 x H5.7mm) follows arches, islands and rounded bulkheads. Typical projects: cabinet, accent, display, cove and under-cabinet lighting in kitchens, walk-in closets, retail counters, bars and offices. The full technical spec sheet for this LED tape strip light is available in the Documentation tab for your submittals and electrician.
