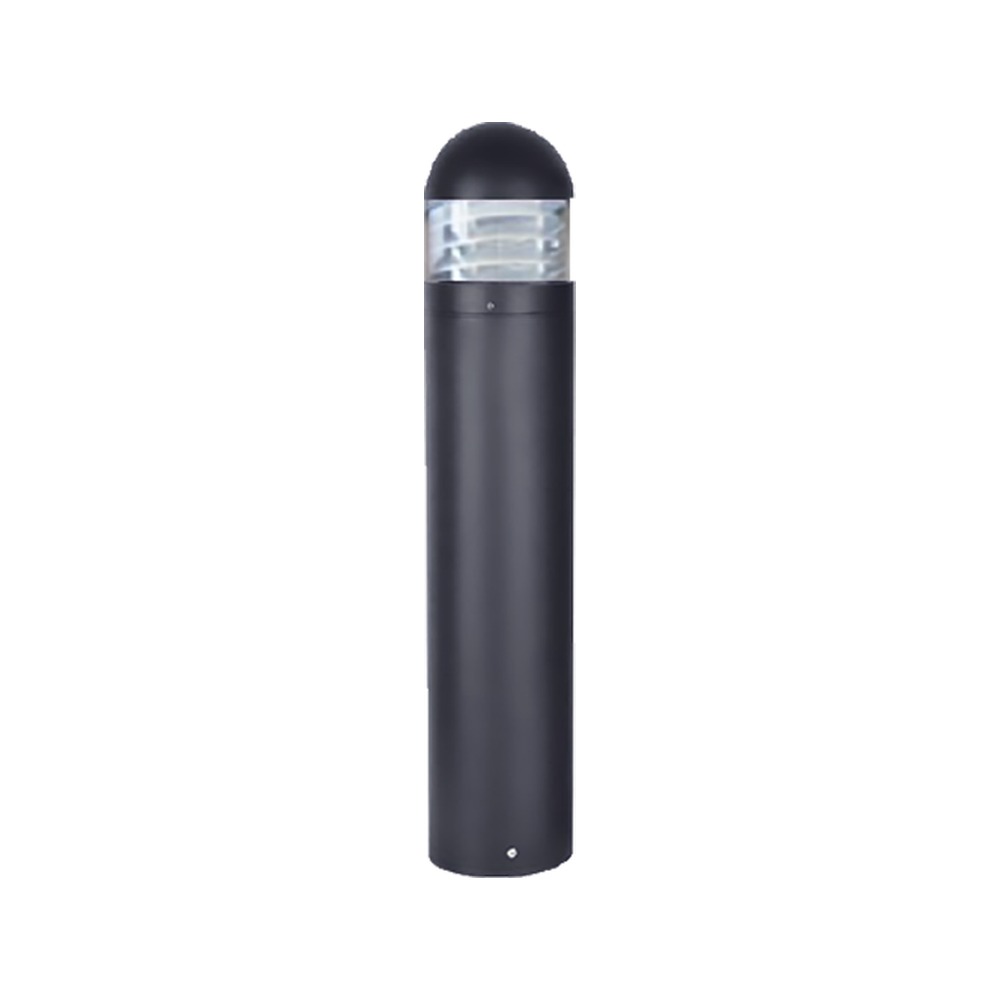

EDA-BOL E - BOLLARD CLEAR PC LENSED MODULE - 6" DIA. - MW 30-24-18W - MK 30-40-50K - 120-347V AUTO-SENSING DRIVER - BLACK - 0-10V DIM. 45" OAH (WHEN ASSEMBLED)

Name: EDA-BOL E - BOLLARD CLEAR PC LENSED MODULE - 6" DIA. - MW 30-24-18W - MK 30-40-50K - 120-347V AUTO-SENSING DRIVER - BLACK - 0-10V DIM. 45" OAH (WHEN ASSEMBLED)
Brand: TUROLIGHT
SKU: EDA-BOL-E-CFIX-MW-MK-120-347V-BK-D
Price: 467.97 CAD
Availability: InStock

SKU: EDA-BOL/E/CFIX/MW/MK/120-347V/BK/D

Brand: TUROLIGHT

Give your walkway, driveway or building entrance a clean line of light at knee height with the EDA-BOL E LED bollard from TUROLIGHT. Often called a bollard light, pathway post light or landscape post light, this model uses a clear polycarbonate lensed module paired with the bollard body cylinder — it ships as a 2-piece set (bollard module + bollard cylinder), so you get the complete fixture ready to mount. SKU EDA-BOL/E/CFIX/MW/MK/120-347V/BK/D. It's the kind of outdoor LED bollard you put along a condo walkway, a parking lot island, a park trail or a golf course path, where you want a low glare-free light that guides people without lighting up the whole sky.

The numbers are made for spec work. Field selectable wattage gives you 30W, 24W or 18W, with matching initial lumen output of 2400, 1920 or 1440 lumens at an efficacy of 80 lm/W. Selectable CCT (MK) means 3 selectable colour temperatures — 30-40-50K — chosen right in the field, so one bollard suits a warm residential entry or a crisper commercial walkway. CRI is ≥70. The 120-347V auto-sensing driver reads the line voltage for you and runs from -40 ˚C to +40 ˚C, which matters in a Canadian winter, and it's compatible with 0-10V dimming. The housing is pressure die cast aluminum in a black finish with a premium grade polycarbonate diffuser and an aluminum based MCPCB for long life. Rated IP65, wet location, with L70 at 50,000 hours and a 5 years warranty. Assembled size: 6" diameter × 44.8" high.

Use it for residential landscapes, parks, golf courses and complexes: townhouse walkways, church and school grounds, hotel entries, industrial park paths, retail plaza sidewalks. The wide voltage window makes it easy on 347V commercial services and 120V homes alike. Need a different look on the same 6" body? Compare the Eda-Bol A opal PC lensed bollard for softer diffusion or the Eda-Bol B no lens bollard, and match the same family up high with the Eda-PT single arm post top. Line up your path lighting today.

Sold separately
To complete the installation, add:
Mounting accessory: EDA-BOL/ANCHOR-SET

Built to stand outside, year after year
The EDA-BOL E is built around a pressure die cast aluminum housing in a black finish, a shape chosen to look good in daylight as much as it performs at night. Light passes through a premium grade polycarbonate diffuser — on this E version, a clear PC lensed module — while the LEDs sit on an aluminum based MCPCB that pulls heat away from the diodes for long life. The complete fixture is sold as a 2-piece set: the bollard module plus the bollard body cylinder. Assembled, it measures 6" in diameter by 44.8" high, the tallest of the three EDA-BOL bodies.

Light output you choose on site
This LED bollard is both selectable wattage and selectable CCT. Wattage is field selectable at 30-24-18W, delivering 2400, 1920 or 1440 initial lumens with an efficacy of 80 lm/W, so one part number covers a bright commercial walkway and a discreet residential path. The MK code means 3 selectable colour temperatures, 30-40-50K, set in the field. Colour rendering is ≥70 CRI, enough to keep signage, landscaping and paving colours natural along the route. Rated life is L70 at 50,000 hours.

Electrical and installation details
The integrated 120-347V auto-sensing driver detects the incoming line voltage, so the same bollard can go on a 120V residential circuit or a 347V commercial feed without ordering a different SKU or adding a transformer. Operating temperature range is -40 ˚C to +40 ˚C. 0-10V dimming is supported, handy when a property manager wants lower levels late at night or when a lighting control panel steps the exterior scene down. For a new concrete base, the EDA-BOL/ANCHOR-SET bollard anchor bolt assembly (3 anchor/bolts with jig template) is the companion part to set your bolt pattern before the pour. Always have the bollard installed by a qualified electrician, following local code.

Technical specifications
Model: EDA-BOL/E/CFIX/MW/MK/120-347V/BK/D
Wattage: 30-24-18W selectable
Initial lumens: 2400-1920-1440
Efficacy: 80 lm/W
CCT: 30-40-50K selectable
CRI: ≥70
Input voltage: 120-347V auto-sensing
Dimming: 0-10V
Rating: IP65, wet location
Life: L70 @ 50,000 hrs
Dimensions (D × H): 6" × 44.8"
Finish: Black
Warranty: 5 years

Applications, matching products and documents
Turolight lists this bollard for residential, parks, golf course and complex applications — think a subdivision walkway, a municipal park loop, a clubhouse path, a medical clinic entry or the sidewalk between two office blocks. For a uniform site, pair it with the Eda-Bol A opal lensed bollard or the Eda-Bol B no lens bollard, both on the same 6" black body and the same selectable wattage and CCT platform, and cover the parking areas with the Eda-PT double arm post top. The technical PDF spec sheet, with the dimensional drawing, polar candela data and full ordering guide, is in the Documentation tab of this page.
