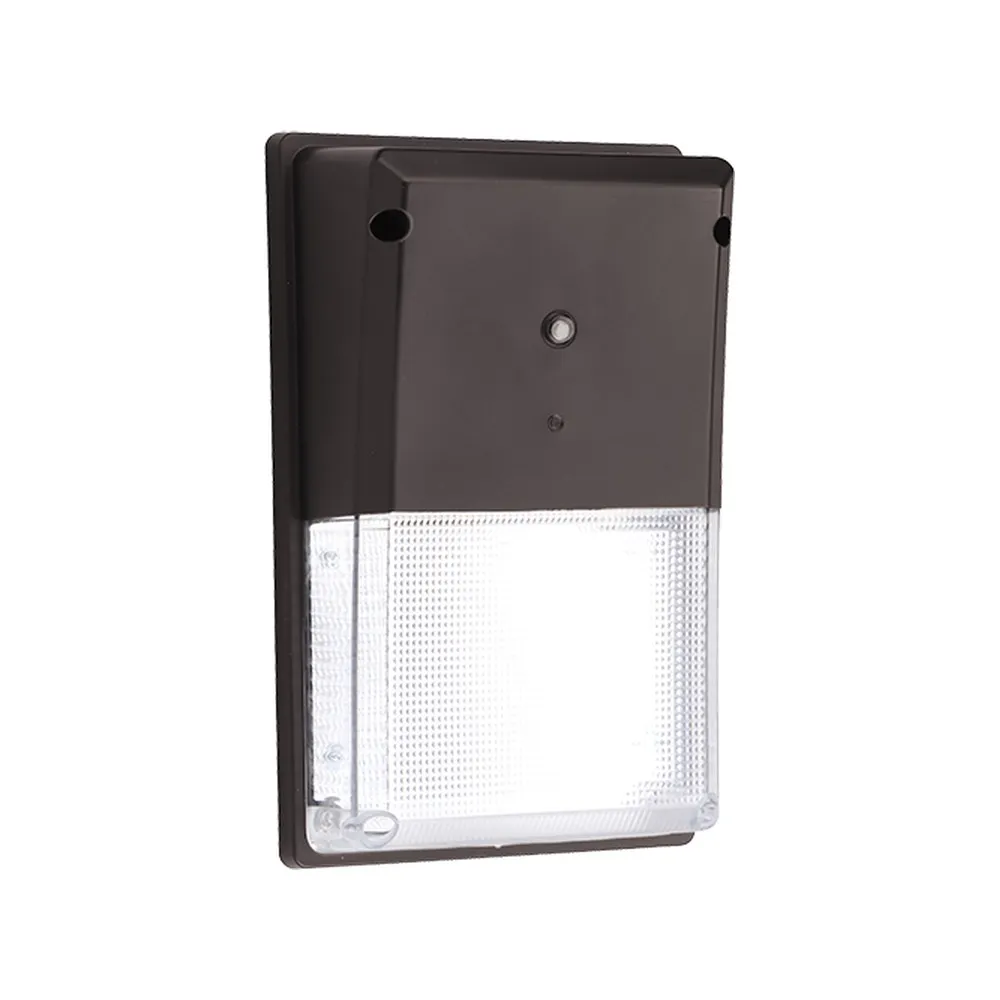

Built to take the weatherThe SSL-DW3 starts with a
pressure die cast aluminum housing, chosen for better thermal management: heat moves away from the LEDs instead of cooking them, which is exactly what keeps a fixture bright over the years. The optic is a
UV resistant glass cover, so it won't yellow or go hazy the way unprotected plastics can after a few summers of direct sun. The whole assembly is
IP65 wet location rated and holds an operating temperature range of -40˚C to +50˚C, which covers a January cold snap in Winnipeg just as comfortably as a July afternoon on a south-facing wall. The dark bronze finish is a classic choice for entries, blending with brick, aluminum trim and dark window frames.
Light quality and flexibilityThis is a
multi-wattage, multi-CCT doorway light, which means one box on the truck instead of six. Select 15W, 12W or 9W for 2100, 1680 or 1260 delivered lumens, and select between three field-selectable colour temperatures — 3000K, 4000K and 5000K — to suit a warm residential entrance, a neutral office door or a crisp, high-visibility service entry. Efficacy is rated at ≥140 lm/W and CRI is ≥80, so faces, signage and colours read naturally at the threshold, an asset where security cameras are watching the door. The fixture carries a 50,000 hour rating and a
DLC Premium listing (S-QKW6ZB), which matters when a project is chasing utility rebates or energy code compliance.
Electrical, controls and installationThe integrated
120-277V UNV LED driver handles the full range of common commercial and residential supplies, with the same -40˚C to +50˚C operating window as the housing. The fixture is compatible with
0-10V dimming and ships with the
photocell sensor option, so it runs dusk-to-dawn automatically with no timer to reset twice a year. Mounting is
surface mount onto the wall, straight over a standard outlet box above the door — a quick job for an electrician, typically one fixture in minutes. Position it above the door frame so the wide, forward-throw distribution lands on the landing and the first steps rather than in the eyes of anyone approaching.
Technical specificationsSKU: SSL-DW3/15S/MW/MK/UNV/PC/DB
Brand: TUROLIGHT
Wattage: 15-12-9W selectable
Delivered lumens: 2100-1680-1260 lm
CCT: 3000K / 4000K / 5000K field selectable
CRI: ≥80
Efficacy: ≥140 lm/W
Input voltage: 120-277V
Rated hours: 50,000
Controls: photocell, 0-10V dimming compatible
Rating: IP65, wet location
Operating temperature: -40˚C ~ +50˚C
Housing: pressure die cast aluminum, dark bronze
Optics: UV resistant glass cover
Mounting: surface
Dimensions: 8.7" x 5.4" x 2.8"
Warranty: 5 years
Applications, matching products and documentationThe manufacturer lists malls, hotels, industry and office complexes as target applications, and in real life that translates to condo and apartment entrances, school side doors, clinic and daycare exits, restaurant back doors, warehouse man-doors, garages, workshops and cottages. For a brighter version of the same body on a taller wall or a busier entrance, see the
SSL-DW3 doorway wallpack 20W-25W-30W, also available in
white and
black. To light the parking lot or the yard on the same building, the
standard wallpack 30W-40W-50W-60W and the
full cut-off wallpack 25W-40W-60W share the same selectable-wattage, 3CCT logic. The full
spec sheet for this model, with the dimensional drawing, polar candela curve and DLC information, is in the Documentation tab.
