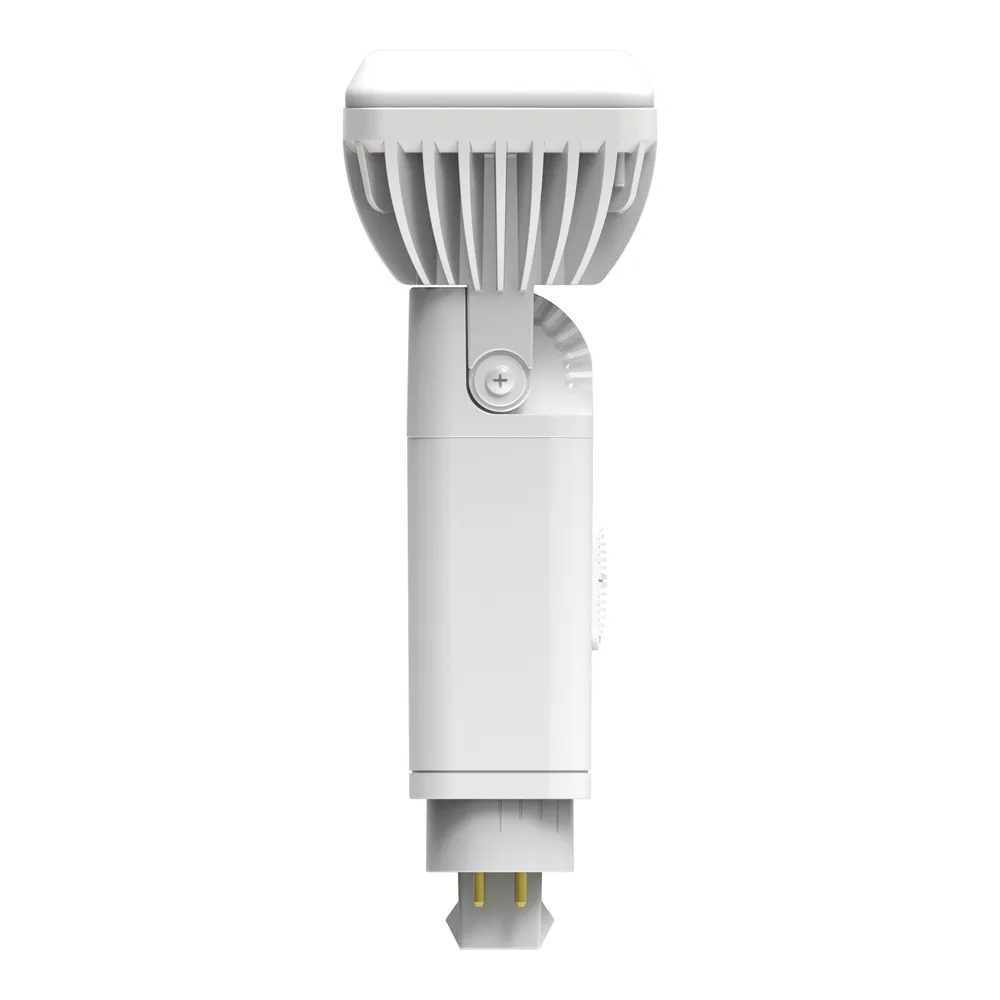

VIVID PL HYBRID (DF & BP) - 9W - 1100LM - 27-30-35-40-50K - DUAL ORIENTATION (HORIZONTAL & VERTICAL) - G24Q - 50,000HOURS

Name: VIVID PL HYBRID (DF & BP) - 9W - 1100LM - 27-30-35-40-50K - DUAL ORIENTATION (HORIZONTAL & VERTICAL) - G24Q - 50,000HOURS
Brand: TUROLIGHT
SKU: VIV-PL-HY-9W-5CCT-G24q-DUO
Price: 26.97 CAD
Availability: InStock

SKU: VIV-PL/HY/9W/5CCT/G24q/DUO

Brand: TUROLIGHT

Say goodbye to humming ballasts and dim, yellowing tubes: the TUROLIGHT VIVID PL HYBRID is the drop-in LED PL lamp that finally makes those old compact fluorescent cans, wall sconces and stairwell fixtures behave. People look for it as a PL retrofit lamp, a CFL replacement bulb, a G24q LED lamp or simply a "plug-and-play PL LED", and that is exactly what it is — a direct swap for 4-pin compact fluorescent lamps in downlights, vanity fixtures, wall packs, corridor luminaires and elevator lobbies. Its hybrid design means you decide how to wire it: leave the existing ballast in place for the fastest possible change-out, or bypass it for a clean line-voltage installation that removes one more part that can fail.

This lamp draws just 9W and delivers 1100 lumens with a wide 120° beam angle, so light spreads evenly instead of pooling in one bright spot. The 5CCT feature gives you five selectable colour temperatures (27/30/35/40/50) chosen right at the lamp, and the 80 CRI keeps skin tones, paint colours and merchandise looking natural. It runs on 120-277V, uses a G24q base, is cUL listed for damp locations, and is rated for 50,000 hours (L70) with an operating range of -20°C to +40°C. Note that this model is not dimmable. TUROLIGHT backs it with a 5-year limited warranty (sockets or ballasts older than 5 years must be replaced to qualify), and the SKU is VIV-PL/HY/9W/5CCT/G24q/DUO.

Where it shines: condo corridors, stairwells, hotel hallways, office washrooms, clinic waiting rooms, basement pot lights and older recessed cans in homes across Canada — anywhere a 4-pin PL socket is already installed and nobody wants to rip out the fixture. The DUO dual orientation design, with an extendable lamp body, a 90° rotatable base and a lamp head that adjusts 90°, lets you aim the light properly whether the socket sits horizontal or vertical, which is the usual headache in shallow downlights. Building your retrofit list? Round it out with matching Vivid lamps such as the LED bulb GU10 6.5W 3000K, the MR16 7W 4000K LED bulb or the Vivid G9 4W dimmable. Upgrade your PL sockets today and stop replacing tubes.

Built for real retrofit jobs
The VIVID PL HYBRID was designed around the one thing that slows down a PL lamp retrofit: the fixture you already own. Instead of a rigid stick that fights the reflector, this lamp uses an extendable lamp body with a 90° rotatable base and a lamp head that adjusts 90°, so the light engine can be positioned precisely in shallow cans, wall sconces, vanity boxes and corridor luminaires. That is the meaning of the DUO suffix in the code: dual orientation, horizontal and vertical mounting, one part number instead of two on your shelf.

Hybrid wiring: ballast-compatible or ballast bypass
The HY wiring configuration supports both Type A operation (running on the existing ballast — refer to the ballast compatibility list) and Type B operation (ballast bypass, wired to line voltage). Type A is the fastest route for occupied buildings: twist out the CFL, twist in the LED, done. Type B removes the ballast from the circuit entirely, which is what most contractors prefer when a ballast is near end of life or when a building is being re-lamped once and for good. The lamp accepts 120-277V, so the same SKU covers residential 120V panels and commercial 277V lighting circuits.

Light quality and output
At 9W the lamp produces 1100 lumens through a 120° beam angle, a wide distribution that fills corridors and washrooms without hot spots. The 5CCT selector gives five colour temperatures (27/30/35/40/50) so you can match warm residential spaces or cooler commercial and back-of-house areas from the same box, and 80 CRI renders finishes, uniforms and product displays cleanly. This model is not dimmable, so pair it with standard on/off or occupancy-sensor control rather than a dimmer.

Technical specifications
Ordering code: 1752253
Model number: VIV-PL/HY/9W/5CCT/G24q/DUO
Wattage: 9W
Initial lumens: 1100 lm
CCT: 27/30/35/40/50 (selectable, 5CCT)
CRI: 80
Base: G24q
Voltage: 120-277V
Beam angle: 120°
Hour rating: 50,000 hours (L70)
Location: cUL listed for damp locations
Dimmable: No
Operating temperature: -20°C to +40°C
Warranty: 5-year limited
Case quantity: 50

Applications, compatibility and documentation
Think condo and apartment corridors, stairwells and garages, hotel hallways, school washrooms, clinic and dental waiting rooms, retail fitting rooms, church vestibules and the recessed pot lights in older Canadian homes — every one of them full of 4-pin G24q sockets that cost time and money to re-lamp. The damp location listing and the -20°C to +40°C range also suit covered entries, unheated vestibules and parking structures. Anything with a G24q socket is a candidate; lamps with two-pin bases or other pin configurations are not. The full spec sheet with the dimensional drawing and the ordering guide is in the Documentation tab of this page. If you are re-lamping a whole building, the same Vivid family covers your other sockets: the LED bulb GU10 6.5W 4000K, the LED bulb G4 2.5W 4000K and the Vivid glass lens PAR20 dim-to-warm.
