M1 - 1 POWER LED DECK AND STEP LIGHT, 12V, 1W, WET LOCATION RATED, WARM WHITE 3000K

Name: M1 - 1 POWER LED DECK AND STEP LIGHT, 12V, 1W, WET LOCATION RATED, WARM WHITE 3000K
Brand: LUMENSTARLED
SKU: LS-RD12-1-3K
Price: 32.97 CAD
Availability: InStock

SKU: LS-RD12-1-3K

Brand: LUMENSTARLED

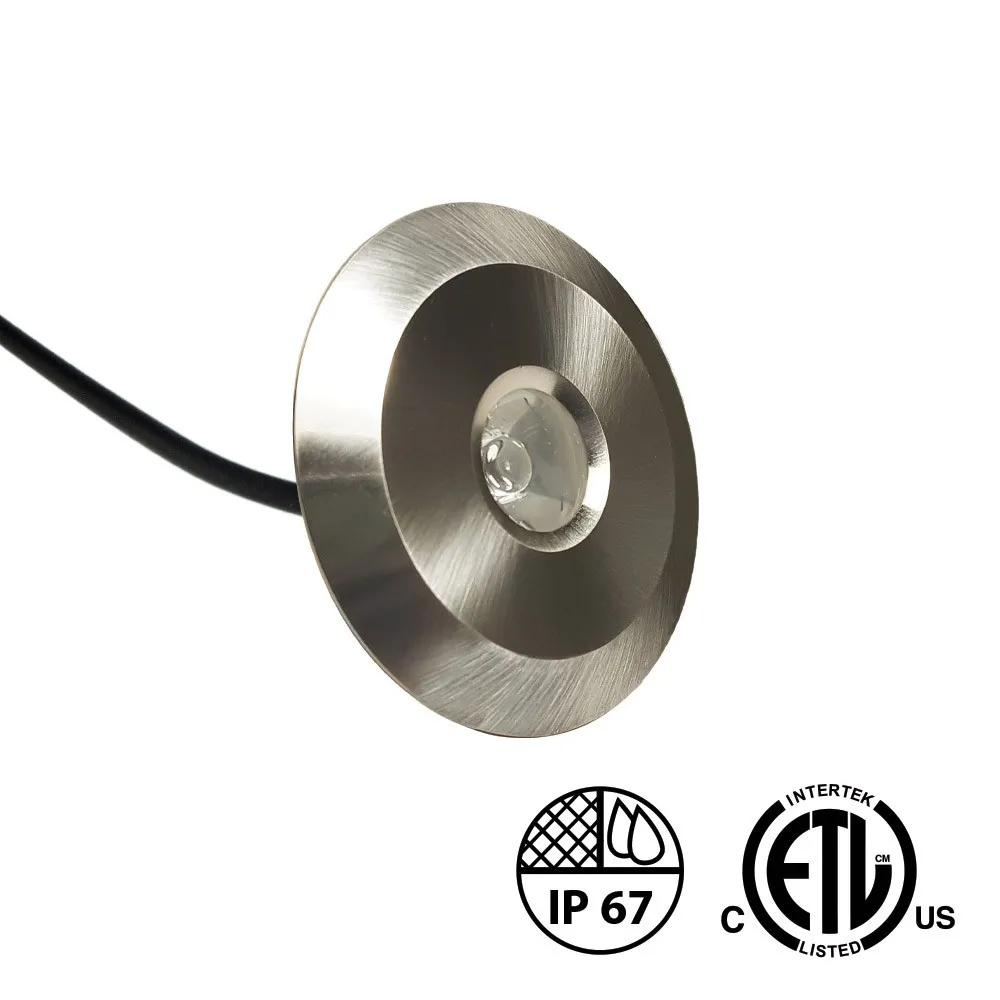

Turn every step, riser and deck board into a safe, beautifully lit surface with the M1 LED Deck & Step Light from LumenstarLED (SKU LS-RD12-1-3K). Call it a deck light, a step light, a stair light or simply one of those little LED landscape lights that make a backyard feel finished after dark — it's the same compact, recessed, low-voltage luminaire that contractors keep coming back to. It slips into a small cutout in wood, composite, stone or millwork and delivers a tidy pool of glare-controlled light exactly where feet land. Deck risers, garden stairs, retaining walls, porch columns, cabinets and display niches: this one little engine covers them all.

The numbers are honest and easy to work with. The M1 runs on 12V DC, draws only 1W and produces 95 lumens from a single COB LED, with a tight 45° beam that guides the eye instead of blinding it. Colour rendering is excellent at CRI above 90, so cedar, flagstone and composite decking keep their real tone under the warm 3000K white output. It is fully sealed to IP67, IC-rated for confined spaces, and holds up in operating temperatures from -20 to +45°C — real Canadian winter-to-summer range. It is dimmable with compatible low-voltage dimming systems, mounts by pressure-fit stainless steel clips into a Ø1 3/8" (35mm) cutout, comes with a 12" (30cm) lead wire, and is backed by a rated lifespan of over 50,000 hours and a 3-year warranty.

This is the fixture for backyard decks and pool surrounds, condo balconies, restaurant patios, hotel entries, basement stairwells and retail display shelving. Because the light engine ships without a trim, you choose the look: pair it with the 50mm metal round trim in black, the 40mm stainless steel round trim for coastal or poolside jobs, or the 40mm honeycomb trim in white to shade the source from seated eye level. Going into soil or pavers? Add the in-ground housing for RD12. Plan your run, pick your trim and light up your steps the right way.

Built to stay outside
The M1 is a compact low-voltage luminaire designed for step, deck, cabinet and display applications where you want the effect and not the fixture. The body is fully sealed and rated IP67, which means it shrugs off rain, snowmelt, irrigation spray and the wash-down of a restaurant patio. It is also IC-rated, so it can be installed safely in confined, enclosed spaces such as inside a stair stringer or a millwork cavity. Pressure-fit stainless steel clips hold it firmly in a recessed cutout, and an interchangeable frosted white diffuser lens is included so you can soften the source when the fixture sits close to eye level.

Light quality that flatters real materials
A single COB LED produces 95 lumens from just 1W, shaped into a controlled 45° beam. That narrow distribution is what keeps the light on the tread and off your guests' eyes. With CRI above 90, wood grain, stone texture and composite colour all read true instead of washing out, and the 3000K warm white tone keeps outdoor living areas relaxed and inviting. Rated for more than 50,000 hours, it is the kind of fixture you install once and forget about.

Technical specifications
SKU: LS-RD12-1-3K
Voltage: 12V DC
Wattage: 1W
Lumens: 95
Colour temperature: 3000K
Beam angle: 45°
Number of LEDs: 1 COB LED
CRI: >90
IP rating: 67
Operating temperature: -20~+45°C (-4~113°F)
Lifespan: +50,000 hours
Lead wire length: 12" (30cm)
Cutout: Ø1 3/8" (35mm)
Mounting: Recessed, pressure-fit clips
Dimmable: with compatible low-voltage dimming systems
Warranty: 3-year

Wiring, power and controls
Because it is a 12V DC low-voltage fixture, the M1 is friendly to install near moisture and easy to run in long series: at 1W each, a whole staircase can sit on one modest driver. Size your Class II power supply to the total load of the run, keep the outdoor connections sealed with gel-filled connectors, and use outdoor-rated wire for buried or exposed sections. For stairwells, the Controller Pro for staircase lighting adds smooth on/off and step-by-step sequencing with adjustable mode, brightness, delay time and speed. Dimming is possible with compatible low-voltage dimming systems.

Trims, accessories and documentation
The M1 light engine accepts interchangeable trims sold separately, so one fixture family covers every finish on a job. Choose the 40mm louver round trim in white to push light straight down on a riser, the 40mm honeycomb round trim to shield the source, or a stainless steel round trim for exposed poolside and lakeside installs. The optional frosted white diffuser lens softens the beam further, and the in-ground housing lets you drop the same engine into soil, gravel or a paver border. For smaller accents such as toe-kicks or shallow treads, the mini step and deck LED engine is a natural companion. The full technical PDF spec sheet for LS-RD12-1-3K is available in the Documentation tab, with dimensions, cutout details and the complete trim and accessory ordering codes.

Technical Files
