Slim, solid and complete

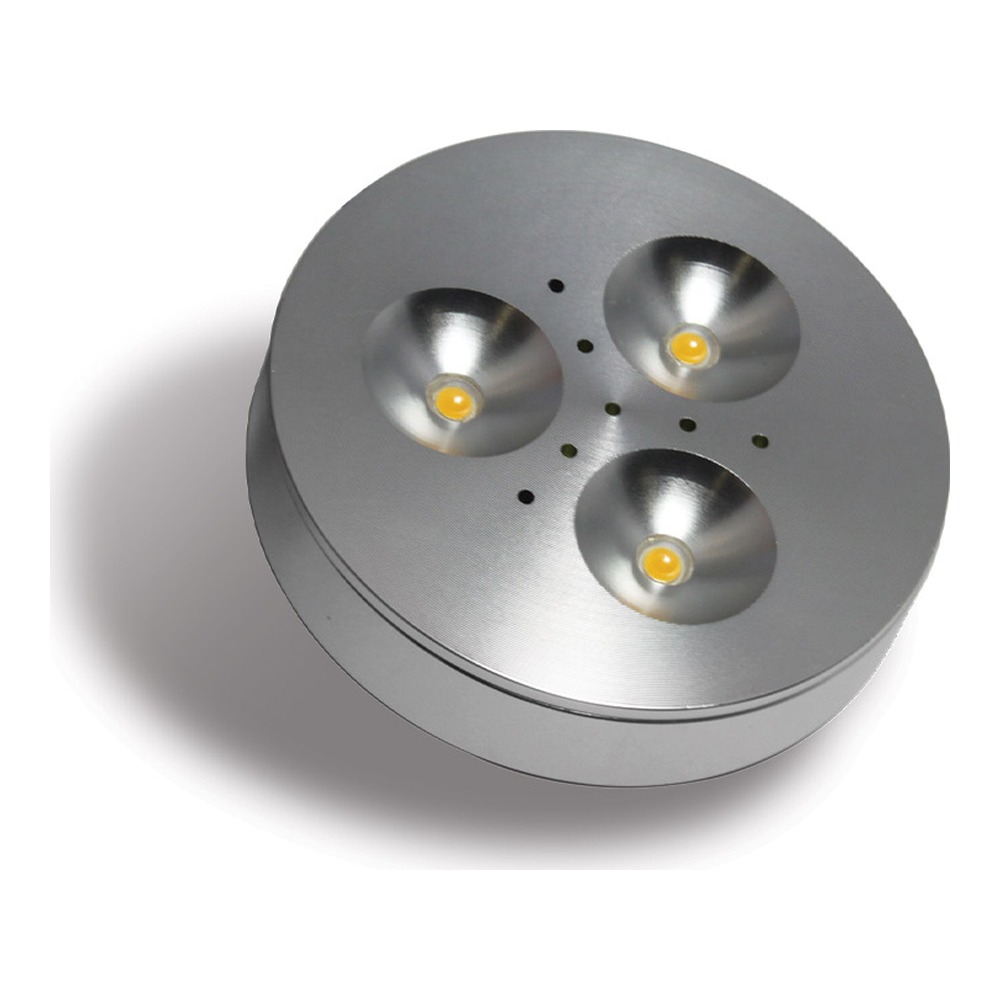

The RD15 is a complete LED puck light, ready to install: every unit includes the puck itself, a matching surface mount bezel and a 36 in (90 cm) wire lead, so you are covered for either mounting method. Its all-metal, ultra-thin aluminum housing is built for strength, and the brushed chrome face reads like fine cabinet hardware rather than a plastic gadget. The fixture is RoHS compliant and relies on power LED technology for crisp, efficient light from a very small footprint.
Warm, accurate light for real tasks
Three 1 W power LEDs combine for 3 W and 290 lumens, plenty for a prep zone, a sink or a coffee station without the glare of a bare bulb. The warm white 3000K colour temperature sits between candlelight and daylight: bright enough for chopping vegetables and reading recipes, gentle enough to leave on as ambient light all evening. With a CRI above 85, tomatoes look red, quartz looks like quartz and oak keeps its honey tones. Thanks to the 120° beam, neighbouring pucks blend into an even band of kitchen lighting, and because the RD15 is dimmable, it can drop to a soft glow for late-night snacks.
Surface or recessed installation
For the quickest job, fix the matching bezel under the cabinet and you get surface mount lighting with no cut-out required. For a built-in look, cut a Ø 2-1/2 in (63.5 mm) opening and mount the puck flush as a recessed puck light. The RD15 runs on 12 V DC, so it connects to a 12 V DC LED power supply rather than directly to household current: add up the wattage of every puck on the run, then add 10% to find the minimum power supply rating, as the buying guide recommends. Pick a dimmable supply when you want brightness control.
Ideas for the brushed chrome finish
Picture a row of pucks under the uppers of a white-and-stainless kitchen, a glass cabinet full of crystal stemware, a home bar where bottles glow on mirrored shelves, or a boutique counter where display lighting makes watches and jewellery sparkle. The spec sheet also lists furniture, RVs and yachts among its applications. The RD15 spec sheet and the LED cabinet puck light buying guide are in the Documentation tab to help you plan quantities and choose the right power supply.
Technical specifications
Finish: brushed chrome
Power: 3 W from 3 x 1 W power LEDs
Input: 12 V DC
Light output: 290 lumens
Colour temperature: 3000K warm white
CRI: above 85
Beam spread: 120°
Cut-out: Ø 2-1/2 in (63.5 mm)
Dimensions: Ø 2-3/4 x 9/16 in
Wire lead: 36 in (90 cm)
