Built for one job, and it does it perfectly

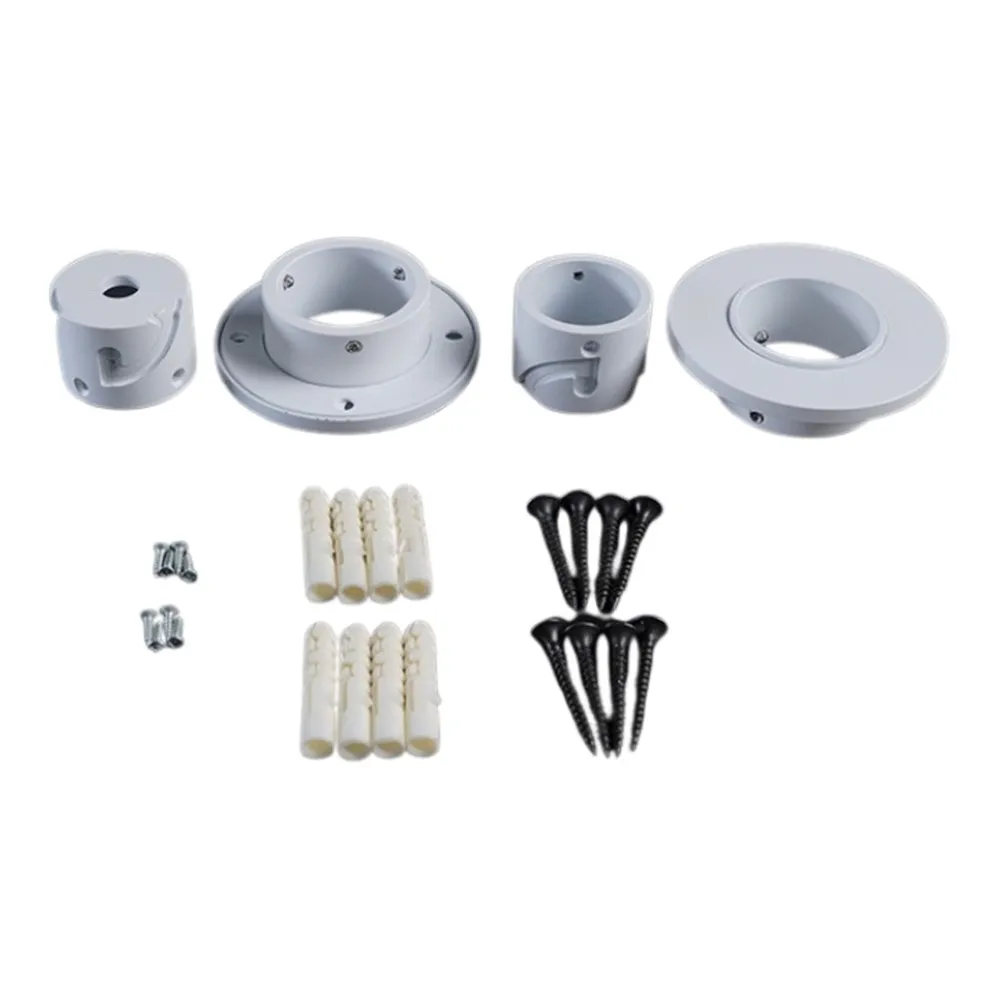

Accessories are what separate a good LED neon installation from a great one. The CANOLIGHT embedded kit with trim is a recessed mounting solution designed exclusively for the STNEON25 series of 360-degree neon LED flex. Rather than leaving the strip end exposed, clipped or taped to a surface, you recess it into the substrate and cap the opening with the supplied trim ring. The result is a fully integrated lighting effect: no visible brackets, no rough edges, no improvised silicone fix. It is the kind of detail an inspector, a client or a photographer notices immediately, which is exactly why designers and electrical contractors keep these in their kit.
Technical specifications
SKU: CL-ST-NEON25-360D-Embedded kit with trim
Brand: CANOLIGHT
Type: Embedded (recessed) mounting kit with trim ring
Overall size: Φ64 × H20 mm
Required mounting hole: Φ40 mm
Designed for: STNEON25 series 360° neon LED flex strip
Category: Neon accessories
Installation, step by step
Because the housing is only Φ64 × H20 mm, it needs very little depth behind the finished surface — a real advantage in ceiling plenums, shallow bulkheads and furniture panels. Mark your point, cut the Φ40 mm hole with a standard hole saw, confirm there is clear space behind for the strip and its cabling, then seat the kit and feed the STNEON25 flex through. Snap the trim ring on last so it covers the cut edge and leaves a neat circular border. Drywall, wood and plaster all accept the Φ40 mm bore cleanly; on brittle finishes, drill slowly and let the trim ring absorb any minor chipping at the perimeter. As with any neon flex work, plan your feed side, keep bend radius generous near the entry point, and do all low-voltage connections to the manufacturer's instructions and to the Canadian Electrical Code as applied by your local authority.
Light quality and why 360° matters
The STNEON25 strip this kit serves emits light through a full 360 degrees, so the tube glows uniformly rather than projecting a single flat face. Recessing the termination with this embedded kit keeps that glow continuous right up to the surface instead of ending in a visible cut or a clamp, which is what sells the illusion of a solid, sculptural line of light. In coves, reveals and feature walls, that uninterrupted finish is the whole point — the light appears to emerge from the architecture itself.
Where it earns its keep — and documentation
Think restaurant and bar interiors, hotel corridors, retail window displays and brand walls, gyms and salons, gaming rooms and home theatres, stairwell accents, custom millwork, headboards and kitchen island details. Anywhere an LED neon flex run must enter or exit a surface, this is the clean answer. For commercial punch lists and residential renovations alike, it standardizes a detail that is otherwise improvised on site, which means faster work and fewer callbacks. The technical PDF spec sheet for CL-ST-NEON25-360D-Embedded kit with trim is available in the Documentation tab — download it to confirm the Φ40 mm hole size and Φ64 × H20 mm envelope before you cut, and keep it with your shop drawings so every opening on the job is identical.
