Built around the neon, not around the bracket

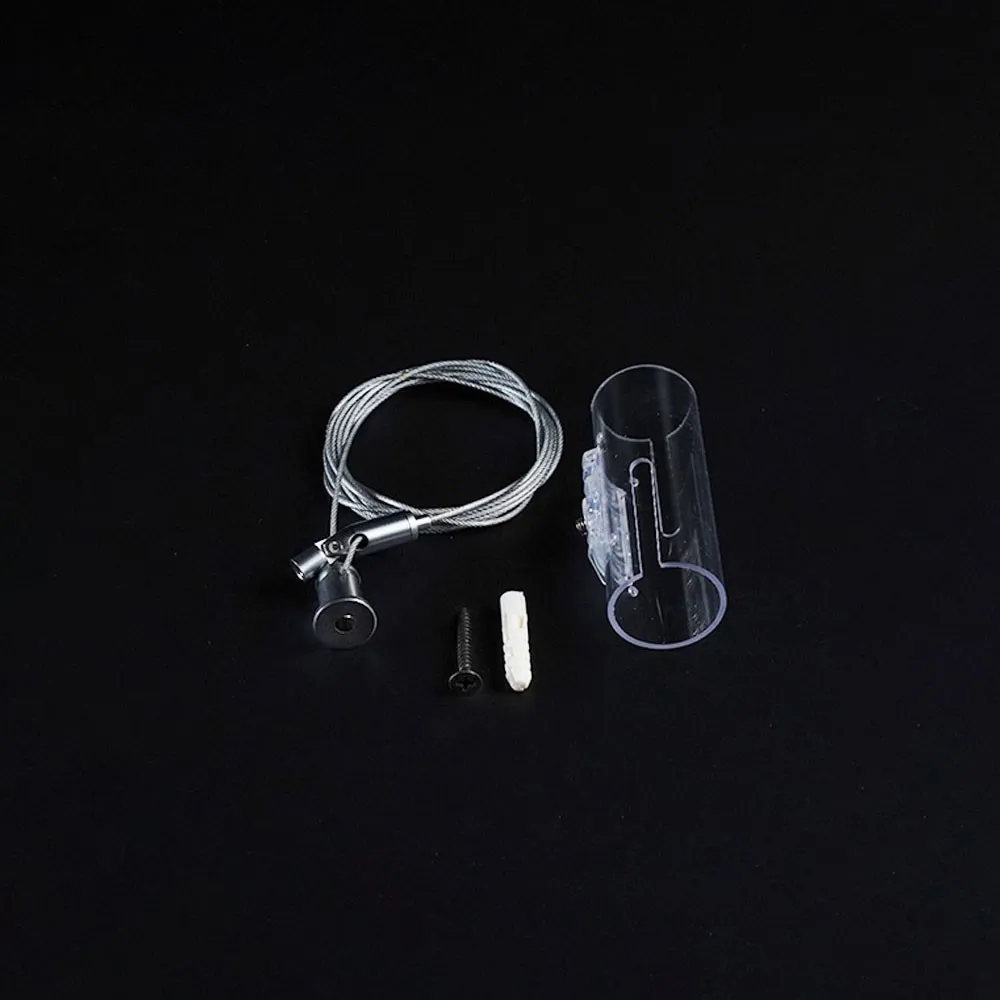

The whole point of a 360-degree neon tube is that it glows all the way around, so any mount that wraps it has to stay out of the way optically. That is exactly what this kit does: a cylindrical housing with a transparent coating, dimensioned Φ30 x H80 mm, that holds the tube at the suspension point while letting light pass straight through. No painted collar interrupting the line, no shadow band every few feet. With the fixture off, the clear body reads as a small glass-like detail rather than hardware, which keeps daytime sightlines clean in retail and hospitality interiors where the ceiling is part of the design.
Technical specifications
SKU: CL-ST-NEON25-360D-Horizontal pendant kit
Brand: CANOLIGHT
Type: Horizontal pendant (suspension) kit for 360° neon LED strip
Coating: Transparent
Size: Φ30 x H80 mm
Orientation: Horizontal suspension
Compatibility: Canolight NEON25 series 360° neon LED strips
Installation and electrical notes
This is a mounting accessory, not a light source: the kit carries and suspends the neon tube, while power, driver selection and dimming are handled by the neon strip system itself. Installation is straightforward for a qualified electrician or lighting installer — position the tube, secure it in the Φ30 mm housing, then suspend and level the run. Keep suspension points evenly spaced along the length so the tube stays perfectly straight; a sagging neon line is the one flaw the eye catches immediately. Plan your entry point and feed direction before you hang anything, and always follow Canadian Electrical Code practice and the neon manufacturer's bend radius and cutting instructions.
Where it works best
Think of every place a straight line of light can organize a room. A horizontal neon run over a restaurant bar or a coffee counter defines the service zone and doubles as ambient light. In a boutique or showroom, a suspended line above the display tables gives products a soft, flattering wash with no glare spots. Hotel lobbies, reception desks, gyms, barbershops, esthetics clinics and event spaces use the same trick to add architectural drama without recessing anything into the ceiling. At home, renovators hang these runs over kitchen islands, along basement ceilings, in home gyms and above staircases — anywhere a drop ceiling or exposed joist structure gives you a clean anchor point. Because the neon diffuser produces a continuous glow instead of individual dots, the effect stays premium even at eye level, where a cheap strip would show every LED.
Documentation and planning
The technical PDF spec sheet for the CL-ST-NEON25-360D horizontal pendant kit is available in the Documentation tab of this page — download it for the housing dimensions and mounting details before you finalize your layout. When you are quoting a project, count one kit per suspension point rather than one per run, and order the neon tubing, end caps, connectors and power supply from the same NEON25 series so everything indexes together. That small bit of planning is the difference between a neon feature that looks custom-built and one that looks improvised.
