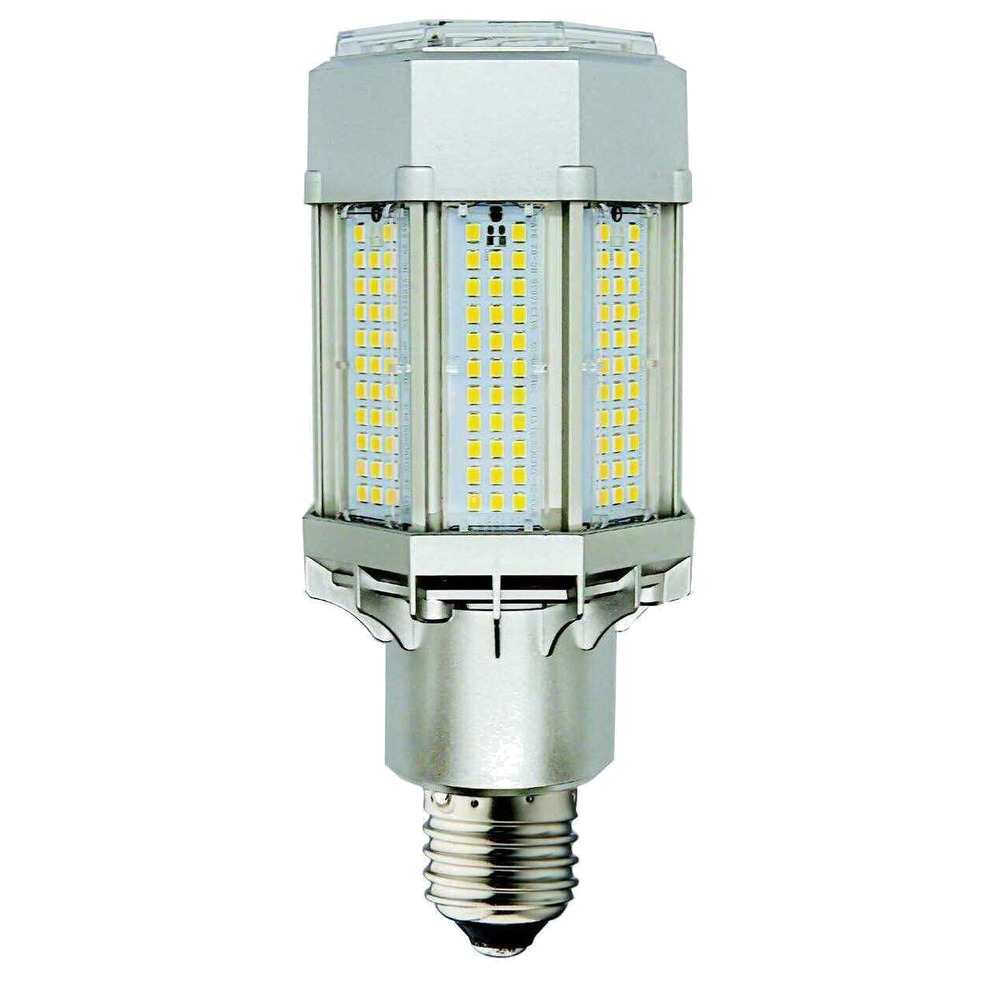

35W POST TOP RETROFIT - REPLACES UP TO 175W HID - E26 - 3000K 347 -LED-8033E30C-G7

Name: 35W POST TOP RETROFIT - REPLACES UP TO 175W HID - E26 - 3000K 347 -LED-8033E30C-G7
Brand: LIGHT EFFICIENT DESIGN
SKU: LED-8033E30C-G7
Price: 72.99 CAD
Availability: InStock

SKU: LED-8033E30C-G7

Brand: LIGHT EFFICIENT DESIGN

Give tired old post top fixtures a second life without touching the pole, the wiring or the acorn globe. The 35W LED post top retrofit from LIGHT EFFICIENT DESIGN, SKU LED-8033E30C-G7, simply screws into the existing socket the way a bulb does — no rewiring, no new housing, no crane budget. People look for it under a lot of names: LED retrofit lamp, post top LED corn-style retrofit, HID replacement bulb, screw-in retrofit kit or "lighting retrofit" for streetscapes. Whatever you call it, the job is the same: pull out the old 175W HID lamp and ballast feed, screw in the LED, and get clean, modern 3000K light over walkways, parking lots, municipal streets, campus paths and condo grounds.

This is the 347V version built for Canadian commercial and municipal services, and it also works on 208V and 240V. It draws just 35W while replacing up to 175W HID, delivers 5140 lumens at a warm, welcoming 3000K colour temperature with 80+ CRI, and fits a standard E26 medium base socket. The 360° design lets you install it base down, base up or base sideways with no loss of performance, and an active cooling fan with dynamic temperature control keeps output steady through a 50,000-hour L70 rated life. Drivers are potted, pre-tested and burnt in three times before shipping, protected against vibration and moisture, and backed by dual-stage MOV protection with integrated 6kA surge protection. Operating range runs from -40°F to 122°F, and a switch on the side of the lamp lets you drop to 50% ("LO") for stepped dimming. Compact at 7.8" tall and 3.4" wide, it slips inside most acorn and lantern-style post tops and enclosed damp-location fixtures, with sealing against insects and dust.

It's a natural fit for town main streets, park pathways, strip mall and church parking lots, hotel driveways, apartment and condo grounds — anywhere the poles are fine but the HID lamps keep failing and eating energy. Canadian winters are exactly what its -40°F cold start and moisture-protected driver were designed for. Need a different look or voltage? The same lamp is offered in 120-277V as 35W post top retrofit E26 3000K 120-277V, in cooler light as 35W post top retrofit E26 4000K and 35W post top retrofit E26 5000K, or with a mogul base as 35W post top retrofit EX39 3000K. Check your socket and voltage, then upgrade your poles one lamp at a time.

Built for real outdoor duty
The LED 8033E-G7 platform was engineered for the hardest place a retrofit lamp can live: sealed inside a post top globe, in the weather, on a vibrating pole. Its drivers are potted and pre-tested, burnt in three times prior to shipping, and protected against vibration and moisture. The lamp body measures 7.8" tall by 3.4" in diameter, a compact envelope that tucks into most acorn, lantern and dome-style post top fixtures without fouling the globe or the refractor. It is expertly engineered to work efficiently in enclosed fixtures and damp environments, and it is protected against insects and dust — the two things that quietly kill open HID retrofits.

Light quality and thermal management
At 3000K, this lamp produces a warm white that flatters brick, stone and landscaping and keeps a heritage streetscape feeling like a heritage streetscape instead of a parking garage. With 80+ CRI, faces, signage and vehicle colours read accurately at night, which matters for security cameras as much as for comfort. Output is 5140 lumens from only 35W, in place of a 175W HID lamp. Holding that output over time is the job of the Advanced Active Cooling system: an energetic cooling fan paired with dynamic temperature control that supports a longer, brighter life and underpins the 50,000-hour L70 rated life.

Electrical, dimming and installation
This SKU is the 347V option built for Canadian services, and it also works on 208V and 240V. Installation is genuinely lamp-simple: de-energize the fixture, remove the old HID lamp, bypass or remove the ballast as required by the fixture and local code, then thread the retrofit into the existing E26 medium base socket. Multi-directional mounting means you can install base down, base up or base sideways without affecting performance, so odd legacy sockets are no obstacle. A switch on the side of the lamp selects "LO" to dim to 50% (stepped dimming with other wired control communication by the onboard switch). Dual stage MOV protection with an integrated 6kA surge rating guards against line transients, and the LED driver is USA designed and specified. Operating temperature range is -40°F to 122°F.

Technical specifications
Part #: LED-8033E30C-G7
Brand: LIGHT EFFICIENT DESIGN
Wattage: 35W
Replaces: up to 175W HID
Lumens: 5140
Colour temperature: 3000K
CRI: 80+
Base: E26
Voltage: 347V (also works on 208V & 240V)
Dimming: dim to 50% via onboard "LO" switch
Surge protection: dual stage MOV, integrated 6kA
Rated life: 50,000 hrs L70
Operating temperature: -40°F to 122°F
Dimensions: 7.8" x 3.4"

Applications, alternatives and documentation
Think municipal main streets and village cores, park and riverwalk pathways, school and campus walkways, church and strip mall parking lots, hotel entrances, cemeteries, condo and apartment grounds — every place with good poles and bad lamps. Crews typically relamp a whole street in an evening because nothing is cut, drilled or rewired. If your service is standard line voltage, choose the 35W post top retrofit E26 3000K 120-277V; for a crisper, whiter look use 35W post top retrofit E26 5000K; for mogul sockets, the 35W post top retrofit EX39 3000K is the same lamp with an EX39 base. Doing the wall packs and shoe boxes on the same site? The 50W shoe box / wall pack retrofit E26 347V keeps the whole property on the same retrofit strategy. Full details, the ordering table and the complete family listing are in the technical PDF (FICHE TECHNIQUE LED 8033) available in the Documentation tab.

Technical Files
