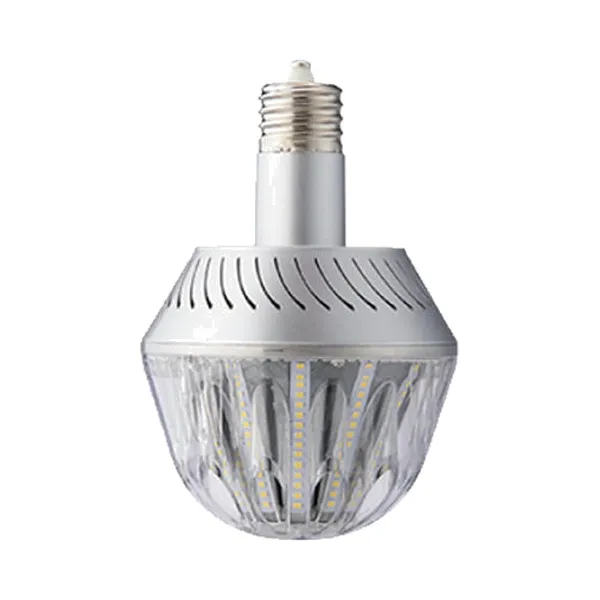

    75W PARKING GARAGE RETROFIT, REPLACES UP TO 250W HID, EX39, 5000K 120-277V -LED-8057M50CD-A
    75W PARKING GARAGE RETROFIT, REPLACES UP TO 250W HID, EX39, 5000K 120-277V -LED-8057M50CD-A

    75W PARKING GARAGE RETROFIT, REPLACES UP TO 250W HID, EX39, 5000K 120-277V -LED-8057M50CD-A

    SKU: LED-8057M50CD-A

    Brand: LIGHT EFFICIENT DESIGN

    Give your parkade the daylight it has been missing — without touching a single wire. The LED-8057M50CD-A from Light Efficient Design is a 75W parking garage LED retrofit lamp, also called a screw-in low bay retrofit, HID replacement lamp or LED retrofit bulb, made to drop straight into the existing mogul socket of tired metal halide and high-pressure sodium fixtures. If your maintenance crew is still changing HID lamps in an underground parkade, a covered lot, a service corridor or a storage area, this is the simple, one-person upgrade that ends that cycle.

    This model replaces up to 250W HID while drawing only 75W, and delivers 9236 lumens at 5000K — a crisp daylight white that makes stalls, signage and pedestrians pop in windowless structures. The EX39 mogul base threads directly into most legacy low bay sockets, and the lamp runs on 120-277V (this CD version also works on 347V, the voltage found in so many Canadian commercial buildings). Angled LED panels spread a 120° distribution to put light where it is needed, the driver is pretested and potted against vibration and moisture, and the housing resists insects and dust. It is rated for enclosed fixtures and damp locations, carries 80+ CRI, operates from -40°F to 122°F, includes surge protection and an L70 rated life of 50,000 hours. It is continuously dimmable down to 20% with a wired 0-10V circuit, and even offers 12V auxiliary power for sensors. DLC code: S-E2VZ57.

    Parking structures, parkades under condo towers, hospital and campus garages, municipal lots, loading docks and low-ceiling service areas all benefit from the switch — less heat, fewer lamp changes, better footage for security cameras through long Canadian winters. Need the same lamp in a warmer neutral white? Look at the 75W parking garage retrofit 4000K, or step down to the 45W EX39 retrofit replacing 175W HID for smaller fixtures. Check the spec sheet in the Documentation tab and modernize your garage this season.

    205.99$

    Built for the realities of a parking garage
    Parking structures are hard on lighting: vibration from traffic overhead, damp air, road salt season, dust and insects finding their way into every enclosed lens. The LED-8057M50CD-A was engineered around that. Its driver is pretested and potted, so it is protected against vibration and moisture, and the housing is insect and dust resistant. The lamp is rated for enclosed fixtures and damp location, which means you can reuse the existing gasketed low bay or garage fixture instead of replacing it. Active cooling keeps thermals in check, and the lamp operates from -40°F to 122°F — an important detail for unheated parkades and covered lots across the country.

    Light quality that people and cameras notice
    With 9236 lumens at 5000K and 80+ CRI, this HID replacement lamp gives a clean daylight-white wash that reads as bright and safe in spaces with no natural light. The angled LED panels create a 120° light distribution that pushes light down and outward across drive aisles and stalls rather than trapping it in the fixture bowl. Uniform, flicker-conscious LED illumination also helps surveillance systems capture usable footage of plates and faces, a real concern for property managers and condo boards.

    Technical specifications
    Part number: LED-8057M50CD-A
    Brand: Light Efficient Design
    Replaces: up to 250W HID
    Wattage: 75W
    Lumens: 9236
    Colour temperature: 5000K
    CRI: 80+
    Base: EX39 mogul
    Voltage: 120-277V, also works on 347V
    Light distribution: 120°
    Dimming: continuously dimmable to 20% with a wired 0-10V circuit
    Auxiliary power: 12V for sensors
    Rated life: 50,000 hrs L70
    Operating temperature: -40°F to 122°F
    Location: damp location, rated for enclosed fixtures
    Surge protection: included
    UPC: 844006077402
    DLC code: S-E2VZ57

    Installation and electrical notes
    The EX39 mogul base screws into the same socket your metal halide or high-pressure sodium lamp used, which keeps labour short and ladders off the floor faster. Because the lamp accepts 120-277V and also works on 347V, one part number covers multi-site portfolios running 120V, 208V, 240V, 277V or Canadian 347V service. For dimming or occupancy control, run a 0-10V circuit to the lamp: it dims continuously down to 20%, and the built-in 12V auxiliary output can power a sensor — ideal for garages where you want full light on approach and reduced output overnight. Existing ballast handling must follow the manufacturer's instructions on the spec sheet and your local electrical code; have a licensed electrician confirm the configuration.

    Applications, companions and documentation
    Think underground condo parkades, hospital and university garages, municipal and airport lots, covered loading docks, warehouse low bays and equipment rooms with low ceilings. For fixtures that only need 175W HID equivalence, the 45W EX39 5000K retrofit and the 45W E26 5000K retrofit share the same family and finish the job with a consistent look; outdoors, the 80W shoe box and wall pack retrofit covers the entrance ramp and surface parking. The full technical PDF for the LED 8056 / 8057 series is in the Documentation tab with the complete ordering table, dimensions drawing and DLC codes.
