35W POST TOP RETROFIT - REPLACES UP TO 175W HID - EX39 - 4000K 120-277V -LED-8033M40-G7

Name: 35W POST TOP RETROFIT - REPLACES UP TO 175W HID - EX39 - 4000K 120-277V -LED-8033M40-G7
Brand: LIGHT EFFICIENT DESIGN
SKU: LED-8033M40-G7
Price: 68.99 CAD
Availability: InStock

SKU: LED-8033M40-G7

Brand: LIGHT EFFICIENT DESIGN

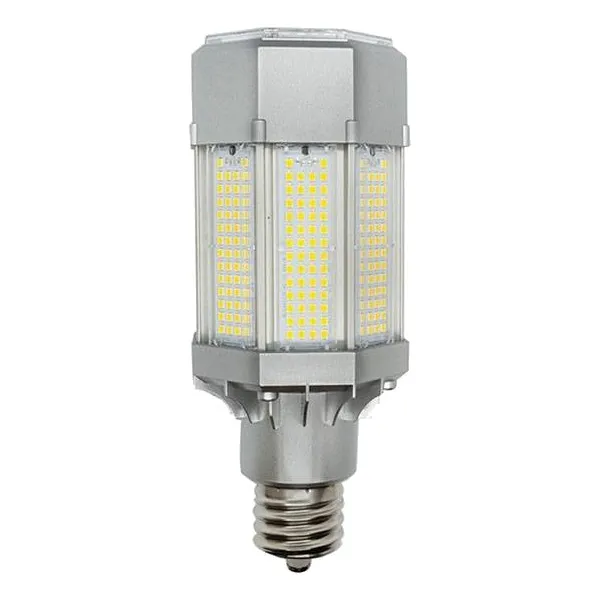

Bring an old post top lantern back to life without touching the pole, the wiring or the fixture head. The 35W POST TOP RETROFIT from LIGHT EFFICIENT DESIGN, SKU LED-8033M40-G7, is the screw-in LED corn bulb people also call an HID retrofit lamp, post top LED replacement or mogul base LED retrofit. It threads straight into the existing socket of a decorative acorn, shoebox-style or garden post top luminaire and replaces up to 175W HID — metal halide or high-pressure sodium — with a fraction of the energy draw, up to 80% less than the old technology. Perfect for pathways, parking areas, condo entrances, campuses and commercial properties that still run tired, buzzing HID gear.

This lamp draws only 35W and delivers 5290 lumens at a neutral 4000K colour temperature, the sweet spot between warm comfort and crisp visibility outdoors. The 80+ CRI keeps colours, signage and vehicles looking natural at night. It runs on 120-277V and also works on 208V and 240V, with an EX39 mogul base and medium + mogul base install method. Rated life is 50,000 hours (L70), with an operating range of -40°F to 122°F, dual stage MOV protection with integrated 6kA surge protection, and a USA designed and specified LED driver. You can dim to 50% by flipping the switch on the side of the lamp to "LO". Dimensions: 7.2" tall by 3.4" wide for the 8033M-G7 body. DLC code: P8VK9R0E.

From a municipal walkway in Québec to a strip mall parking lot in Ontario, this retrofit shines wherever HID lamps keep failing and Canadian winters push equipment hard — the -40°F to 122°F range and active cooling design were made for that reality. It fits any fixture using an EX39 mogul socket, and can be mounted base down, base up or sideways thanks to its 360° multi-directional design. Prefer another colour? See the 35W post top retrofit EX39 3000K or the 35W post top retrofit EX39 5000K. Upgrade your posts today and stop paying to light the night the expensive way.

Built to survive outdoors
This post top LED retrofit is engineered for the real world of outdoor lighting. Advanced Active Cooling uses an energetic cooling fan with dynamic temperature control to keep junction temperatures down, which supports a longer, brighter life instead of the slow lumen fade you get from passively cooled corn lamps. The drivers are pretested, potted and burnt in three times before shipping, then protected against vibration and moisture — exactly what a lantern head on a windy parking lot pole demands. The lamp is also engineered to work efficiently in enclosed fixtures and damp environments while staying protected against insects and dust, so you can close the acorn globe and forget about it.

Light quality and output
At 35W this lamp produces 5290 lumens of neutral white 4000K light with 80+ CRI, replacing up to 175W HID. The 360° design spreads light all around the fixture the way an HID arc tube used to, so your existing reflector and globe keep doing their job and you avoid dark spots on walkways. Neutral 4000K reads as clean and modern without the blue cast some people dislike at residential entrances, and it is the most requested colour for parking, pathway and property-line lighting in Canada.

Electrical, dimming and installation
Installation is simple: kill the power, unscrew the old HID lamp, screw in the retrofit and confirm the ballast is bypassed per the manufacturer's instructions. The EX39 mogul base matches most commercial post top and HID sockets, and the multi-directional mounting capability means base down, base up or base sideways all perform the same. The wide 120-277V input also works on 208V and 240V, and a stepped dimming feature lets you drop to 50% output by selecting "LO" on the switch located on the side of the lamp (stepped dimming with other wired control communication by the onboard switch). Dual stage MOV protection with integrated 6kA surge protection guards against the voltage spikes common on exterior circuits.

Technical specifications
Part #: LED-8033M40-G7
Brand: LIGHT EFFICIENT DESIGN
Wattage: 35W
Replaces: 175W HID
Lumens: 5290
Colour temperature: 4000K
CRI: 80+
Base: EX39
Voltage: 120-277V (also works on 208V & 240V)
Dimming: to 50% via onboard "LO" switch
Rated life: 50,000 hrs L70
Operating temperature: -40°F to 122°F
Surge protection: dual stage MOV with integrated 6kA
Dimensions (8033M-G7): 7.2" x 3.4"
DLC code: P8VK9R0E
UPC: 844006077228

Applications, matching products and documentation
Think condo and apartment walkways, church and school grounds, municipal parks, small business parking lots, marina promenades and heritage-style street lanterns where the fixture is worth keeping but the HID lamp is not. Need the same lamp with a medium base instead? Go with the 35W post top retrofit E26 4000K. For wall packs and shoebox heads on the same property, keep the look consistent with the 30W shoe box / wall pack retrofit EX39 or the 80W shoe box / wall pack retrofit EX39. The full technical PDF (FICHE TECHNIQUE LED 8033) is in the Documentation tab with the complete ordering table, dimensions and 347V options for Canada.
