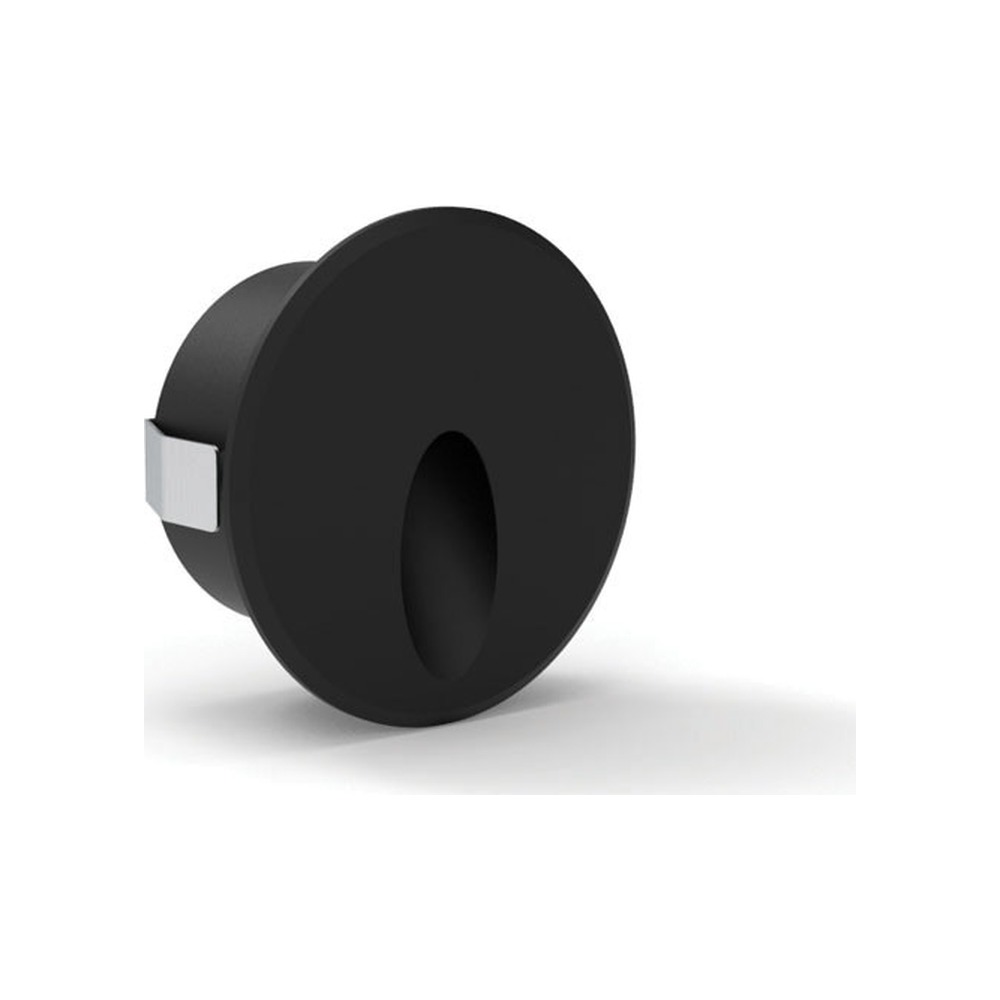

ROUND STEP LIGHT 3W/24VDC DIA 50X27MM, SMD3535, 80LM/W, TRIAC DIMMABLE DAMP LOCATION 4K BLACK

Name: ROUND STEP LIGHT 3W/24VDC DIA 50X27MM, SMD3535, 80LM/W, TRIAC DIMMABLE DAMP LOCATION 4K BLACK
Brand: CANOLIGHT
SKU: CL-STEP1-R-4K-BL
Price: 18.97 CAD
Availability: InStock

SKU: CL-STEP1-R-4K-BL

Brand: CANOLIGHT

Give your stairs, decks and pathways that quiet, high-end glow that says a professional was here. The Canolight round step light — also called a stair light, riser light, deck light or recessed wall puck — is a compact low-voltage fixture made to be buried right into a riser, a wall panel, a stone pillar or a deck skirt, so all you see is a soft wash of light on the tread below. It answers the two things people really want when they shop for LED landscape lighting and LED deck lights: safety after dark, and a clean architectural look with no glare in the eyes. The model here is the CL-STEP1-R-4K-BL, the round black version in 4000K neutral white.

Under the hood it runs on SMD3535 LED chips, a chip family known for high flux density and steady thermal behaviour in a very small body. Power draw is 3W for 240 lumens at an efficacy of 80 lm/W — plenty of punch to define a step edge without turning your staircase into a runway. It operates on 24VDC, so it drops straight into low-voltage architectural systems fed by an LED driver, and it is TRIAC dimmable for smooth, flicker-free control from a standard compatible dimmer. The 4000K colour temperature gives a crisp neutral white that reads surfaces and edges clearly, the damp location rating covers humid and covered spots, and the black finish disappears against dark trim, concrete and modern material palettes. Dimensions are a discreet 50 mm diameter by 27 mm deep.

This little fixture earns its keep on interior stairwells, basement staircases, covered porches, condo corridors, hotel and restaurant entrances, spa and pool surrounds, retaining walls and deck perimeters — anywhere a Canadian homeowner or contractor needs guidance light that survives humidity and long winters under a roof overhang. Want the same fixture in a warmer tone or a lighter finish? Compare it with the round step light 3000K black, the round step light 4000K white or the round step light 3000K white. Plan your run, count your steps and light the way.

Built small, built to disappear
The whole idea behind this round recessed step light is discretion. With a 50 mm diameter face and only 27 mm of depth, it slips into a riser, a wall cavity, a deck fascia or a masonry pillar without demanding a deep pocket behind the finished surface — a real advantage when you are working around stair stringers, framing members or a thin panel. The black finish keeps the fixture visually quiet during the day, blending into dark cladding, charcoal trim, concrete and contemporary palettes, then coming to life at night as a low band of light across the tread.

Light quality you can actually live with
The SMD3535 LED package is chosen for its high flux density and dependable thermal performance in compact housings, which is exactly what a sealed little step fixture needs. Output is 240 lumens from a 3W draw, an efficacy of 80 lm/W, and the beam is aimed at the walking surface rather than at eye level. The 4000K neutral white colour temperature renders stone, wood and concrete crisply and makes step edges easy to read — the tone most people choose for safety-driven stair, corridor and pathway lighting. If you prefer a cosier, more residential feel, the 3000K version of the same body is available.

Technical specifications
SKU: CL-STEP1-R-4K-BL
Brand: CANOLIGHT
Model family: CL-STEP1-R
Power: 3W
Lumen output: 240lm
Efficacy: 80LM/W
LED type: SMD3535
Colour temperature: 4000K
Voltage: 24VDC
Dimming: TRIAC dimmable
Location rating: Damp location
Dimensions: DIA 50 x 27 mm
Finish: Black

Wiring, dimming and installation
Because it runs on 24VDC, this step light belongs to a low-voltage lighting system: you feed it from a 24V DC LED driver or power supply sized for the total wattage of the run, then branch out to each fixture. Keep the driver accessible in a dry, ventilated spot, respect polarity at every connection, and use properly rated connectors or junction boxes at each step. For control, the fixture is TRIAC dimmable, so pair it with a TRIAC-compatible 24V driver and a standard compatible wall dimmer for smooth, quiet dimming without flicker. On a staircase, mount the fixtures at a consistent height and spacing from step to step — the rhythm of identical points of light is what makes a stair run look designed rather than improvised. Always follow the Canadian Electrical Code and your local requirements, and have an electrician handle the line-voltage side.

Where it works, and what pairs with it
Its damp location rating opens the door to covered outdoor spaces — porches, verandas, roofed entryways, balconies protected from direct weather — as well as humid interiors such as bathrooms, spa rooms and pool surrounds, plus all the classic dry applications: basement stairs, lofts, condo corridors, hotel lobbies, restaurant entrances, retail stairwells. Mixing finishes and tones on one project is easy: the 4000K white version suits pale walls, while the 3000K black and 3000K white models deliver a warmer glow for residential projects. The technical PDF for the CL-STEP1-R series is in the Documentation tab — download it before you cut your openings and order your driver.
