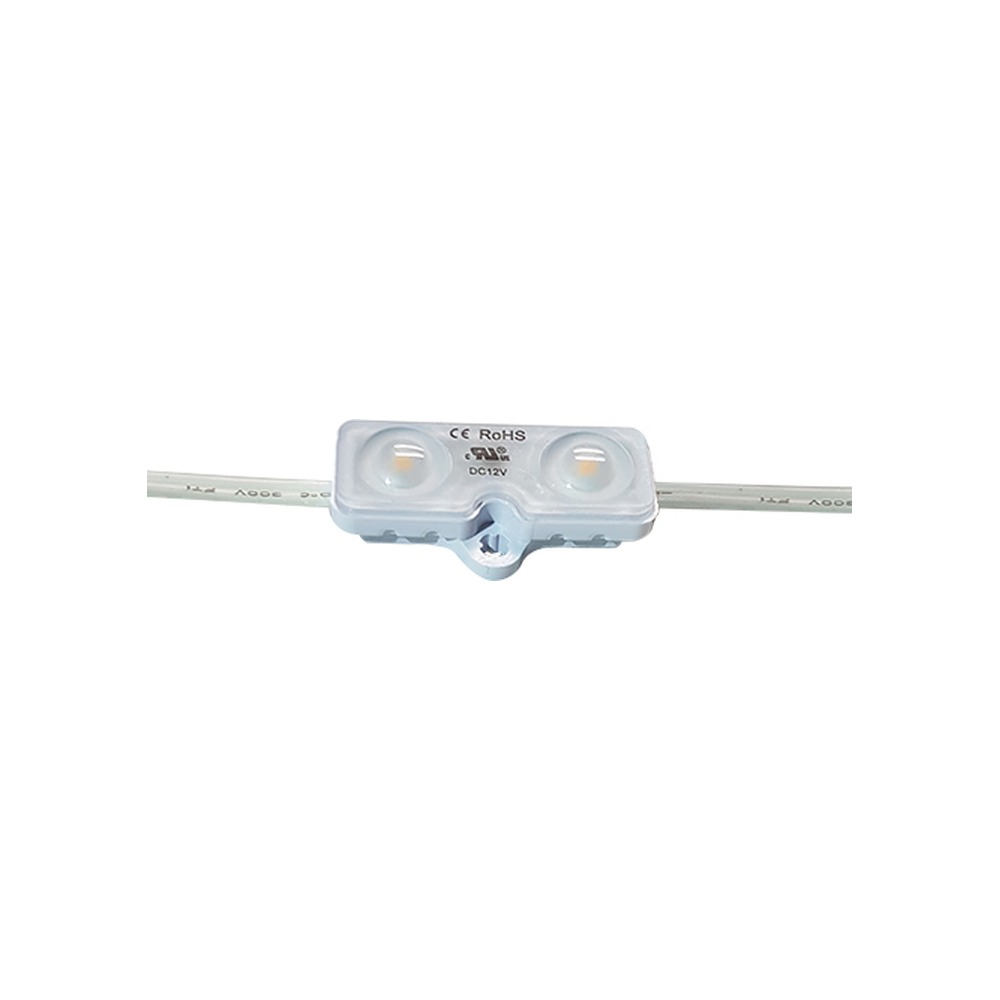

    LED SIGN MODS - 2 LED, 12V DC, 25 MODS/STRING (12.5'), 0.66W/MOD, 55 LUMENS/MOD, 6000K
    LED SIGN MODS - 2 LED, 12V DC, 25 MODS/STRING (12.5'), 0.66W/MOD, 55 LUMENS/MOD, 6000K

    LED SIGN MODS - 2 LED, 12V DC, 25 MODS/STRING (12.5'), 0.66W/MOD, 55 LUMENS/MOD, 6000K

    SKU: LS-LM-2-6K

    Brand: LUMENSTARLED

    Give your next LED sign the crisp, even glow that stops people in their tracks. The LUMENSTARLED LS-LM-2-6K is a string of LED sign modules built to backlight channel letters, LED light box signs, lit cabinets and storefront displays. Each string carries 25 compact modules over 12.5 feet, ready to be laid out inside a letter or a box to replace tired fluorescent tubes or old neon, and to build a bright LED business sign from scratch. The modular format also makes repairs simple: replace one string instead of rebuilding the whole sign.

    Every module holds 2 LEDs behind an integrated lens and draws only 0.66W at 12V DC, so the full string of 25 modules uses about 16.5W while each module delivers 55 lumens. The 6000K cool white colour gives sharp contrast on white acrylic faces and vivid colour films, and the 140º spread lets light fill the cabinet without hot spots. The modules are small (39 x 15 x 11 mm), outdoor rated IP66, RoHS compliant, rated for 65,000+ hours and backed by a 5 year warranty. They mount with the adhesive tape on the back or with the screw tabs.

    Sign shops, electrical contractors and business owners across Canada use these modules for restaurant and retail signs, pylon cabinets, menu boards and illuminated sign equipment that must run from dusk to dawn through cold winters. Power the string with a 12V DC constant voltage supply such as the 60W 12V outdoor power supply or, for larger signs, the 150W 12V outdoor power supply. Add them to your project and light up your brand today.

    60.97$

    Built for sign cabinets and channel letters
    The LS-LM-2-6K is a string of 25 LED modules, each with 2 LEDs, linked by 3" of wire between modules for a total length of 12.5 feet. This layout lets you snake the string through letters, zig-zag it across the back of a light box or space it in rows for a uniform face. Each module has an integrated lens for better light dispersion and a 140º spread, which helps the light blend evenly behind translucent acrylic or polycarbonate faces. The compact module body fits shallow returns and narrow letter strokes where a larger module would leave dark corners, so small logos and script lettering stay evenly lit from edge to edge.

    Light quality and efficiency
    At 55 lumens per module and 0.66W per module, a full string gives roughly 1,375 lumens for about 16.5W. The 6000K cool white tone is the classic choice for signs: it reads bright from the street, keeps white faces clean and makes blue, red and green films pop. If you prefer a warmer glow for a boutique or a restaurant, the 3000K version of this 2 LED sign module offers the same format, and the 3 LED sign module in 6000K gives 75 lumens per module for deeper cabinets.

    Electrical and installation details
    These modules run on 12V DC and are non dimming. To size the power supply, multiply 0.66W by the number of modules and keep a safety margin: the 30W 12V outdoor power supply suits a single string, while larger units handle several strings. Clean the mounting surface, peel the adhesive backing and press each module in place, or use the screw tabs where a mechanical fastening is preferred. Plan the layout on paper first, starting with the letter outlines, then fill the centre so the face looks even at night. With their IP66 outdoor rating, the modules are made for exterior signs exposed to rain, snow and freeze-thaw cycles.

    Technical specifications
    SKU: LS-LM-2-6K
    LEDs per module: 2
    Voltage: 12V DC
    Wattage: 0.66W per module
    Lumens: 55 per module
    Colour temperature: 6000K cool white
    Beam spread: 140º
    Module size: 39 x 15 x 11 mm
    String: 25 modules, 12.5 feet
    Rating: IP66 outdoor, RoHS
    Lifespan: 65,000+ hours
    Warranty: 5 years

    Documentation
    The complete spec sheet for the LS-LM-2-6K, with module dimensions, wattage calculation and the matching drivers, is available in the Documentation tab. It is a handy reference when you quote a channel letter job or plan the power supply layout of a large sign.
    Technical Files
    pdf-img LS-LM-2-6K Spec Sheet
