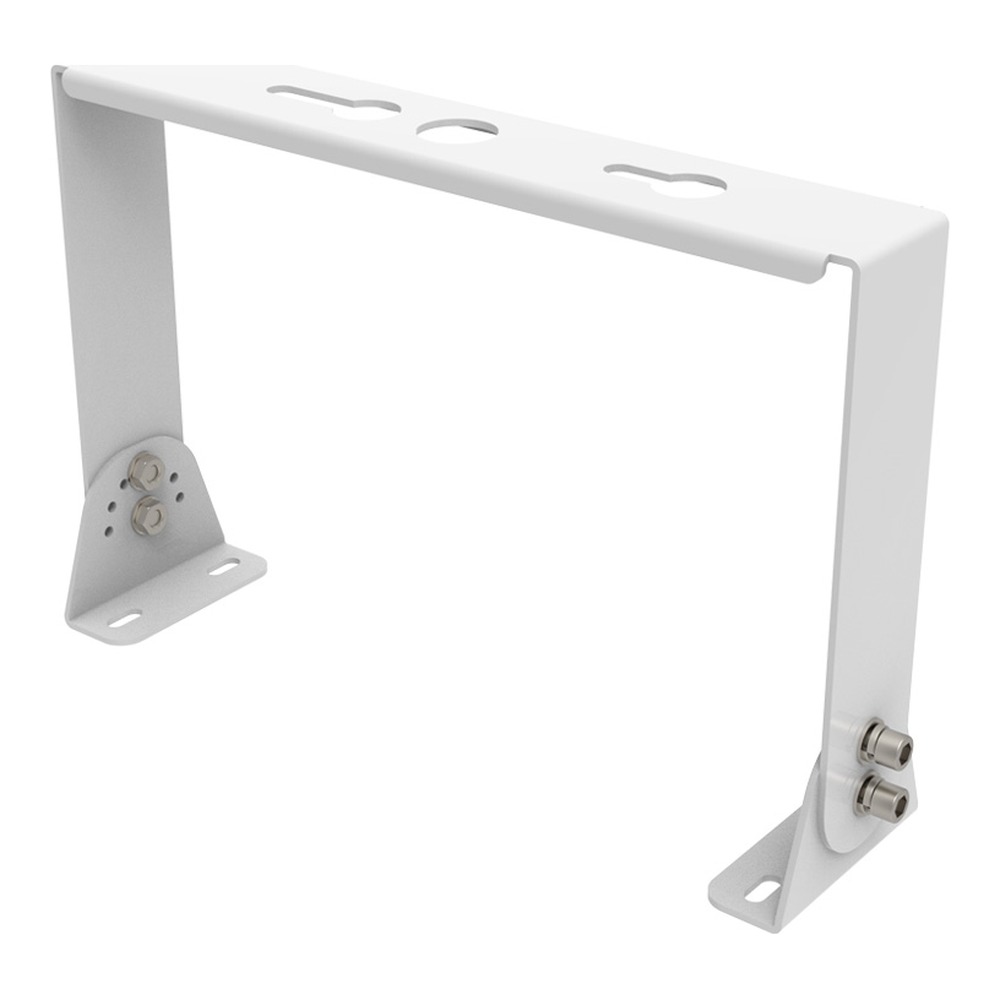

HB8 HIGH BAY, HIGH BAYS, ACCESSORIES, YOKE MOUNT (FOR 200W AND 240W) - HB8-YK-LG-WH

Name: HB8 HIGH BAY, HIGH BAYS, ACCESSORIES, YOKE MOUNT (FOR 200W AND 240W) - HB8-YK-LG-WH
Brand: CSC LED
SKU: HB8-YK-LG-WH
Price: 25.97 CAD
Availability: InStock

SKU: HB8-YK-LG-WH

Brand: CSC LED

Mounting a big high bay shouldn't mean fighting with the ceiling structure. The CSC LED HB8-YK-LG-WH is the large white yoke mount bracket for the HB8 series, the accessory you add when a hook or pendant drop simply won't work. Installers also call it a trunnion bracket, a U-bracket or a tilt mount for LED high bay lighting — whatever the name on the job sheet, the job is the same: hold the fixture solidly and let you aim it. This large format is made for the bigger HB8 bodies, and the compatibility chart on the spec sheet shows it fitting the 200W and 240W HB8 high bays, including the 240W white version.

The bracket carries a white finish, so it disappears against pale ceilings, painted decking and white HB8 housings instead of standing out as a dark shape overhead. Because it is a genuine CSC LED accessory listed in the HB8 ordering guide, the bolt pattern and the physical footprint match the fixture housing exactly — no drilling, no shimming, no improvised strut. The HB8 luminaires it supports are serious pieces of equipment: die-cast aluminum housing, polycarbonate lens, IP65, NEMA 4X, IK08, NSF rated, 0-10V dimmable, 3CCT selectable (three selectable colour temperatures: 3000K, 4000K and 5000K), power selectable with three power settings per fixture, 120-347V, 50,000 hours L70 life and a 5-year warranty. A mount that matches that build keeps the whole assembly stable and the aiming angle exactly where you set it.

Warehouses, distribution centres, manufacturing plants, gymnasiums, garages, grocery stores and food processing rooms all have spots where the fixture has to be bolted to a beam, a wall bracket, a truss or a low structural deck rather than chain-hung. That's the moment for a yoke mount bracket: tilt the high bay toward a rack aisle, a work bench, a bay door or a playing surface and kill the dark zones. It pairs naturally with the rest of the HB8 accessory line — optics, wire guards, reflectors — and with fixtures such as the 120° optic lens for 200W and 240W HB8. Order the HB8-YK-LG-WH with your high bays and mount them right the first time.

What this bracket is
The HB8-YK-LG-WH is the large, white yoke mount from the CSC LED HB8 High Bay accessory program. A yoke (or trunnion) is a U-shaped bracket that captures the luminaire on both sides and bolts to a flat surface, an angle iron, a beam clamp or a structural bracket. Once the fixture is pivoted to the angle you want, the side bolts lock it there. Unlike an eye hook or an aircraft-cable drop, a yoke gives you a rigid, non-swinging installation — useful anywhere doors slam, forklifts pass, fans run or vibration would otherwise leave your LED high bay slowly drifting off aim.

Compatibility
The HB8 accessory chart identifies this part as Yoke Mount - Large, White, and its shaded compatibility cells cover the 200W and 240W HB8 high bays — the 240W black HB8-240W-3P-3CCT-UD and the 240W white HB8-240W-3P-3CCT-UD-WH. Smaller HB8 bodies use the small yoke, and the 300W bodies use the extra-large version, so match the size to the fixture before you order. Because it is a manufacturer part from the same ordering guide, the mechanical fit and the load path are the ones the manufacturer intended, which keeps maintenance simple and the fixture warranty intact. For the 100W and 150W range, see the HB8 high bay 100W/120W/150W in black and the HB8 high bay 100W/120W/150W in white, which take the small yoke instead.

Technical specifications
Product number: HB8-YK-LG-WH
Product name: Yoke Mount - Large, White
Brand: CSC LED
Compatible fixtures: HB8 High Bay 200W and 240W (including 240W white)
Finish colour: White
Sold: Separately, as an accessory

The fixtures it supports
The HB8 High Bays it holds are power selectable with three power settings per fixture and 3CCT selectable — three selectable colour temperatures of 3000K, 4000K and 5000K — on 120-347V with 0-10V dimming and instant start. The 240W model delivers up to 35550 lm at 4000K with a CRI of 81, a 90° beam angle, 6kV surge protection, 0.9 power factor, 15% THD, an operating range of -40°C to 50°C, 50,000 hours L70 life and a 5-year warranty. Housing is die-cast aluminum with a polycarbonate lens, rated IP65, NEMA 4X, IK08 and NSF, cUL listed under E482965, and the 240W versions are DLC Premium. Each fixture ships with a 65" power cord and an eye hook in the box; the yoke is the alternative mounting method when that hook doesn't suit the structure.

Applications and documentation
Think of the wall-mounted high bay over a loading dock, the beam-mounted unit angled down a rack aisle, the gymnasium fixture tilted away from the ceiling deck, the car wash or shop bay where a rigid bracket beats a swinging chain. Because the HB8 carries a motion sensor receptacle and works with the HB8 optics and reflectors, a yoke-mounted layout can still be tuned photometrically after install — for example with the 120° optic lens for the 200W and 240W models, or backed up by the BLD-GM40D emergency LED driver where egress lighting is required. The full HB8 spec sheet, including the accessory compatibility chart, is in the Documentation tab of this page.
