HB8 HIGH BAY, HIGH BAYS, ACCESSORIES, ALUMINUM REFLECTOR (FOR 100W AND 150W)

Name: HB8 HIGH BAY, HIGH BAYS, ACCESSORIES, ALUMINUM REFLECTOR (FOR 100W AND 150W)
Brand: CSC LED
SKU: HB8-AL-REF-SM
Price: 50.97 CAD
Availability: InStock

SKU: HB8-AL-REF-SM

Brand: CSC LED

Get every lumen working where it matters — on the floor, not on the ceiling. The HB8-AL-REF-SM Aluminum Reflector from CSC LED is the small-size reflector accessory built for the HB8 LED high bay family, and it fits the 100W and 150W models. People shop for it under all kinds of names — high bay reflector, aluminum reflector shade, UFO high bay reflector, high bay light accessory — but it always does the same job: it wraps around the fixture and redirects stray light downward, so your high bay lighting puts brightness on aisles, work benches and floor areas instead of spilling it sideways into open roof structure.

This is a factory accessory from the HB8 accessory program, sold separately and listed as compatible with the HB8 100W and 150W high bays (HB8-100W-3P-3CCT-UD, HB8-150W-3P-3CCT-UD and HB8-150W-3P-3CCT-UD-WH). Those fixtures are power selectable and 3CCT selectable — three colour temperatures, 3000K, 4000K and 5000K — run on 120-347V, are 0-10V dimmable, and carry IP65, NEMA 4X and IK08 ratings with a 5-year warranty and 50,000 hours L70 life. The reflector is an aluminum accessory: no rewiring, no driver change, no added watts. It simply reshapes the 90° beam distribution of the luminaire so more of the light the fixture already produces lands on the work plane, which means better uniformity down the aisle and less glare in the eyes of anyone looking up.

It earns its keep in warehouses, distribution centres, manufacturing plants, garages and service bays, gymnasiums, arenas, grocery stores, food processing rooms and big-box retail — exactly the Canadian spaces where the HB8 is already the workhorse. If your round LED high bay lights are mounted high and the floor still feels dim, a reflector is usually the cheapest fix before you add fixtures. Remember the matching sizes: this SM version is for 100W and 150W only — the LG and XL reflectors serve the larger bodies. Pair it with the HB8 high bay 60W/80W/100W or the HB8 high bay 100W/120W/150W and finish the job right. Order your HB8-AL-REF-SM with your fixtures and install both in one pass.

Compatible with
Works with:
Reflector: HB8-100W-3P-3CCT-UD, HB8-150W-3P-3CCT-UD, HB8-150W-3P-3CCT-UD-WH

What this accessory is

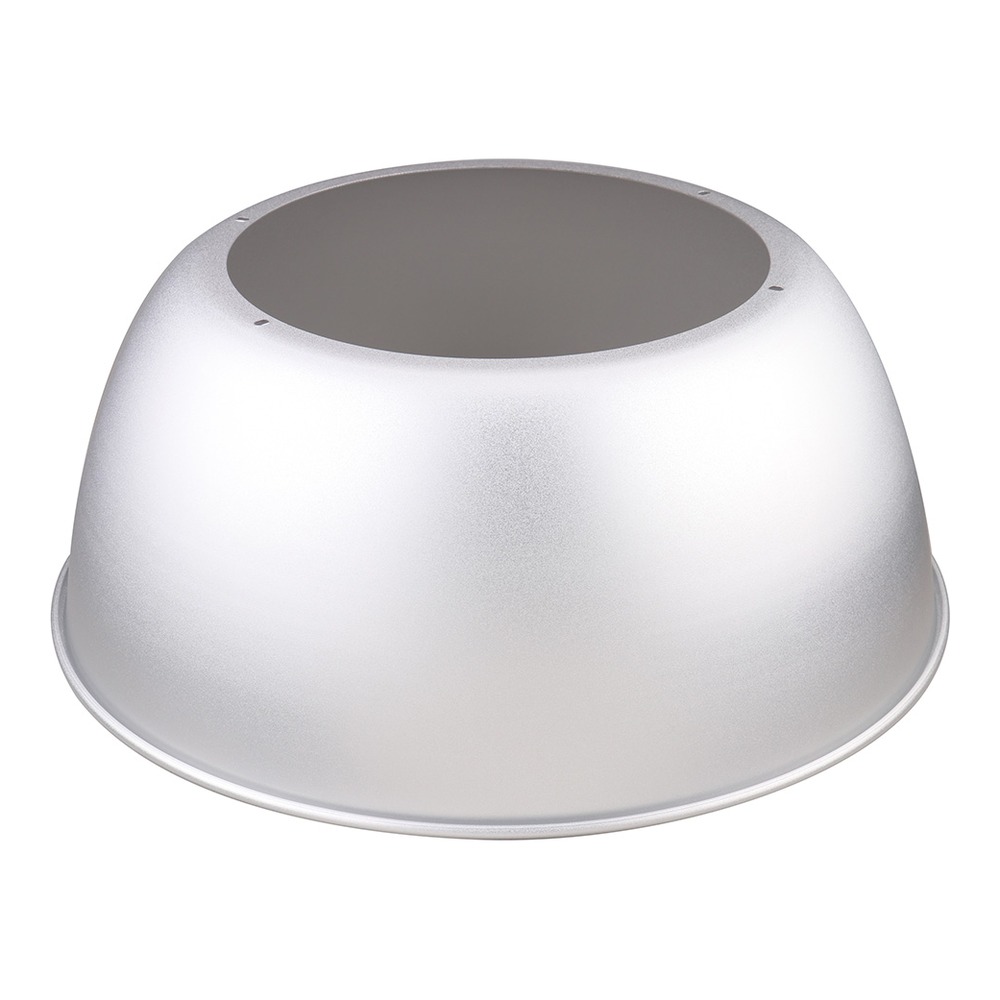

The HB8-AL-REF-SM is the Aluminum Reflector - Small in the CSC LED HB8 accessory line. It is an optical add-on, not a light source: it mounts to the body of an HB8 LED high bay and surrounds the optic so that light leaving the fixture at wide angles is bounced back down toward the floor. Aluminum is the traditional choice for high bay reflectors because it is light, reflective and handles heat well near a running LED module, which matters when the fixture is mounted in a hot roof space above a production line. Because it is an accessory sold separately, you can specify it at the quoting stage or add it later to fixtures already hanging.

Compatibility — read this before you order
The HB8 accessory chart is size-matched, and this one is the small body version: it is listed as compatible with the 100W and 150W HB8 high bays, meaning HB8-100W-3P-3CCT-UD, HB8-150W-3P-3CCT-UD and the white HB8-150W-3P-3CCT-UD-WH. The Large and Extra Large aluminum reflectors cover the 240W and 300W bodies instead. In the same small-body accessory group you will also find wire guards, frosted lenses, polycarbonate reflectors, yoke mounts, eye bolts, a security cable and interchangeable 60° and 120° optic lenses — so you can build the exact distribution your building needs. If you want a wider spread instead of a tighter one, look at the 120° optic lens for 100W and 150W, and for larger fixtures the 120° optic lens for 200W and 240W.

The fixtures it serves
The HB8 high bays it fits are power selectable with three power settings per fixture and 3CCT selectable at 3000K, 4000K and 5000K. The 100W model delivers up to 14672 lm at 4000K on its top setting with a factory CCT of 4000K and CRI of 82; the 150W model reaches up to 21828 lm at 4000K with CRI 81. Both run 120-347V, are 0-10V dimmable with instant start, come with a 65" power cord, a black polyester powder-coat finish (white available on the 150W), shatterproof interchangeable optics and a motion sensor receptacle. They are DLC Premium listed. Adding a reflector does not change the wattage draw — it changes where those lumens land.

Technical specifications (host HB8 high bays)
Compatible fixtures: HB8 100W and 150W (HB8-100W-3P-3CCT-UD, HB8-150W-3P-3CCT-UD, HB8-150W-3P-3CCT-UD-WH)
Selectable CCT: 3000K / 4000K / 5000K
Voltage: 120-347V
Dimming: 0-10V
Beam angle: 90°
Housing: die-cast aluminum, lens polycarbonate
Ratings: IP65, NEMA 4X, IK08, NSF, cUL E482965
Operating temperature: -40°C to 50°C
L70 life: 50,000 hrs
Warranty: 5-year

Where it pays off, and what else to add
Think of a distribution warehouse with tall racking: a reflector helps push light down the aisle face instead of washing the ceiling deck. In a gymnasium or arena it reduces the glare players see when they look up. In food processing and grocery back rooms, where the NSF and IP65 rated HB8 already belongs, tighter control means fewer fixtures for the same footcandles. For code-required egress lighting, the HB8 works with the BLD-GM40D emergency LED driver, which also needs the BLD01-RC remote control and the UFO-EBU-KIT mounting kit. The technical PDF spec sheet for the HB8-AL-REF-SM is in the Documentation tab — download it to confirm the accessory compatibility chart before you finalize your order.
