    48 INCH LINKING CABLE

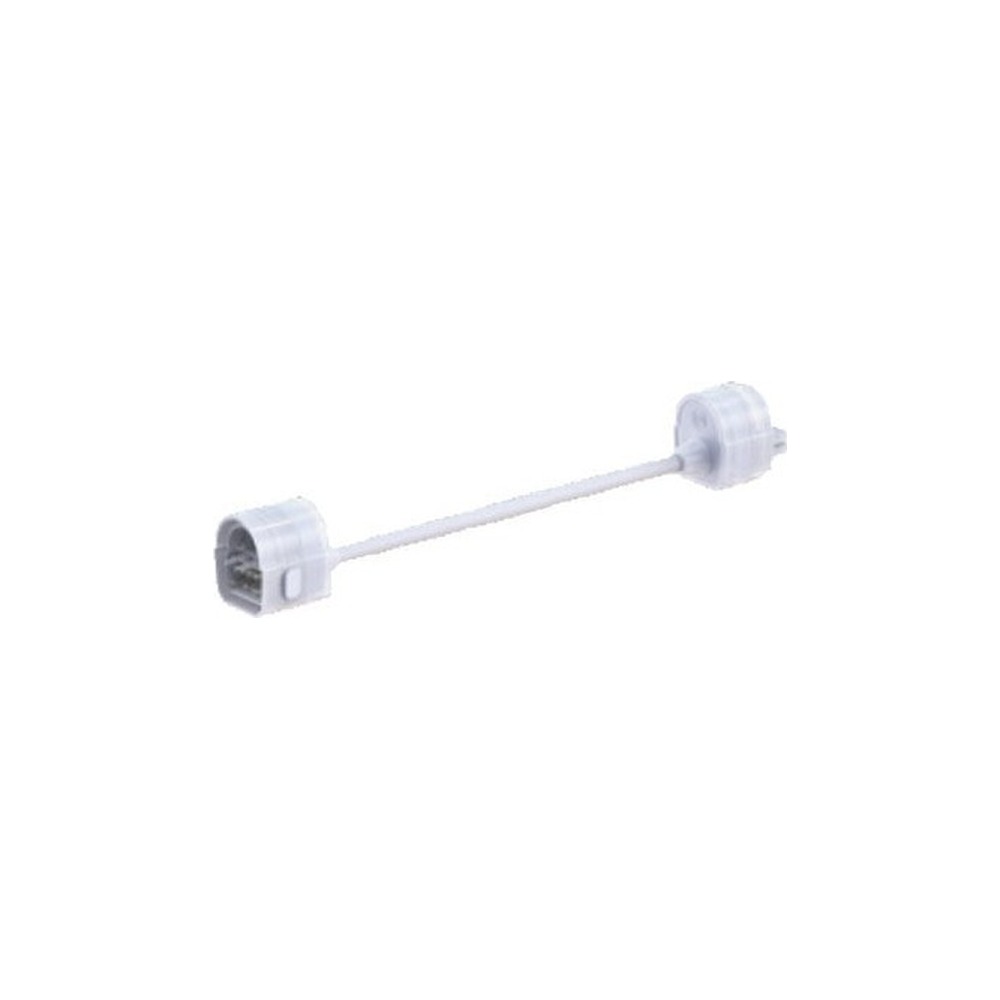

    48 INCH LINKING CABLE

    48 INCH LINKING CABLE

    SKU: RP-LBI65-LC-48IN-DIM

    Brand: LIGHT EFFICIENT DESIGN

    Need to spread your linear fixtures further apart without butchering the layout? The 48 inch linking cable from Light Efficient Design (SKU RP-LBI65-LC-48IN-DIM) is the longest linking cable in the RP LBI 65 accessory family, the go-to LED linking cord when two bars simply can't sit end to end. People search for it as a linking cable, jumper cable, fixture-to-fixture connector cable or LED bar interconnect cable, and it all describes the same thing: a plug-and-play cord that carries power and dimming signal from one LBI 65 bar to the next so a whole run behaves like a single, continuous line of light.

    This cable is part of the cables and connectors accessories offered for the RP LBI 65 platform, alongside the 6-inch, 12-inch and 24-inch versions. As its "DIM" designation indicates, it is the dimming-capable linking cable, so the control signal travels with the power and your linked fixtures respond together instead of one bar lagging behind another. One important planning note straight from the manufacturer's data: linking cables will lower the connectable quantity of bars in a run compared to connecting fixtures end to end with the LBI 65 conduit adapter. Keep that in mind when you lay out long runs, and remember that linking does not include 0-10V linked control — that depends on the controlling device you choose.

    Where does a 48-inch jumper earn its keep? Anywhere the structure dictates the spacing: warehouse racking and aisles, parking garages, car washes, food processing rooms, agricultural buildings, workshops, machine shops and garage or basement LED shop light runs in Canadian homes. Contractors love it for skipping over beams, sprinkler lines, ducts and joists without cutting into the fixture run. Pair it with the 3 ft incoming power cable wire whip to feed the run, the in-line seamless connector with CCT and dimming where bars meet directly, and the stainless steel waterproof aircraft suspension cable to hang the whole assembly. Add it to your next order and build the layout your ceiling actually allows.

    Compatible with
    Works with:
    Fixture: RP-LBI65-2F-6W-40K-WC, RP-LBI65-3F-10W-40K-WC, RP-LBI65-4F-25W-40K-WC

    41.99$

    What this accessory does
    The 48 inch linking cable is a factory-terminated interconnect cord designed for the RP LBI 65 linear bar platform from Light Efficient Design. Instead of opening junction boxes and pulling conductors between every fixture, you simply plug one end into the outgoing port of a bar and the other end into the next bar. It is listed in the manufacturer's accessories chart under CABLES + CONNECTORS, together with the 6IN, 12IN and 24IN versions, which means all four lengths share the same connection method and can be mixed within one project depending on how far apart each fixture has to sit.

    Dimming and control
    The "-DIM" suffix in the part number identifies this as the dimming linking cable: the conductors carry both power and the dimming signal from fixture to fixture, so a linked row responds as one. The manufacturer is explicit about one limitation worth repeating on the job site: linking does not include 0-10V linked control, and that behaviour will depend on the controlling device used in the installation. For runs that do not need dimming or colour temperature control, the non-dimming, non-CCT option exists in the same family — see the non-dimming seamless connector for those applications.

    Technical specifications
    Part number: RP-LBI65-LC-48IN-DIM
    Brand: Light Efficient Design
    Type: Linking cable, dimming
    Length: 48 in
    Family: RP LBI 65 accessories (cables + connectors)
    Other lengths offered: 6 in, 12 in, 24 in, 48 in

    Planning your run
    Linking quantities published by the manufacturer are based on using the LBI 65 conduit adapter with fixtures connected end to end: 4FT bars link up to 33 bars at 120V and 40 bars at 208V, 240V and 277V, while 3FT and 2FT bars link up to 40 bars at 120V, 208V, 240V and 277V. Two conditions change those numbers: linking cables will lower connectable quantities, and if incoming power cables are used on 120VAC the linking number is reduced to 24 pieces. Translation for the field: plan long runs on higher voltage where you can, count your jumpers, and if you are chaining many bars at 120V with power cables, break the run into several feeds. Related hardware includes the 3 ft incoming power cable wire whip and the incoming power conduit adapter RP-LBI65-IPC-12NPT-3FT, used with conduit to hardwire the incoming power cable into a fixture or junction box, with 3 ft of wire input included.

    Applications and documentation
    Concrete examples: jumping a 48-inch gap across a structural beam in a warehouse aisle, keeping a continuous visual line in a parking garage where columns break the spacing, spanning between wash bays, or matching fixture spacing to joists in a workshop or garage ceiling. For suspended layouts, combine your cables with the stainless steel waterproof aircraft suspension cable, 2 pack, and use shorter jumpers such as the 12 inch linking cable where fixtures sit closer together. The full RP LBI 65 technical spec sheet, including the accessories chart and the complete linking quantity table, is available in the Documentation tab of this page — download it before you quote a long run.
