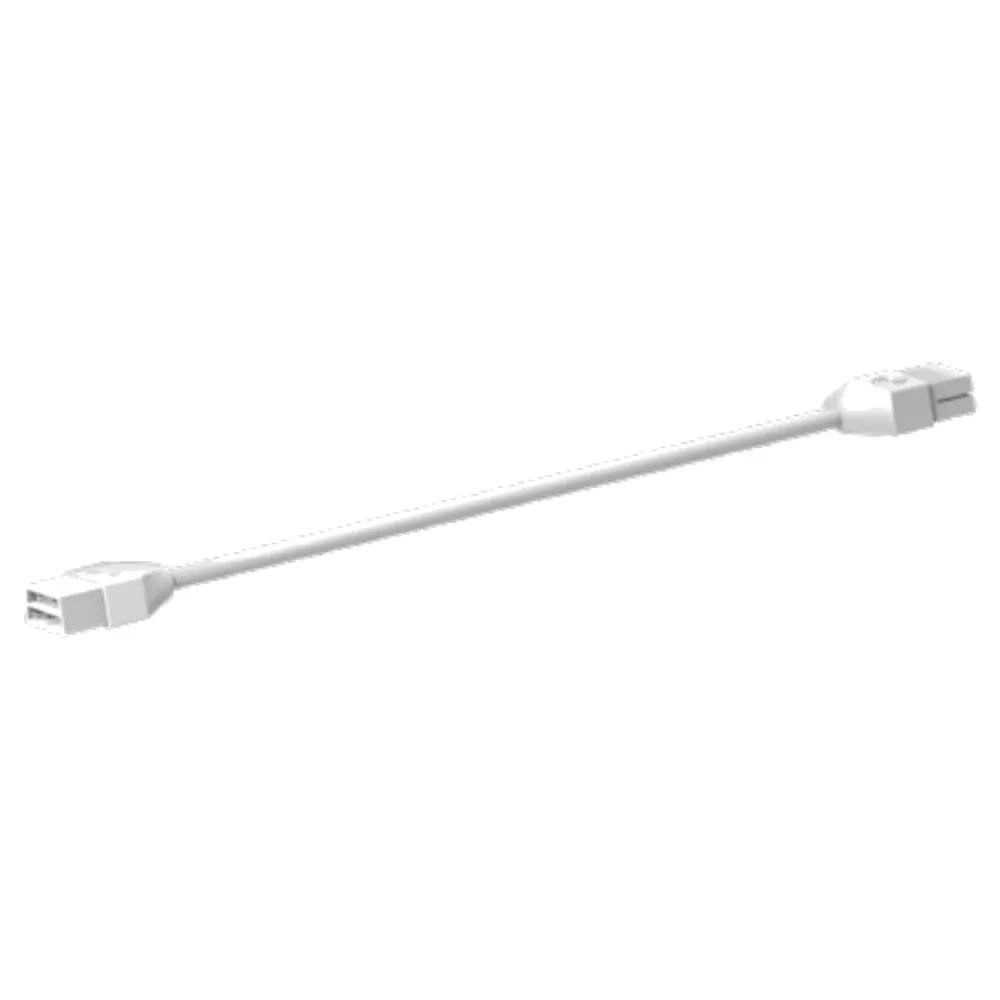

48IN NON-DIMMABLE LINKING CABLE (10-PACK)

Name: 48IN NON-DIMMABLE LINKING CABLE (10-PACK)
Brand: LIGHT EFFICIENT DESIGN
SKU: RP-LBI-LC-48IN-NODIM-10P
Price: 161.99 CAD
Availability: InStock

SKU: RP-LBI-LC-48IN-NODIM-10P

Brand: LIGHT EFFICIENT DESIGN

Need more reach between two light bars? The 48IN NON-DIMMABLE LINKING CABLE (10-PACK) from Light Efficient Design is the plug-and-play jumper that lets you keep building your run without opening a single junction box. Installers look for it under many names — LBI linking cable, LED light bar jumper cable, linear light connector cord, fixture linking cord or simply a 48in LED linking cable — and it all comes down to the same job: carrying power cleanly from one LBI light bar to the next. It is the accessory you reach for when fixtures sit far apart, when you have to jump over a cabinet stile, a beam, a shelf standard or a duct, or when the layout calls for even spacing between illuminated sections rather than end-to-end contact.

This is the non-dimmable version, built for fixed-output LBI systems where the light simply goes on and off — no dimming control line to worry about, no mismatch between a dimmed bar and a full-output one. Each cable measures 48IN and has a cable diameter of 7.25MM / 0.28 INCH, thin enough to tuck behind a light bar, along a T-bar or inside a channel. The spec sheet allows linking cables up to 72", so a 48-inch jumper sits comfortably in the middle of the range for long runs. Plan for 2.25" of clearance to unplug the cable from the bar and 1.6" to fit the connector to the wall or surface. The order code is RP-LBI-LC-48IN-NODIM-10P, supplied 10 cables per pack so a whole floor, aisle or kitchen gets matched, identical connections.

Retail displays, warehouse aisles, shop lighting, garage and workshop benches, office cove details, cabinet and shelving runs at home — anywhere LBI light bars are installed, these jumpers keep the wiring tidy and the schedule moving. They pair naturally with the rest of the LBI accessory family: feed the chain with the 3ft incoming power kit or the 7ft incoming power cord with switch, tie into branch circuits with the LBI junction box, and close the last connector with the LBI finishing cap. Stock the 10-pack with your next LBI order and wire the whole job in one visit.

Built for the LBI linking system
The 48-inch non-dimmable linking cable belongs to the Light Efficient Design LBI accessories line — the family of linking cables, connectors, clips and power feeds designed around LBI light bars. Instead of hardwiring between fixtures, you plug one end into the output connector of a bar and the other into the input of the next one. The result is a repeatable, factory-made connection every time, which is exactly what you want when a job has dozens of joints and an inspection at the end. Because it is a non-dimmable linking cable, it is intended for fixed-output LBI installations; the matching dimming version of the accessory family exists separately, so keep dimmed runs and non-dimmed runs on their own cable type.

Technical specifications
SKU: RP-LBI-LC-48IN-NODIM-10P
Brand: Light Efficient Design
Type: LBI linking cable, non-dimming
Cable length: 48IN
Cable diameter: 7.25MM / 0.28 INCH
Linking cable lengths offered in the family: 3IN, 6IN, 12IN, 18IN, 24IN, 36IN, 48IN, 60IN, 72IN (up to 72")
Minimum distance needed to unplug cable from bar: 2.25"
Minimum distance needed to fit to wall/surface: 1.6"
Pack quantity: 10 cables

Installation and layout
Plan your spacing before you climb the ladder. The 48-inch length is the one to pick when bars are separated by a structural element or when the reflected-light layout calls for gaps between illuminated sections. Leave 2.25" of working room at the connector so the cable can be unplugged from the bar later for service, and allow 1.6" where the connector meets a wall or mounting surface. The slim 0.28 INCH cable follows a T-bar grid, a shelf upright or a cabinet toe-kick easily and can be dressed with clips so nothing sags into view. Connections are quick, tool-free and repeatable, which is why contractors keep a 10-pack of linking cables in the van rather than cutting and splicing on site.

Works with the rest of the LBI accessory family
The documentation lists the full ecosystem this cable belongs to. Power comes in through the 3 ft incoming power kit with its service disconnect and abrasion protection grommet, through the 2 ft incoming power cord with 120V plug and switch for a direct receptacle connection, or through the 12 ft 90-degree incoming power cable for suspended runs. Branch-circuit connections are made at the LBI junction box, which connects to the light bar using a seamless connector and a linking cable. Mounting hardware in the same family includes the blade clip with its rotating mounting blade and the 45° bracket for cove lighting or displays. The last connector in the chain is terminated with the output cap.

Applications and documentation
Think long retail gondola runs where each bay needs its own bar, warehouse racking aisles, garage and workshop benches, commercial kitchens, display cases, cove and valance details in offices, and residential cabinetry where a 48-inch jump clears a range hood or a window. Buying ten identical LED linking cables at once keeps every connection in the system the same and avoids stopping a crew mid-install to chase one more jumper. The technical PDF spec sheet for RP-LBI-LC-48IN-NODIM-10P is available in the Documentation tab of this page: check it for the complete LBI accessories ordering table, the cable dimensions and the clearance notes before you finalize your layout.
