SLIMLED PLUS - SLM4-12W-CCT-WH

Name: SLIMLED PLUS - SLM4-12W-CCT-WH
Brand: LITELINE
SKU: SLM4-12W-CCT-WH
Price: 56.97 CAD
Availability: InStock

SKU: SLM4-12W-CCT-WH

Brand: LITELINE

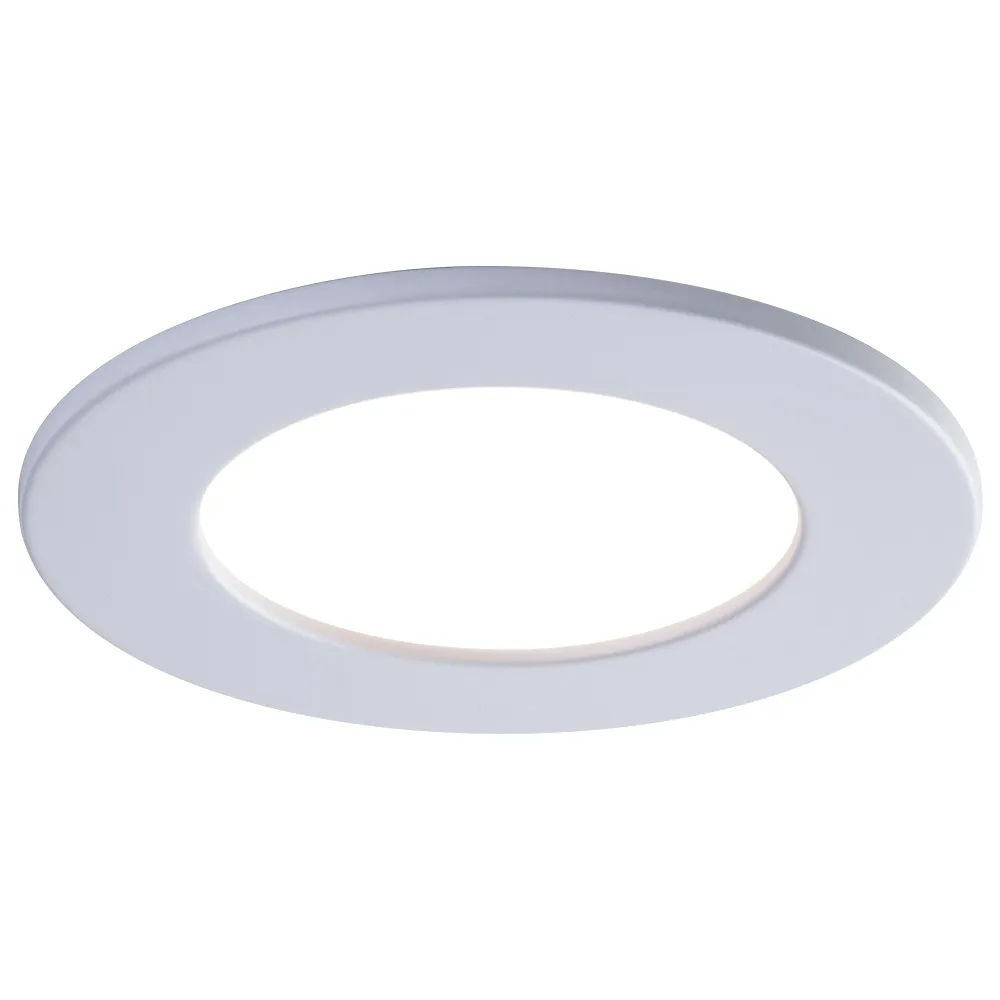

Turn every room into a warm, glare-free space with the SLIMLED PLUS 4" dim-to-warm recessed downlight from LITELINE, model SLM4-12W-CCT-WH. Whether you call it a pot light, a slim LED recessed light, a canless downlight or simply a ceiling light, this is the fixture homeowners and contractors reach for when they want clean ceilings without bulky housings. Its ultra-slim profile slips into a 4 1/4" (108mm) hole and mounts flat against the ceiling, so it works where a traditional can never could — under joists, beside ductwork, in tight soffits and low-clearance basements. Paired with a compact remote driver box, it turns a full-day pot light job into an afternoon of easy work, and the white interchangeable magnetic trim keeps the look tidy in kitchens, hallways, bedrooms, bathrooms and covered outdoor ceilings.

Under the hood, the 12W LED module delivers up to 620 lumens at up to 58 lumens per watt, with a typical CRI of 90 so skin tones, wood grain and paint colours look true. The real magic is the dim-to-warm behaviour: as you dim, the colour temperature travels from 3000 K down to a candle-like 2000 K, giving you bright task light for cooking and a cozy glow for evenings. It runs on 100-135V AC, 50/60Hz with a dimmable Class II 300mA electronic driver, dims on standard forward/reverse phase, TRIAC and ELV dimmers, and has a 0.99 power factor. The durable airtight aluminum body with UV stable paint, white PMMA diffuser lens and silicone gasket make it suitable for wet locations, indoor or outdoor, and it starts down to -40°C (-40°F). Add a 110° beam spread, cETLus certification, LM79 and LM80 testing, Title 24 JA8 compliance, projected life of 70% at 50,000 hrs and a lifetime warranty.

This white 4" downlight shines in condo kitchens, open-concept living rooms, hallways, walk-in closets, insulated ceilings, and in shops, clinics and boutiques that need clean, consistent light. Canadian winters are no problem thanks to its cold starting temperature and wet location rating for porches, soffits and covered decks. Want a different look? Swap the magnetic trim for a dead-front trim/baffle combination such as Shade Mini 4" round trim SLM4-RST-WHWH, SLM4-RST-WHSS or SLM4-RST-BKSS, and pair the run with the 6" SLIMLED PLUS SLM6-16W-CCT-WH in larger rooms. Order your SLM4-12W-CCT-WH and light your project the easy way.

Built to last, built to disappear into the ceiling
The SLIMLED PLUS is engineered around a durable airtight aluminum body finished in UV stable paint, topped with a white PMMA diffuser lens that softens the light and cuts glare. A silicone gasket seals the fixture for wet location use, and the included white interchangeable magnetic trim snaps on and off in seconds when you want to change the look. Two spring loaded clips grip any ceiling material, and because the profile is so slim, the fixture can be installed under joists or ductwork where a traditional recessed can simply won't fit. The 4" version uses a Ø 4 1/4" (108mm) hole cut, with an O.D. of 4 13/16" (122mm) and an I.D. of 3" (76mm).

Light quality and dim-to-warm comfort
The 12 watt LED module produces uniform intensity with up to 620 lumens and a typical CRI of 90, which means reliable colour rendering for kitchens, bathrooms, retail displays and anywhere finishes matter. The 110° beam spread from the lens spreads light broadly, so fewer fixtures cover more ceiling. Colour temperature dims from 3000 K to 2000 K: full output gives you crisp, useful white light, and as you lower the dimmer the light warms into a relaxed amber, the same effect people love from incandescent and halogen — with up to 80% less energy use.

Electrical and installation details
Power comes from an extruded aluminum hardwire box housing a dimmable Class II electronic LED driver at 300mA with 100-135V AC input. An 18" plenum rated FT6 wire with a DC 2.1 connector links the driver to the fixture, and "quick connect" push-in terminals make line-side wiring fast — a real time saver on multi-fixture jobs. The fixture is compatible with industry standard TRIAC/ELV dimmers and forward/reverse phase dimming; Liteline publishes a compatible dimmer list for SlimLED. It is approved for wet locations, indoor/outdoor and insulated ceilings, and will start at temperatures as low as -40°C (-40°F).

Technical specifications
SKU: SLM4-12W-CCT-WH
Brand: LITELINE
Application: Ceiling Recessed Mount
Approved location: Wet / Insulated Ceilings / Indoor / Outdoor
Wattage: 12W
Lumens: up to 620
Lumens per watt: up to 58
CCT: 3000 K ~ 2000 K (dim-to-warm)
CRI: 90
Beam angle: 110°
Input: 100-135V AC, 50/60Hz
Dimming: Yes — forward/reverse phase / TRIAC / ELV
Power factor: 0.99
Hole cut: Ø 4 1/4" (108mm)
Colour: WH (white trim)
Certification: cETLus, LM79, LM80, Title 24 JA8
Projected life: 70% @ 50,000 hrs
Minimum starting temperature: -40°C (-40°F)
Warranty: Lifetime

Applications, compatibility and documentation
Think kitchen ceilings and islands, hallways, stairwells, bedrooms, basements with low headroom, bathrooms and showers, plus covered porches and soffits that see Canadian weather. On the commercial side it suits offices, clinics, salons, cafés and boutiques where owners want a discreet recessed downlight with warm evening ambiance. For a custom finish, this SKU accepts the 4" dead-front trim and baffle combinations, including Shade Mini 4" round trim SLM4-RST-WHSP, SLM4-RST-WHBG and SLM4-RST-BKBG. Need bigger output in large rooms? Mix in the 6" SLIMLED PLUS SLM6-16W-CCT-WH on the same ceiling plan. Accessories such as pre-mounting plates, hanger bar kits, vapour barrier extenders and flexible connectors are available separately for new construction and remodel work. The full technical spec sheet is in the Documentation tab for your plans, quotes and inspections.
