PIR1 & MICROWAVE1 HIGHBAY SENSOR CONTROLLER

Name: PIR1 & MICROWAVE1 HIGHBAY SENSOR CONTROLLER
Brand: TUROLIGHT
SKU: TL-HB-CONTROLLER-MICROWAVE1-PIR1
Price: 61.97 CAD
Availability: InStock

SKU: TL-HB/CONTROLLER/MICROWAVE1/PIR1

Brand: TUROLIGHT

Tired of high bay fixtures blasting full light over an empty aisle at 3 a.m.? The PIR1 & MICROWAVE1 HIGHBAY SENSOR CONTROLLER from TUROLIGHT is the remote-style controller that lets you program a high bay motion sensor the easy way — no ladder acrobatics, no guessing. People look for it as a high bay occupancy sensor controller, a motion sensor programmer, a microwave sensor remote or simply a "capteur" controller for LED high bay lights. It pairs with the TL-HB/Sensor/Microwave1 bi-level microwave sensor, the slim, low-profile motion sensor made to be installed inside the bottom of a high bay fixture body, so your round UFO or linear high bays run at full output only when someone is actually there.

The microwave sensor it commands reacts to movement in the coverage area using an HF system at 5.8 GHz ±75 MHz with a transmission power under 0.2 mW. From the controller you set the detection radius at 20%, 50%, 75% or 100%, the hold time at 10 s, 1 min, 5 min, 10 min, 15 min, 20 min, 30 min or 60 min, and the daylight threshold at 24H, 10LUX, 30LUX or 50LUX. The sensor runs on a 12V-24V DC power supply drawing more than 50 mA, gives a 0-10V dim control output with a maximum 25 mA sinking current, mounts up to 50 ft. (15 meters) high, carries an IP rating of IP6 5 and operates from -4 °F to +140 °F (-20 °C to +60 °C). Warm-up time is 15 seconds; out of the box it sits at 100% sensitivity, 5 min hold-on, 30% dimming level and 60 minutes dimming time.

Warehouses, garages, workshops, arenas, big-box back rooms, agricultural buildings and municipal shops across Canada all have the same problem: long hours, cold corners and lights nobody turns off. This controller is the tool that tunes each bay to the space — short hold times over loading docks, long ones over packing tables, daylight cut-off near skylights. Model SKU TL-HB/CONTROLLER/MICROWAVE1/PIR1 is made to program the Highbay sensor - RF - LED (TL-HB/Sensor/Microwave1). Add one to your next high bay order and set every fixture in seconds.

Compatible with
Works with:
Sensor: TL-HB/Sensor/Microwave1, TL-HB/Sensor/PIR1

61.97$

Supplier availability: In stock (+500)

Learn more
Documentation

What it is and how it works

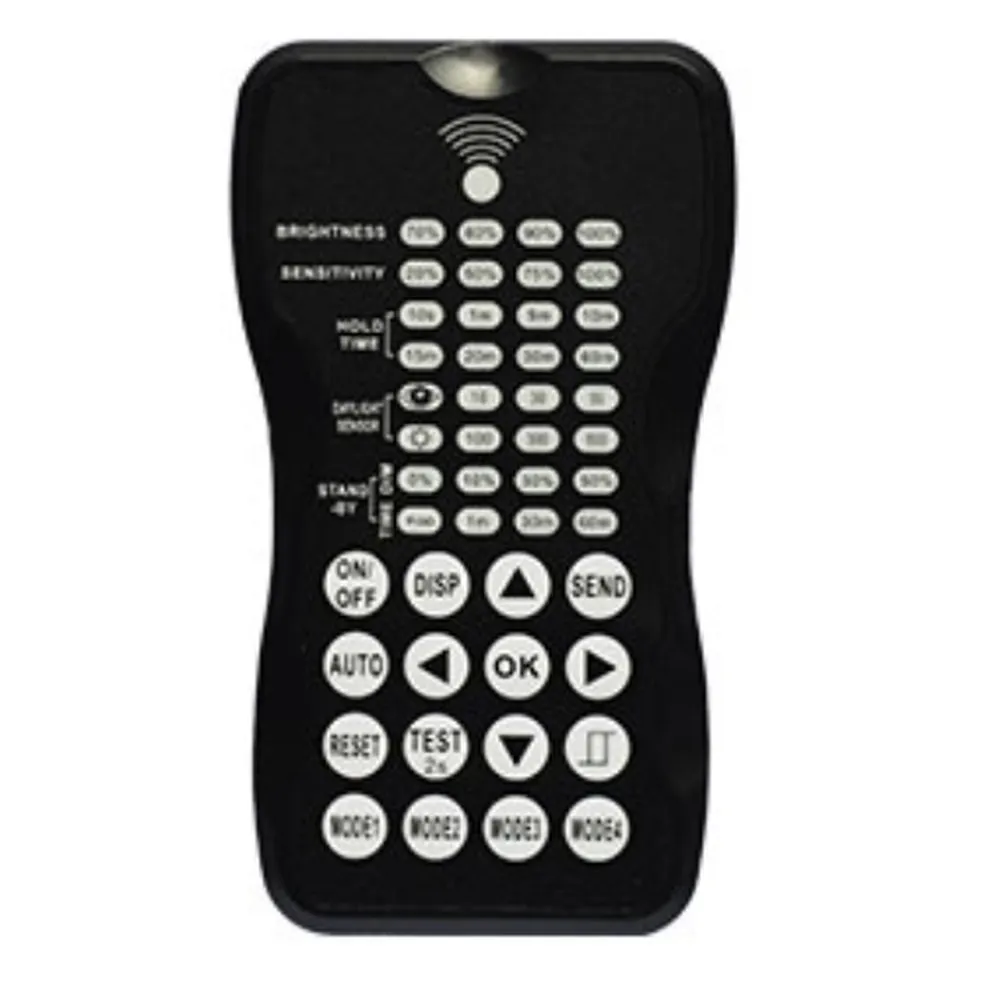

The TUROLIGHT PIR1 & MICROWAVE1 HIGHBAY SENSOR CONTROLLER is the programming companion for the TL-HB/Sensor/Microwave1 bi-level microwave sensor for high bay lighting. The sensor itself is slim and low-profile, designed for installation inside the bottom of a light fixture body, and it uses microwave sensing technology that reacts to changes in movement within the coverage area. When motion stops and the time delay elapses, the light drops from high to low mode and eventually to an OFF position if that is what you want. Every time you change a setting with the remote control, the LED light connected to the sensor turns on/off to confirm the command — a simple visual handshake from the floor.

Corridor and daylight functions
The sensor's corridor function delivers tri-level control for areas that need a light-change notice before switch-off: 100% → dimmed light (when natural light is insufficient) → off, with two selectable waiting periods (motion hold-time and stand-by period), a selectable daylight threshold and freedom over the detection area. The daylight sensor function is opened from the controller while the remote is in setting condition: with sufficient natural light the fixture does not switch on even when presence is detected; with insufficient natural light it switches on automatically, dims to stand-by level after the hold-time, then switches off once the stand-by period elapses. Note that when the daylight sensor is open, the stand-by time is infinite.

Technical specifications
Power supply: 12V-24V DC, >50mA
Dim control output: 0-10V, max. 25mA sinking current
HF system: 5.8GHz±75MHz
Transmission power: <0.2mW
Detection radius: 20% / 50% / 75% / 100%
Mounting height: Max 50ft. (15 meters)
Time setting: 10s / 1min / 5min / 10min / 15min / 20min / 30min / 60min
Light-control: 24H / 10LUX / 30LUX / 50LUX
Temperature: -4 °F to +140 °F (-20 °C to +60 °C)
IP rating: IP6 5
Warm-up time: 15 seconds
Factory default: 100% sensitivity, hold-on time 5min, dimming level 30%, dimming time 60 minutes
SKU: TL-HB/CONTROLLER/MICROWAVE1/PIR1

Installation and electrical notes
Because the sensor must directly "see" the motion of a person or moving object to detect it, careful thought has to go into luminaire placement and lens selection — avoid spots where racking, ductwork or mezzanines block the line of sight. The published coverage pattern is given for a height of installation from 13 to 50 ft. After the sensor is first connected to input power, the light stays on for 15 seconds, then goes to dimming and works normally, so don't panic during that first quarter-minute. The 0-10V dim control output means the sensor drives dimmable LED drivers directly, which is exactly how bi-level LED high bay installations are wired in warehouses and shops.

Applications, compatibility and documentation
Think distribution centres where aisles are busy in bursts, mechanical rooms, hockey arena storage, car dealership service bays, grow and agricultural buildings, church halls and municipal garages: anywhere lights burn for hours with nobody underneath. This controller is intended for the Highbay sensor - RF - LED (TL-HB/Sensor/Microwave1) installed in round UFO or linear high bay lights, so commissioning a whole building becomes a walk-through instead of a lift rental. The complete technical PDF spec sheet is available in the Documentation tab of this page for wiring details, coverage diagrams and the full setting sequence.
