PIR1 HIGHBAY SENSOR WITH 3.5MM SINGLE PIN - TL-HB/SENSOR/PIR1

Name: PIR1 HIGHBAY SENSOR WITH 3.5MM SINGLE PIN - TL-HB/SENSOR/PIR1
Brand: TUROLIGHT
SKU: TL-HB-Sensor-PIR1
Price: 38.97 CAD
Availability: InStock

SKU: TL-HB/Sensor/PIR1

Brand: TUROLIGHT

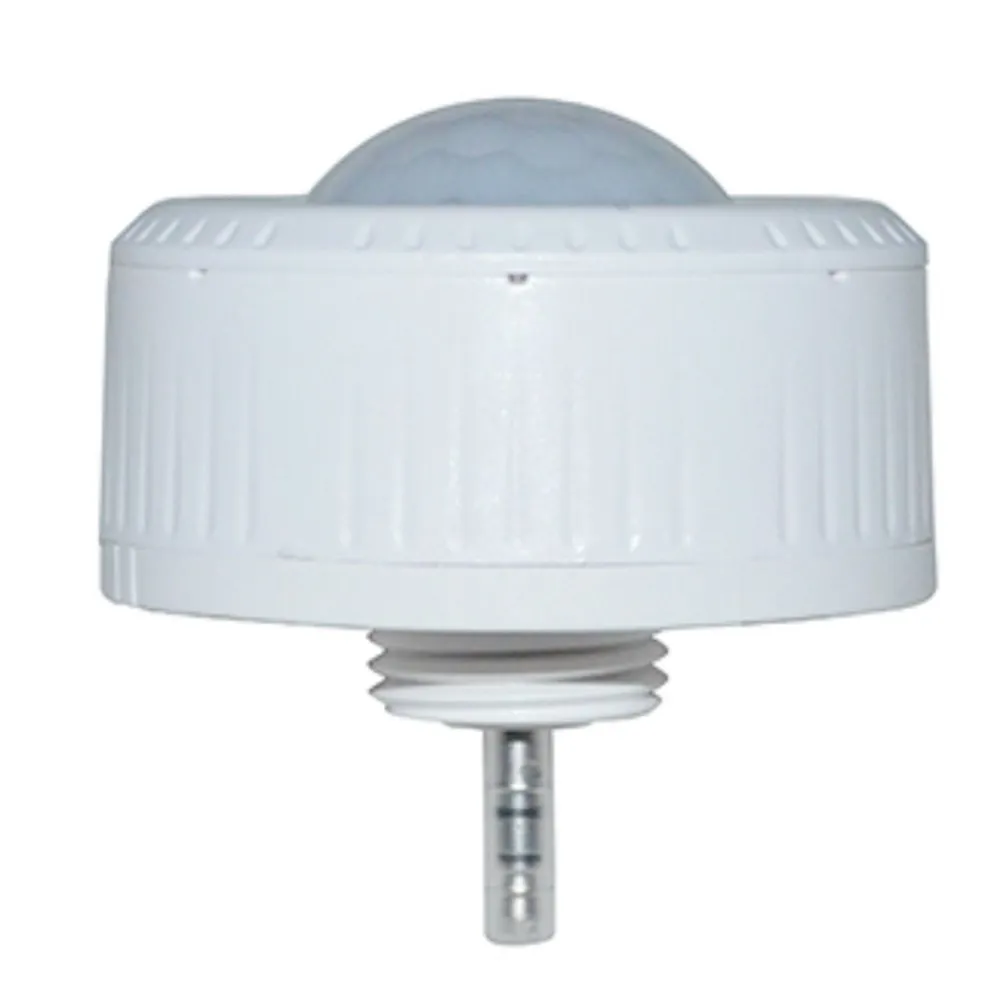

Turn your warehouse or shop lights into something smarter without rewiring the whole building. The PIR1 HIGHBAY SENSOR WITH 3.5MM SINGLE PIN (SKU TL-HB/Sensor/PIR1) from TUROLIGHT is a bi-level motion sensor designed to mount directly into a high bay light, giving your fixtures occupancy detection and daylight harvesting in one small plug-in component. People shop for it as a high bay PIR sensor, an occupancy sensor for LED high bay lights, a motion detector for shop lights or simply a bi-level sensor — same part, same job: lights at full output when someone is there, dimmed or off when the space is empty.

Built for real working environments, this sensor is rated IP65 and operates from -20 °C to +60 °C (-4 °F to +140 °F), so it keeps doing its job in unheated garages, cold storage and covered outdoor areas. It runs on a 12V-24V DC power supply (>30mA) and controls 0-10V dimming drivers or dimming ballasts with a max. 25mA sinking current output. Mounting height goes up to 40 ft. (12 metres), with a selectable detection radius of 20%/50%/75%/100% and hold-time choices of 10s, 1 min, 5 min, 10 min, 15 min, 20 min, 30 min or 60 min. The daylight threshold can be set to 24H, 10LUX, 30LUX or 50LUX, and every parameter is adjustable with a wireless configuration tool at a remote range of 50 ft. (15 m indoor, no backlight).

This is the piece that pays for itself in warehouses, distribution centres, workshops, arenas, garages, barns, manufacturing floors and big-box retail back rooms — anywhere in Canada where lights run long hours over aisles nobody is walking down. Its corridor function gives tri-level control: 100% on motion, a dimmed stand-by level when natural light is insufficient, then off after the stand-by period. Pair it with the PIR1 & Microwave1 highbay sensor controller to program your settings quickly. Add it to your next high bay lighting job and let the fixtures manage themselves.

Compatible with
Works with:
Controller: TL-HB/CONTROLLER/MICROWAVE1/PIR1

What this sensor does
The TL-HB/SENSOR/PIR1 is a passive infrared (PIR) sensor that mounts in a lighting fixture and provides multi-level control based on motion and/or daylight contribution. Instead of an all-or-nothing switch, it drives your fixture through several light levels: full output when presence is detected, a dimmed stand-by level during absence, and off after the stand-by period elapses. It is rated for wet and cold locations, which is why it holds up in unheated warehouses, loading docks, covered yards and cold storage where a standard indoor occupancy sensor would give up.

Electrical and dimming details
The sensor is powered by a 12V-24V DC supply drawing more than 30mA and outputs a 0-10V dim control signal with a maximum 25mA sinking current. That means it works with LED drivers and dimming ballasts that accept a 0-10 VDC control input — the standard on virtually every commercial LED high bay and UFO fixture. The 3.5mm single-pin connection keeps installation tidy inside the fixture housing. Note the warm-up behaviour: after the sensor receives input power for the first time, the light stays on for 40 seconds, then goes into dimming and works normally.

Technical specifications
SKU: TL-HB/Sensor/PIR1
Power supply: 12V-24V DC, >30mA
Dim control output: 0-10V, max. 25mA sinking current
Remote range: 50ft. (15 m indoor, no backlight)
Detection radius: 20%/50%/75%/100%
Mounting height: max 40ft. (12 metres)
Time setting: 10s/1 min/5 min/10 min/15 min/20 min/30 min/60 min
Light-control: 24H/10LUX/30LUX/50LUX
Operating temperature: -4 °F to +140 °F (-20 °C to +60 °C)
IP rating: IP65
Factory default: 100% sensitivity, hold-on time 5 min, daylight sensor off, dimming level 30%, dimming time 60 minutes

Programming, corridor function and daylight harvesting
All control parameters are adjustable through a wireless configuration tool capable of storing settings, so you can walk a facility and program fixtures one after another from the floor. Any setting changed by remote control is confirmed by the connected LED light switching on/off. The corridor function delivers tri-level control for areas that need a light-change warning before switch-off: with sufficient natural light the fixture does not switch on when presence is detected; with insufficient natural light it switches on automatically; after the hold-time it dims to stand-by level; and it shuts off once the stand-by period ends. The daylight sensor function adds setpoint-based behaviour — for example 100% on movement, dimming to a stand-by level after the hold-time, and turning off when natural light exceeds the off setpoint even if the space is occupied. Coverage is symmetrical, reaching out to 30' on each side in the published coverage diagram.

Where to use it and what pairs with it
Think warehouse aisles, parking garages, mechanical rooms, arenas, workshops, agricultural buildings and retail stockrooms — every space where high bay lights burn full output over empty floor. For fast field programming and commissioning, pair the sensor with the PIR1 & Microwave1 highbay sensor controller, which is listed as an applicable model with this sensor. The full technical PDF (TL-HB/Sensor/PIR1 Spec Sheet), including the sensor coverage diagram and the default settings table, is available in the Documentation tab of this page — worth printing for the installer before the fixtures go up.
