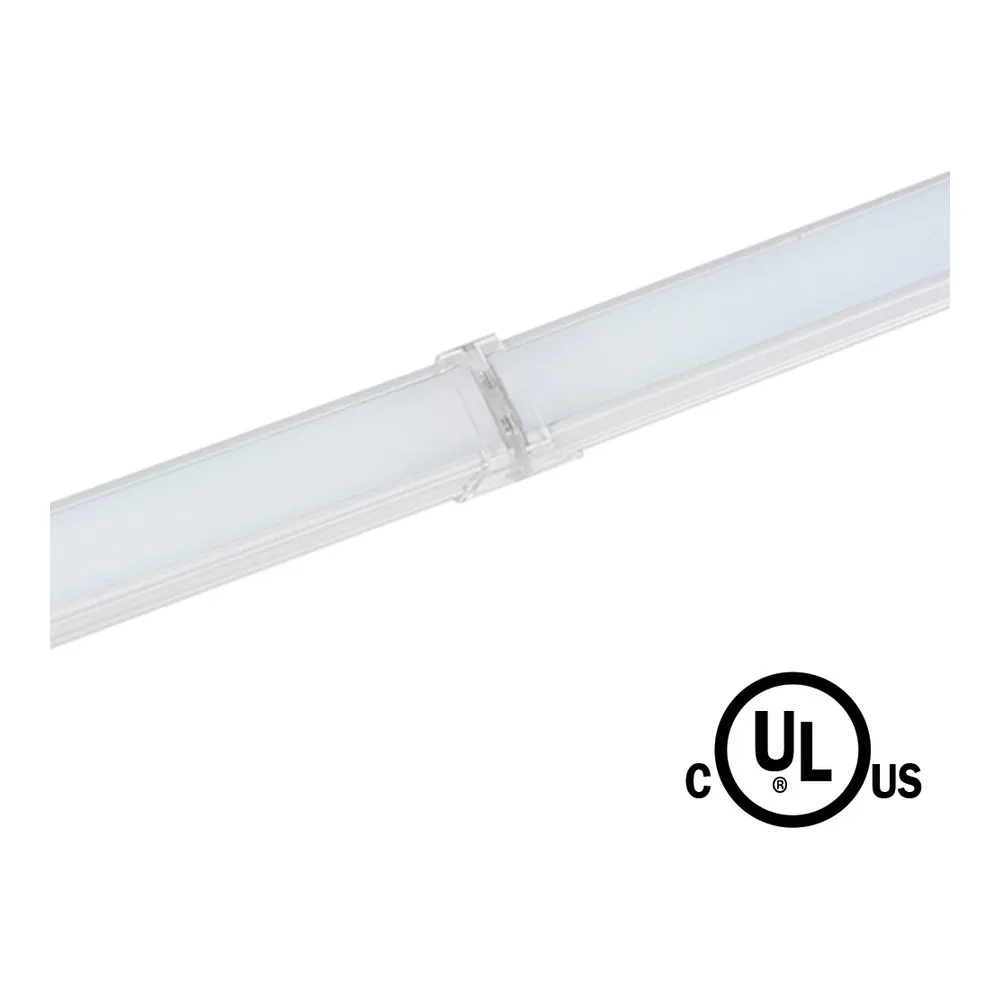

LL50, 24V, 40" (102CM) LINEAR SURFACE MOUNT CABINET LIGHT, ALUMINUM HOUSING, PLUG AND PLAY, WARM WHITE 3000K, DIMMABLE, UL APPROVED - INCLUDES 1 SET (2) OF MOUNTING HARDWARE

Name: LL50, 24V, 40" (102CM) LINEAR SURFACE MOUNT CABINET LIGHT, ALUMINUM HOUSING, PLUG AND PLAY, WARM WHITE 3000K, DIMMABLE, UL APPROVED - INCLUDES 1 SET (2) OF MOUNTING HARDWARE
Brand: LUMENSTARLED
SKU: LS-LL50-40-3K
Price: 56.97 CAD
Availability: InStock

SKU: LS-LL50-40-3K

Brand: LUMENSTARLED

Give your counters, shelves and display cases the kind of even, shadow-free glow that makes a space feel finished. The LUMENSTARLED LL50 is a 40" (102 cm) linear surface mount cabinet light — the slim LED linear light bar people also call an under-cabinet strip, a low-voltage light bar or an aluminum extrusion fixture — built to mount right under a cupboard, a floating shelf or a display header and disappear from view while the light does all the talking. Its linkable, plug-and-play design means you can run light from one cabinet run to the next without a tangle of wires, which is exactly what kitchen renovations, retail merchandising walls, workshop benches and closet systems ask for.

This is a 24V DC fixture drawing 15W and delivering 1100 lumens of 3000K warm white light through a wide 120° beam, so the illumination spreads evenly across a countertop instead of leaving hot spots and dark gaps. It is dimmable, letting you take it from full task brightness down to a soft accent glow for evenings. The aluminum housing measures L1000 x W18 x H8 mm (W40 x W1 3/16 x H5/16"), pulling heat away from the diodes so output stays steady, and the whole fixture is c UL us Listed for North American electrical safety. Every unit ships with 1 set (2 pieces) of mounting hardware.

Picture it under kitchen uppers for prep work, along a bar back, inside a wine display, over a bathroom vanity ledge, in a walk-in closet, under retail shelving or above a garage workbench — anywhere a Canadian homeowner, contractor or shop owner needs clean task light in a tight space. Because it runs on low voltage, it pairs naturally with an existing 24V DC power supply and 24V-compatible dimming controls. Prefer a crisper, more neutral light for a workshop or a modern white kitchen? The same fixture is offered in LL50 40" 4000K linear cabinet light. Order SKU LS-LL50-40-3K and light your cabinets the easy way.

Built to sit flat and stay cool
The LL50 is housed in an extruded aluminum body measuring L1000 x W18 x H8 mm (W40 x W1 3/16 x H5/16"). At just 18 mm wide and 8 mm tall, it tucks against the underside of a cabinet without dropping into sightlines — no bulky channel, no visible hardware from a standing position. Aluminum is the material of choice for linear LED lighting because it acts as a heatsink: pulling warmth away from the diodes keeps the light output consistent and protects the LEDs over the long run. Each fixture includes 1 set (2 pieces) of mounting hardware, so a single unit is ready to install straight out of the box.

Light quality that flatters what it touches
With 1100 lumens at 3000K warm white and a 120° beam angle, this surface mount bar washes a countertop evenly from front edge to backsplash rather than throwing narrow stripes of light. Warm white is the temperature most people want in a kitchen, a bar area or a retail display: it makes wood, stone and food look rich and inviting while still giving you enough brightness to chop, read a recipe or check inventory. Because the fixture is dimmable, the same run can serve as hard-working task lighting during the day and as a low, atmospheric glow at night.

Technical specifications
Product code: LS-LL50-40-3K
Voltage: 24V DC
Wattage: 15W
Light output: 1100 lumens
Colour temperature: 3000K Warm White
Beam angle: 120°
Dimmable: Yes
Certifications: c UL us Listed
Dimensions (LxWxH): L1000 x W18 x H8 mm (W40 x W1 3/16 x H5/16")
Housing: Aluminum
Included: 1 set (2) of mounting hardware

Wiring, dimming and installation
This is a low-voltage 24V DC fixture, so it must be fed by a 24V DC power supply sized for the total wattage of your run — at 15W per 40" unit, the math on a multi-cabinet kitchen is quick to do. The plug and play connection means no hardwiring at the fixture itself: connect, position, then fix it with the two supplied mounting pieces. The design is linkable, so several units can be run along a continuous cabinet bank. For dimming, use a 24V-compatible dimming system on the driver side. The c UL us Listed certification means the fixture has been independently tested to North American electrical safety standards — the documentation project managers and inspectors will ask for on residential builds, condo projects and commercial fit-outs.

Where it earns its keep, and what to pair it with
Kitchen uppers and islands, pantry shelving, bar backs and wine displays, bathroom vanity ledges, home-office desks, walk-in closets, jewellery and cosmetics cases, bakery counters, garage workbenches and basement craft rooms all benefit from a clean line of under-cabinet LED light. Contractors like it on multi-unit jobs because the install time per cabinet is measured in minutes. If your project calls for a cooler, more neutral tone — or if you want to mix warm and neutral zones in the same space — the matching LL50 40" 4000K version shares the same housing and format. The full technical PDF (40 LINKABLE LED LINEAR LIGHT) is available in the Documentation tab for exact dimensions and electrical data.
