    LED AREA LIGHT
    LED AREA LIGHT

    LED AREA LIGHT

    SKU: NX-ARS7-240/200/150W-H-MV-TXP(XX)-y

    Brand: NEXLEDS

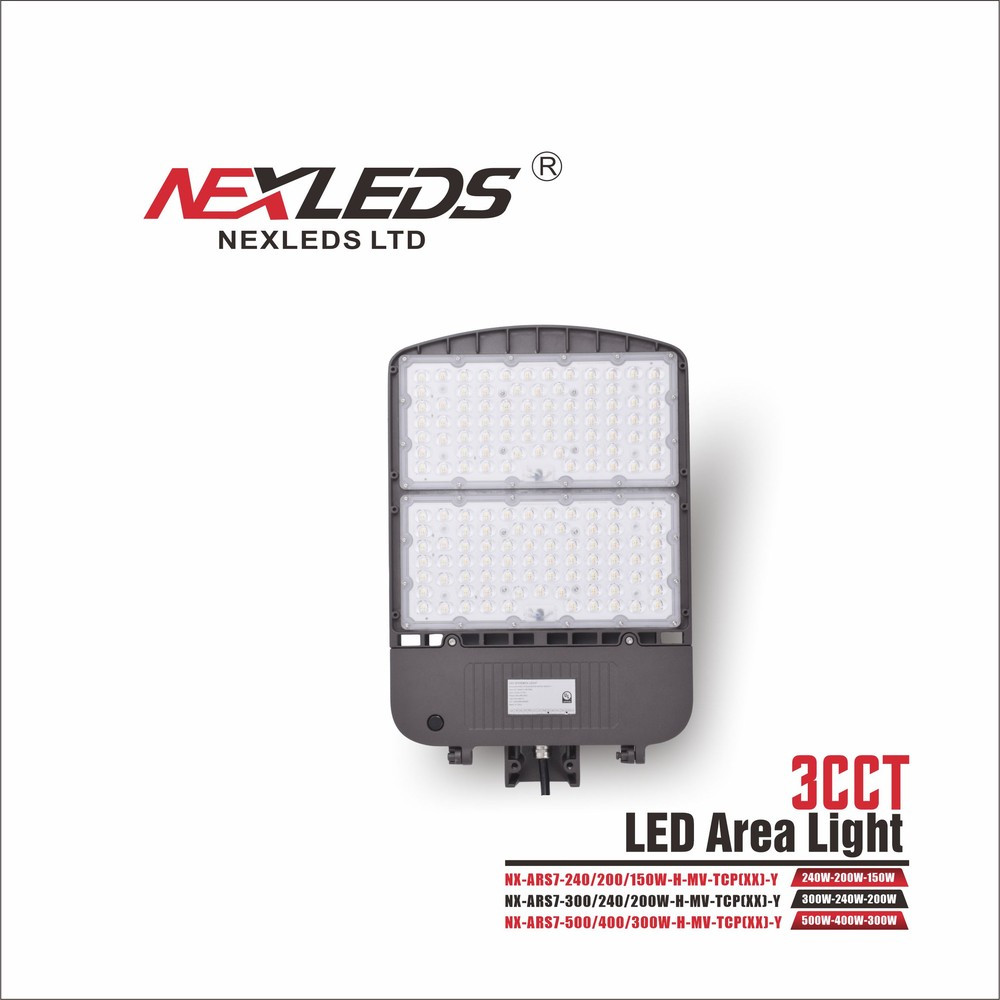

    Light up the whole yard, not just a corner of it. The NEXLEDS NX-ARS7 LED area light is a heavy-duty outdoor fixture built for parking lots, laneways and open sites — the kind of LED street light fixture people go looking for when the old HID heads finally give up. Whether you call it an area light, a shoebox parking lot light, a site light or simply an LED street lamp, this is the workhorse that puts clean, controlled light on asphalt, walkways and loading zones so people can see where they're going after dark.

    This model is selectable across three power levels — 150W, 200W and 240W — so one fixture can cover a small commercial lot or scale up for larger institutional grounds without changing product families. The multi-voltage (MV) input works with standard North American electrical systems, which takes the guesswork out of retrofits and new builds alike, and the driver is integrated inside the housing for a clean, low-maintenance profile. The real star is the TXP configurable optic system: by choosing the optic insert designated by the XX variable in the SKU, you can specify Type II, III, IV or V distribution to match a roadway, a property perimeter or a wide open area, keeping light on your site and off the neighbour's window. The housing is engineered to take what Canadian weather hands out — deep cold, rain, snow and big seasonal swings. SKU: NX-ARS7-240/200/150W-H-MV-TXP(XX)-y.

    It's a natural fit for shopping centre and condo parking lots, school and municipal grounds, car dealerships, industrial yards, truck courts, storage facilities and church or arena lots anywhere from Gaspé to Vancouver Island. Swapping legacy metal halide or high-pressure sodium area lights for this LED head can cut energy use dramatically while reducing relamping trips up the bucket truck. Need more punch or a different range? Look at the LED area light NX-ARS7 300/240/200W or the higher-output LED area light NX-ARS7 500/400/300W. Pick your wattage, pick your optic, and get the lot lit properly.

    207.97$

    Built for the Canadian outdoors
    The NX-ARS7 series from NEXLEDS is a purpose-built LED area light for commercial, industrial and municipal sites. Its robust housing is engineered to withstand harsh Canadian weather conditions — extreme cold, precipitation and the big seasonal temperature swings that wreck lesser fixtures. The LED driver is integrated within the housing, which means no external gear box hanging off the pole, a streamlined silhouette that suits modern site aesthetics, and fewer components exposed to the elements over the life of the installation.

    Three wattages, one fixture family
    This model is offered in three power settings — 150W, 200W and 240W — so a single product can serve a small strip-mall lot or a sprawling institutional campus. That flexibility matters on multi-phase projects: you can specify a lower setting over pedestrian walkways and step up the output over drive aisles and entrances while keeping identical fixtures, identical mounting and identical spare parts on the shelf. Replacing legacy HID, metal halide or high-pressure sodium area lights with this LED head can reduce energy consumption by up to 60–70%, depending on the wattage replaced, and the long rated lifespan with minimal maintenance keeps the total cost of ownership well below conventional area lighting over a ten-year horizon.

    TXP configurable optics
    The standout feature is the TXP configurable optic system. By selecting the appropriate optic insert — designated by the XX variable in the SKU — a specifier can achieve Type II, III, IV or V light distribution. Type II suits narrow roadways and walkways, Type III is the everyday choice for parking lot perimeters and side-mounted poles, Type IV throws forward from a wall or property edge, and Type V spreads light in all directions from a centre-lot pole. This flexibility helps you meet local photometric requirements and, just as importantly, minimizes spill light onto adjacent properties or light-sensitive areas — a growing concern for municipalities and residential neighbours alike.

    Technical specifications
    SKU: NX-ARS7-240/200/150W-H-MV-TXP(XX)-y
    Brand: NEXLEDS
    Wattage options: 150W / 200W / 240W
    Voltage: multi-voltage (MV), compatible with standard North American electrical systems
    Optics: TXP configurable optic system — Type II, III, IV or V
    Driver: integrated within the housing
    Application: outdoor commercial, industrial and municipal area lighting

    Where it works and what to read next
    Typical projects include shopping centre and office parking lots, condo and apartment grounds, school yards, municipal parks and pathways, dealership display lots, industrial yards, truck courts and storage facilities. Because the MV input eliminates compatibility concerns, electricians and contractors can standardize on one fixture across a portfolio of buildings with different service voltages. For bigger sites or taller poles, compare this model with the LED area light NX-ARS7 300/240/200W and the high-output LED area light NX-ARS7 500/400/300W. The full technical PDF spec sheet for NX-ARS7-240/200/150W-H-MV-TXP(XX)-y is available in the Documentation tab — download it before you finalize pole spacing and optic selection.
