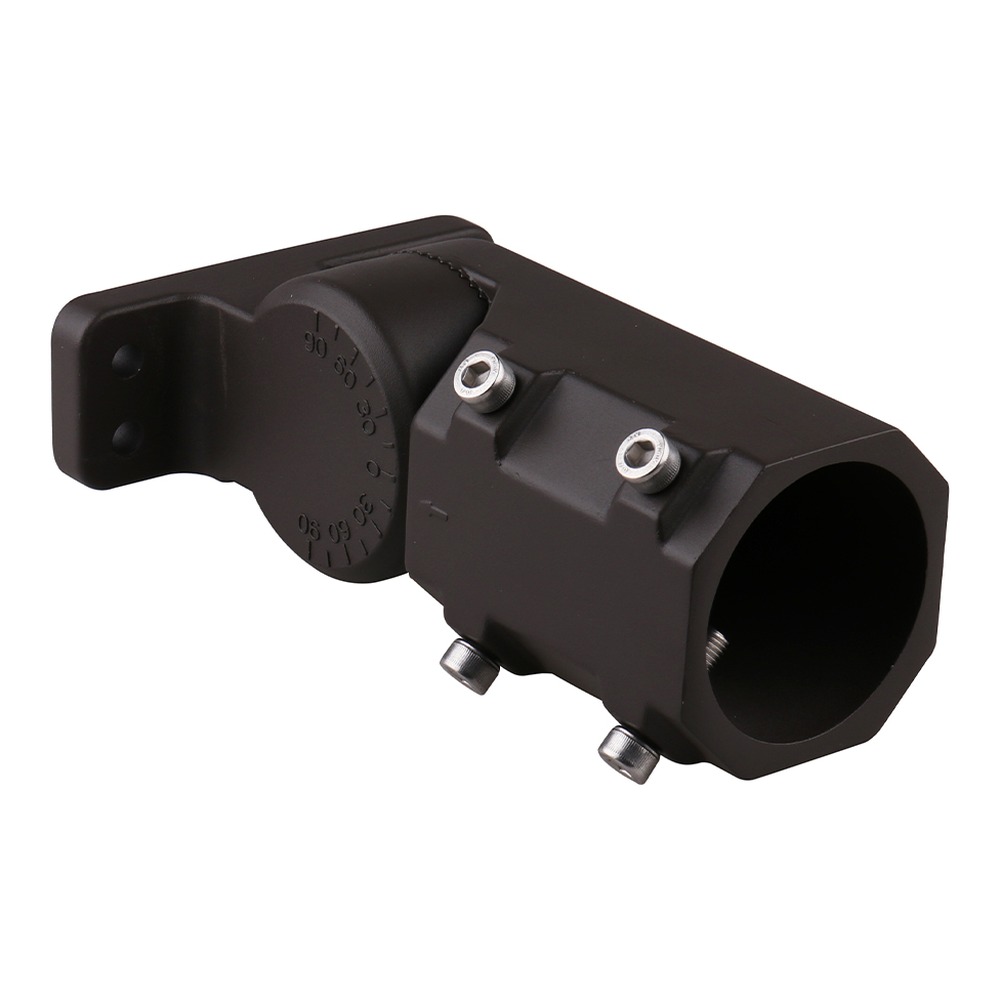

FLM MINI FLOOD LIGHT, FLOOD/AREA LIGHTS, ACCEESSORIES, SLIP FITTER MOUNT (FOR 70W AND 90W)

Name: FLM MINI FLOOD LIGHT, FLOOD/AREA LIGHTS, ACCEESSORIES, SLIP FITTER MOUNT (FOR 70W AND 90W)
Brand: CSC LED
SKU: FLM-SF
Price: 35.97 CAD
Availability: InStock

SKU: FLM-SF

Brand: CSC LED

Mounting a mini flood light on a pole shouldn't turn into an afternoon of improvising with scrap hardware. The CSC LED FLM-SF is the slip fitter mount made for the FLM Mini Flood Light family — the accessory people look for when they search "slipfitter mount LED flood lights", slip fitter bracket, tenon mount or trunnion-style flood light mount. Instead of drilling a wall or hunting for a universal adapter, you slide the fitter over a standard tenon or pole arm, tighten it down, and your mini flood is aimed exactly where the light needs to go: over a parking area, a loading dock, a driveway, a sign or a building perimeter.

This is a mounting accessory, so the story is simple and honest: it is sold separately from the fixture, it is listed by CSC LED as a compatible accessory for the FLM Mini Flood Lights, and it is designed to work with the same outdoor hardware ecosystem as the knuckle mounts, multi mounts and pole mounts in the FLM and FL05 accessory line. Choosing the accessory the manufacturer lists for the series keeps your aiming angle, your stability and your fixture's rated performance intact — something a generic mount can quietly compromise once wind, vibration and a few Canadian winters get involved. SKU to quote on your order: FLM-SF.

Where does it shine? Anywhere a mini flood has to live on a pole or tenon rather than a wall: commercial parking lots, municipal walkways, storage yards, farm buildings, car dealerships, small industrial sites and retrofit jobs where existing poles are being reused with new LED flood technology. It pairs with the FLM02 Mini Flood Light range, including the FLM02 Mini Flood Light 20W/30W/50W 3CCT and the FLM02 Mini Flood Light 55W/70W/80W 3CCT. Add it to your flood light order and show up on site with everything you need to finish the install the same day.

What the FLM-SF actually does
A slip fitter is the piece that lets a flood light grip a round tenon or pole arm instead of a flat surface. The FLM-SF is the version CSC LED lists for its FLM Mini Flood Lights, so the bolt pattern, the aiming range and the load it has to carry were all worked out around those fixtures rather than left to chance. On site that means fewer shims, fewer improvised brackets and fewer callbacks because a flood light drifted off aim after the first windstorm. It is sold separately, which is normal for pole-mounted jobs: the fixtures ship with their own yoke or knuckle mount, and the slip fitter is added only when the install calls for a tenon.

Compatibility with the FLM family
CSC LED publishes an accessory compatibility chart for the FLM02 Mini Flood Lights, and the FLM-SF Slip Fitter appears on it alongside the FLM02-KN ½" knuckle mount, the EW-M20-3P inline connector, the ratchet yoke mounts FLM02-BKT-SM and FLM02-BKT-LG, the FL-MM01-BZ multi mount, the FL-PM01-BZ pole mount and the FLM-STK stake. Use that chart — and the spec sheet in the Documentation tab — to confirm which mount goes with which wattage before you order. Complementary accessories in the same family include the FLM knuckle mount and the FL05 pole mount, plus the EW-M20-3P inline connector when you need a clean, tool-friendly wiring junction outdoors.

The fixtures it serves
The FLM02 Mini Flood Lights this hardware supports are serious little performers, and knowing their numbers helps you size the pole and the aiming height. The 15W models deliver 1856 lm at 4000K, 124 lm/W, on 120-277V with a 110° distribution. The 50W power-selectable model runs 20W/30W/50W in 3000K, 4000K or 5000K on 120-347V, up to 6883 lm at 50W/4000K. The 80W power-selectable model runs 55W/75W/80W with the same three colour temperatures on 120-347V, up to 11270 lm at 80W/4000K. All are >80 CRI, 0-10V dimmable, IP65 rated, cUL listed (E482965) and DLC Premium classified, with a die-cast aluminum housing, high-impact polycarbonate lens, bronze polyester powder coat finish, 2.5kV surge protection, >54000 hrs L70 life, an operating range of -30°C to 45°C and a 10-year warranty.

Installation and Canadian job sites
Slip fitter installs are the fastest way to light a yard: set the tenon, slide the fitter on, snug the set screws, level the flood, then aim. Because the FLM02 fixtures come with a factory power cord (20' on the 15W, 8' on the 50W and 80W) and support 0-10V dimming, a pole-mounted assembly can be tied into a control zone or a photocell strategy without extra gymnastics. The -30°C to 45°C operating range matters here: parking lots in Winnipeg, salt-air perimeters in the Maritimes and dealership lots in Québec all ask a lot of outdoor hardware, so matched components are worth the small extra line on the order.

Documentation
The FLM-SF Spec Sheet is available in the Documentation tab of this page. It includes the full FLM02 Mini Flood Lights lighting and electrical tables, DLC IDs, dimensions and weights, and the accessory compatibility chart — the quickest way to confirm your mount, fixture and wattage line up before the truck leaves the shop. Order the FLM-SF slip fitter with your floods and keep the whole assembly on one invoice.
