FL05 FLOOD LIGHT, FLOOD/AREA LIGHTS, ACCESSORIES, FIXED MOUNT - FL-FM01-BK

Built for one job, and it does it well

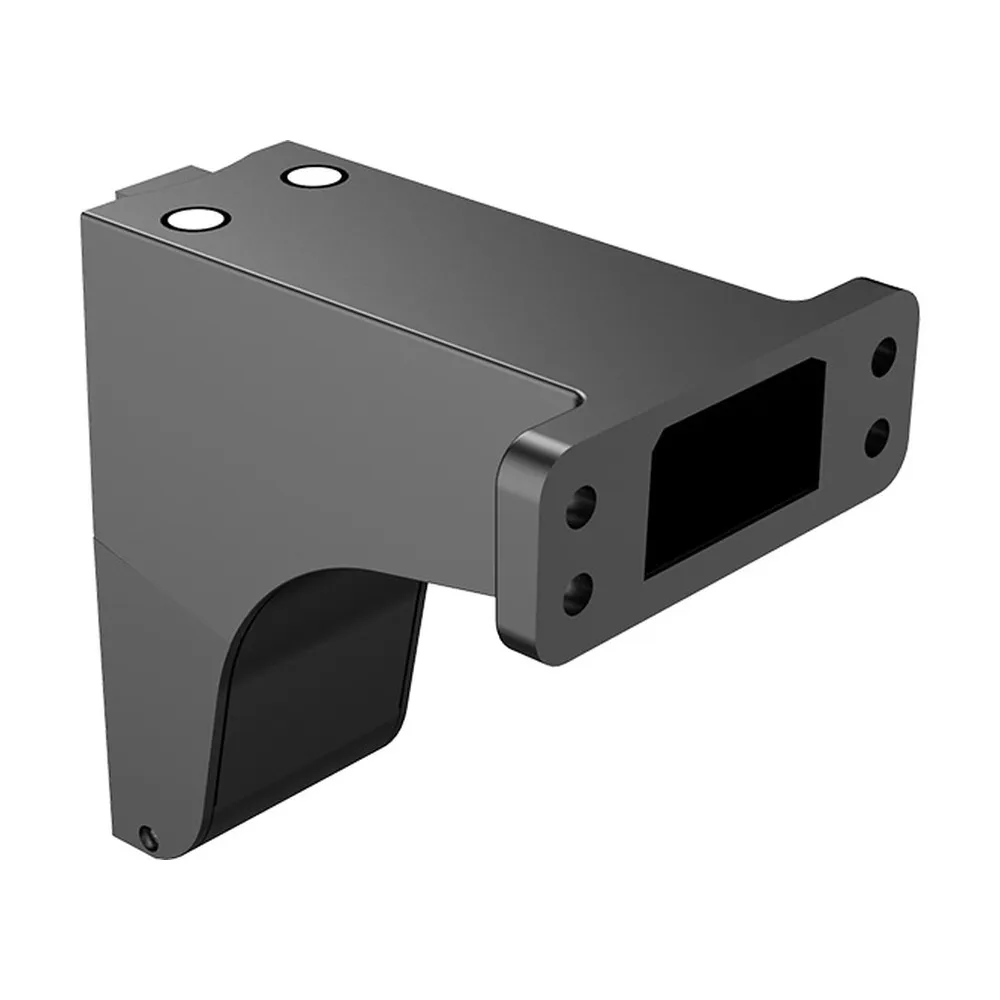

The FL-FM01-BK is a fixed mount bracket from the CSC LED FL05 mounting accessory line. Unlike an adjustable trunnion or a multi mount, a fixed mount holds the luminaire in a single, non-tilting orientation. That is exactly what you want when the light needs to stay aimed at the same wall, doorway, yard or lot for years without drifting. There are no aiming bolts to re-torque on a maintenance visit and nothing that can slowly creep out of position from wind or vibration. The black (BK) finish is the most common choice on modern commercial exteriors, where dark hardware reads as part of the building instead of standing out against it.

Dark-sky friendly by design
This is the detail many specifiers miss: according to the manufacturer's mounting documentation, FL05 fixtures are DarkSky approved when used with a Fixed Mount (no tilt) and set for 3000K operation. Because the fixed mount does not allow uptilt, the light stays directed downward where it is needed, which is the core principle behind dark-sky compliant outdoor lighting. If your municipality, campus, conservation area or condo board has adopted dark-sky friendly requirements, pairing the FL05 with the FL-FM01-BK and running the fixture at 3000K is the configuration that satisfies that approval.

Technical specifications
SKU: FL-FM01-BK
Brand: CSC LED
Type: Fixed Mount, FL05 mounting option
Product code format: FL-FM01-XX (XX denotes finish colour – BK, BZ or WH)
Finish: Black
Compatibility: CSC LED FL05 flood / area lights
Mounting: Adaptable to both round and square poles
Certification note: FL05 fixtures are DarkSky approved when used with a Fixed Mount (no tilt) and set for 3000K operation
Other finishes in the family: FL-FM01-BZ (bronze), FL-FM01-WH (white)

Installation and compatibility
Because the bracket is adaptable to both round and square poles, it handles the mixed reality of retrofit work: a square steel pole in one corner of the lot, a round pole at the entrance, a concrete or block wall at the back of the building. Decide your aiming before you fasten, since a fixed mount is not meant to be re-aimed afterward — set the fixture so the beam covers the target area, then secure it and move on. Mounting hardware and mounts in the FL05 line are sold separately from the luminaire, so confirm which bracket your site needs before the truck rolls. If a project calls for adjustable aiming instead, the FL05 family also offers the multi mount FL-MM01-BK and its bronze counterpart the multi mount FL-MM01-BZ, while pole-top area lighting uses the pole mount FL-PM01-BK.

Where it gets used, and what's in the Documentation tab
Typical Canadian applications include warehouse and distribution yards, truck courts, equipment storage compounds, church and school parking areas, arenas and outdoor rinks, commercial façades, barns and farm buildings, and residential properties where a homeowner wants a clean, permanent LED flood light aimed at the driveway or backyard. Contractors like the fixed mount on security lighting because consistent light distribution is what cameras and insurance inspections rely on — a fixture that has been nudged out of aim leaves a dark corner. For colour-matched installations, the white fixed mount FL-FM01-WH is available as well. The FL-FM01-BK spec sheet, including the FL05 mounting options overview and the dimensional drawings, is available in the Documentation tab of this page for your submittal package.
