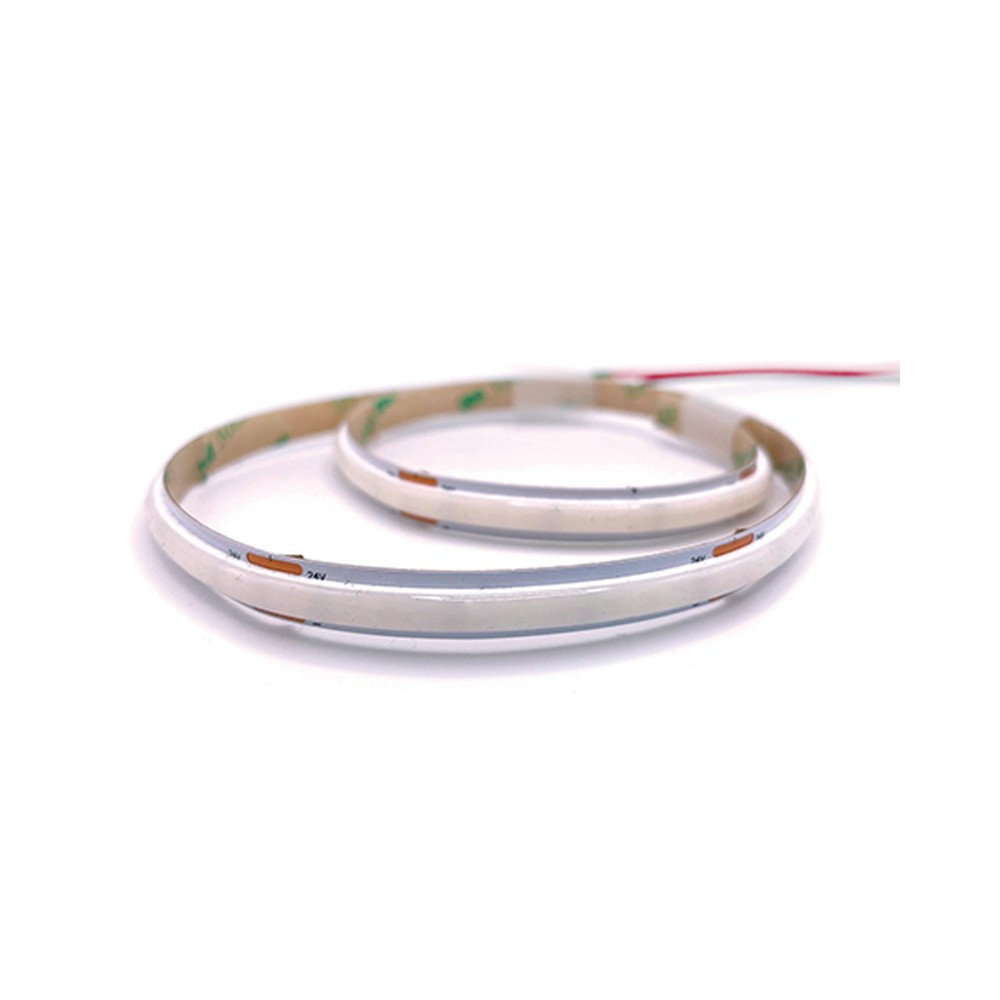

CL-ST-SOB-288-9.6-2440-3K - SOB LED STRIP LIGHT - HIGHER PERFORMANCE THAN COB STRIPS 1300LM/M 9.6 W/M 288LED/M 24VDC CRI 80+ PCB WIDTH 8MM 5M/ROLL IP40 3000K

Name: CL-ST-SOB-288-9.6-2440-3K - SOB LED STRIP LIGHT - HIGHER PERFORMANCE THAN COB STRIPS 1300LM/M 9.6 W/M 288LED/M 24VDC CRI 80+ PCB WIDTH 8MM 5M/ROLL IP40 3000K
Brand: CANOLIGHT
SKU: CL-ST-SOB-288-9.6-2440-3K
Price: 43.97 CAD
Availability: InStock

SKU: CL-ST-SOB-288-9.6-2440-3K

Brand: CANOLIGHT

Say goodbye to that row of tiny dots in your light channel. The CANOLIGHT SOB LED strip light uses Surface On Board technology, which mounts the LED dies directly on the flexible circuit board under one continuous phosphor layer, so what you see is a smooth, dot-free line of light instead of a string of hot spots. If you have been searching for LED strip lights, LED light strips, LED strip lighting or LED lighting strips for a real architectural finish, this is the step up from ordinary COB tape — brighter and more consistent, with the same easy flexible format. It is made for the places where the light source is on display or reflected: under-cabinet and countertop lighting, cove and ceiling details, stair and hallway accents, toe-kick lighting, closet and pantry shelving, display cases, millwork reveals and backlit panels.

This strip delivers 1300 lm per metre while drawing only 9.6 W per metre, a very generous amount of usable light for an accent or task run, and it packs 288 LED per metre for that seamless linear look. It runs on 24 VDC constant voltage, which keeps long runs even and stable, and the CRI greater than 80 rendering keeps wood grain, paint colours, food and fabrics looking natural rather than washed out. The 8 mm PCB width slips into slim aluminum channels and tight millwork grooves where a wider tape simply will not fit. The strip is cUL listed for Canadian electrical safety, it is compatible with most leading-edge and trailing-edge dimmers for smooth flicker-free dimming, and it is engineered with a thermal management design that spreads heat across the flexible PCB to protect brightness and colour stability over time.

Kitchens, bathrooms, basements, home offices, retail displays, reception desks, restaurant bars and hotel corridors all benefit from a clean line of light instead of visible diodes — and in Canadian renovations, where LED tape often replaces old halogen or fluorescent under-cabinet fixtures, the energy savings are immediate. Cut the strip at the marked intervals, solder or use snap-on connectors, then stick it down with the adhesive backing or clip it into an aluminum extrusion channel, which also works as a passive heat sink. Pair it with a quality constant voltage 24 V LED driver sized for your total run length and load. Order SKU CL-ST-SOB-288-9.6-2440-3K and give your project the continuous glow that trim, coves and cabinets deserve.

Surface On Board construction
Conventional strips place individual LED packages at intervals along the tape, which is why you see dots and scalloping on nearby surfaces. This SOB LED strip instead bonds the LED dies straight onto the flexible printed circuit board and covers them with a single uniform phosphor layer, creating one unbroken emitting surface. At 288 LED per metre, the density is high enough that the light reads as a solid line even when the strip is only a few centimetres from a shelf, a mirror or a ceiling cove. The result is a cleaner, more expensive-looking installation than standard LED light strips, with better brightness and uniformity than typical COB tape.

Light quality and output
Output is 1300 lm per metre for 9.6 W per metre, so a run can serve as genuine task lighting over a countertop or workbench, not just a decorative wash. Colour rendering is CRI greater than 80, which matters when the light falls on food preparation surfaces, wood cabinetry, paint samples, clothing in a closet or merchandise on a shelf — colours stay true instead of turning grey or yellowish. Because the phosphor layer is continuous, colour and brightness stay even along the whole length, with none of the patchy look you get when individual diodes age at different rates.

Technical specifications
SKU: CL-ST-SOB-288-9.6-2440-3K
Brand: CANOLIGHT
Technology: SOB (Surface On Board) LED strip
Luminous flux: 1300 lm/m
Power: 9.6 W/m
LED density: 288 LED/m
Input: 24 VDC constant voltage
Colour rendering: CRI >80
PCB width: 8 mm
Certification: cUL listed
Dimming: compatible with most leading-edge and trailing-edge dimmers

Electrical and installation details
This is a 24 VDC constant voltage product, so it must be fed by a matching LED driver or power supply; add up the metres you plan to install, multiply by the 9.6 W per metre figure, and choose a driver with comfortable headroom above that total. The strip cuts at the marked intervals and can be joined by soldering or with snap-on terminal connectors, and it mounts with its adhesive backing or, better, inside a clip-in aluminum extrusion channel. Those channels do double duty: the diffuser lens softens the line even further, and the aluminum body acts as a passive heat sink that helps the strip hold its brightness and colour over tens of thousands of hours. Keep the tape off raw wood and dusty surfaces when using adhesive only, and avoid tight kinks at corners — use a corner connector or a gentle loop instead. Because this is an indoor strip, keep it out of wet and damp locations and away from direct water contact.

Applications and documentation
Homeowners use it under kitchen cabinets, above crown moulding, along stair stringers, inside pantry and closet shelving, behind bathroom mirrors and in basement coves. Contractors specify it for reception desks, retail display cases, restaurant bars, bakery counters, hotel corridors and office millwork where a visible dotted line of LEDs would cheapen the design. Its 8 mm PCB width makes it a good fit for narrow routed grooves and slim profiles in custom cabinetry. The technical PDF spec sheet for CL-ST-SOB-288-9.6-2440-3K is available in the Documentation tab of this page — download it before ordering your driver, channels and connectors so your LED strip lighting layout is right the first time.
