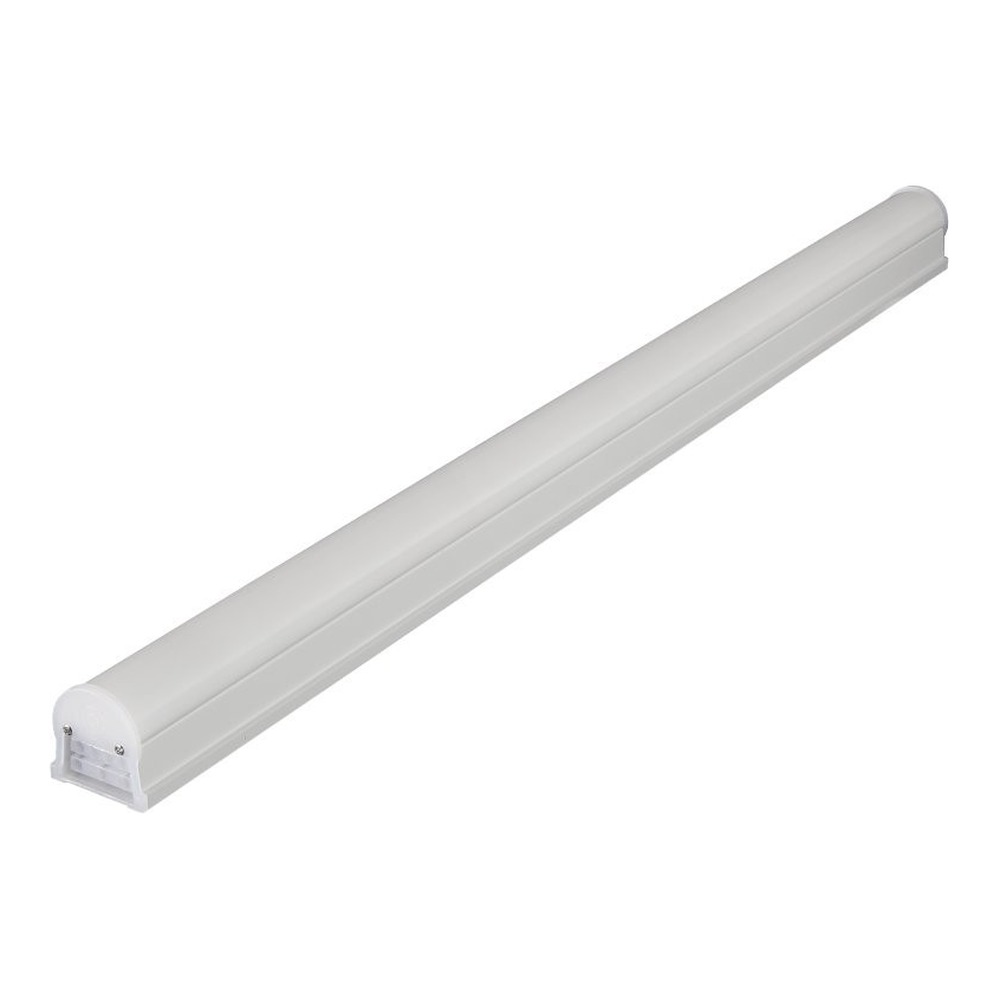

4FT PRO WARM INTERNAL DRIVE LIGHT BAR 120-277V

Name: 4FT PRO WARM INTERNAL DRIVE LIGHT BAR 120-277V
Brand: LIGHT EFFICIENT DESIGN
SKU: RP-LBI-G1-4F-15W-27K-WC2
Price: 107.99 CAD
Availability: InStock

SKU: RP-LBI-G1-4F-15W-27K-WC2

Brand: LIGHT EFFICIENT DESIGN

Warm, inviting light in a slim strip you can install almost anywhere — that's the promise of the 4FT Pro Warm Internal Drive Light Bar from Light Efficient Design. Also called a LED light bar, LED linear fixture, under cabinet task light or simply a 4 ft linear LED lighting strip, this bar was built to do the jobs a bulky fixture can't: glowing under kitchen and millwork cabinets, hiding inside display cases and retail shelving, washing a backsplash or a bar counter, lining a workbench, or running end to end above a merchandising wall. It is a surface mount fixture that reads as a clean line of light rather than a piece of equipment, which is exactly why designers, cabinetmakers and contractors keep reaching for it.

This is the selectable-wattage and selectable-CCT version: three field-choosable wattages of 10W, 15W or 25W delivering 1260 to 3400 lumens, and three selectable colour temperatures of 2700K, 3000K and 3500K — from candle-warm incandescent feel to a soft, neutral warm white — all set right on the bar, no re-ordering. 80+ CRI keeps wood grain, food, fabrics and skin tones looking true. The internal driver is built in, so there's no remote driver box to hide, and the universal 120-277V input plus a power factor >0.9 and THD under 20% make it clean on any commercial panel. It's a UL 1598 listed fixture (Class B), rated L70 >100,000 hours, and it runs from -13°F to 140°F. An optional emergency battery backup version is offered in the family.

Across Canada it earns its keep in kitchens and pantries, condo millwork, bakery and deli display cases, boutiques and jewellery counters, hotel lobbies, offices, garages, workshops and cold back-of-house rooms where many fixtures give up. SKU RP-LBI-G1-4F-15W-27K-WC2 links with the shorter bars — the 2FT Pro Warm CCT internal drive light bar and the 3FT Pro Warm internal drive light bar — to build continuous runs, and can be powered quickly with the 7FT incoming power cord with switch. Plan your run, choose your wattage and CCT on site, and light it up.

Built as a true linear system, not just a strip
The RP-LBI-G1 platform is a LEDBARKIT with internal driver (LBI), engineered as an under cabinet task fixture that scales up into full architectural runs. Everything lives in one slim extrusion: LEDs, optic and driver. That single-body design is what makes it so quick to specify — you're not sizing a remote power supply, not finding a spot for a driver enclosure, and not running low-voltage home runs across a ceiling or a cabinet gable. For finished spaces where the fixture is partly visible, the result is a tidy, uninterrupted line of light instead of a tangle of wire and hardware.

Light quality you can tune on the job
This SKU is the Pro Warm CCT build, meaning three selectable colour temperatures: 2700K, 3000K and 3500K. Warm 2700K recreates the welcoming glow of incandescent and halogen for hospitality, retail and residential millwork; 3000K is the classic Canadian residential warm white; 3500K steps toward a cleaner, more commercial tone for offices and task areas. Wattage is selectable too — 10W, 15W or 25W — for an output range of 1260 to 3400 lumens, so one part number covers a subtle under-shelf accent and a hard-working task bar. With 80+ CRI, colours stay honest: baked goods look fresh, veneers look rich, merchandise looks like it does in daylight.

Technical specifications
SKU: RP-LBI-G1-4F-15W-27K-WC2
UPC: 844006024840
Description: 4FT PRO WARM CCT INTERNAL DRIVE LIGHT BAR
Wattage: 10/15/25W selectable
Lumens: 1260-3400
CCT: 2700K / 3000K / 3500K selectable
CRI: 80+
Voltage: 120-277V
Power factor: >0.9
THD: <20%
Rated life: L70 >100,000 hours
Operating temperature: -13°F to 140°F
Listing: UL 1598 listed fixture, Class B
Optional: emergency battery backup (EMG)

Wiring, mounting and accessories
The universal 120-277V input means the same bar goes into a 120V residential kitchen or a 277V commercial panel without changing product. Surface mount brackets are included, and the accessory line adds a 45° bracket for angling light onto shelves or a backsplash, linking cables in 6IN, 12IN and 18IN to jump gaps and corners, a seamless connector for butt-joined runs with no dark spot, and an OC3 sensor kit — the practical answer to the common search for a motion sensor light bar in closets, pantries and storage rooms. For plug-in installs, the 2FT incoming power cord with switch and the 7FT incoming power cord with switch include an output cap and let you energize a run in minutes.

Building runs and choosing the right bar
Mix lengths to fit real cabinetry and real walls: pair this 4-foot bar with the 2FT Pro Warm CCT light bar and the 3FT Pro Warm light bar to fill a wall of millwork edge to edge. If the project calls for cooler light, the same 4-foot body is available as the 4FT Pro internal drive light bar with 3500/4000/5000K, or as the fixed-output 4FT Base internal drive light bar at 4000K. Think grocery and deli cases, café back bars, cannabis and retail display gondolas, reception desks, garage workbenches, laundry rooms and stairwell coves.

Documentation
The full technical spec sheet for RP-LBI-G1-4F-15W-27K-WC2 is available in the Documentation tab, with the complete ordering guide, accessory list and performance data — worth downloading before you finalize quantities and linking cable lengths.
