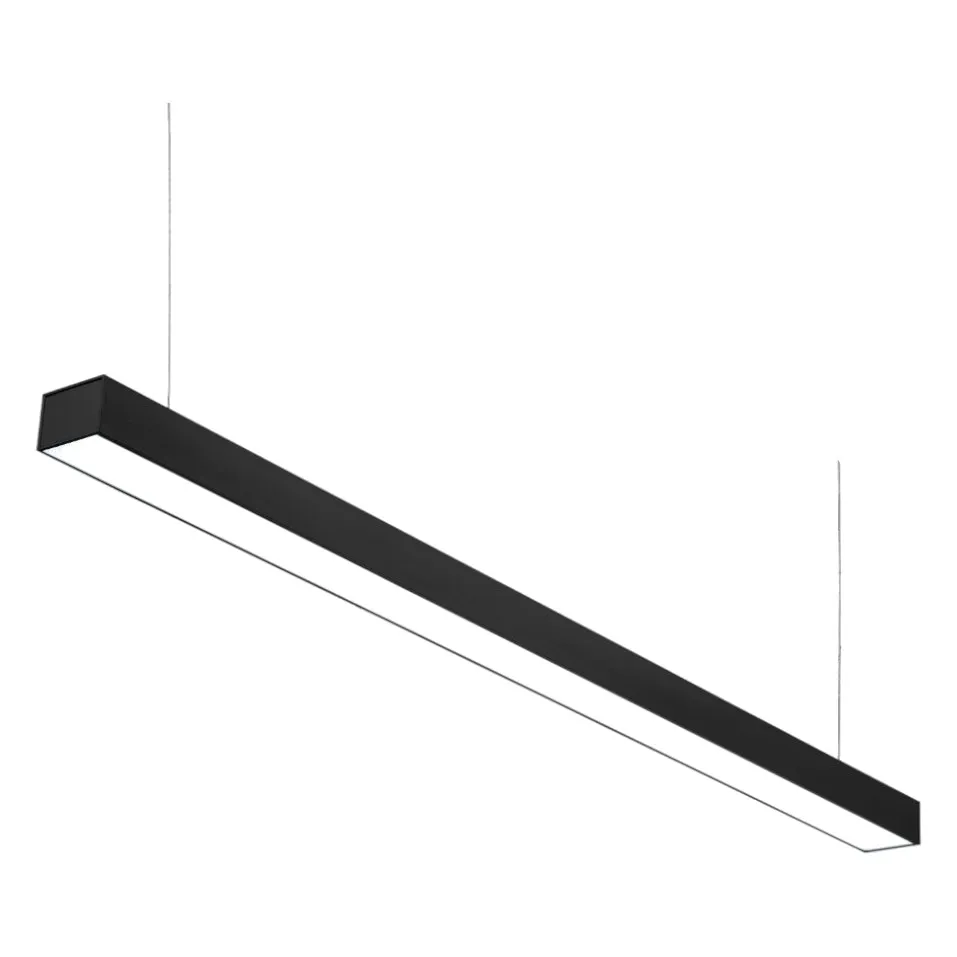

4' LINEAR SUSPENDED LUMINAIRE CCT (MW)

Name: 4' LINEAR SUSPENDED LUMINAIRE CCT (MW)
Brand: LEDCO
SKU: LCSUSP-D-4FT-BK-40W-CCT
Price: 157.97 CAD
Availability: InStock

SKU: LCSUSP-D-4FT-BK-40W-CCT

Brand: LEDCO

One fixture, many possibilities: this linear suspended luminaire lets you choose both the colour of the light and the power level. Known as a CCT linear pendant, a multi-wattage linear LED light or simply linear LED lighting, this 4-foot black fixture hangs from the ceiling to light offices, classrooms, retail stores, restaurants, kitchens and workshops with clean, uniform light. It is a smart pick for contractors and designers who want one model that adapts to every room of a residential or commercial project.

The LCSUSP-D-4FT-BK-40W-CCT has a multi-watt selector with three settings, 24, 32 or 40W, delivering 2,640, 3,520 or 4,400 lumens, and 3 selectable colour temperatures: 3500K, 4000K or 5000K. Its 90° beam angle ensures efficient, uniform lighting, and 0-10V dimming compatibility adds fine control. The robust aluminium casing in a black finish is 48'' long, accepts a 120-347V input and operates from -20 to 45°C. Suitable for damp locations (IP44), rated for 50,000 hours and backed by a 5-year warranty, it is built for the long haul.

It shines in open offices, over boardroom tables, in classrooms, retail aisles and restaurants, and over kitchen islands, while its IP44 damp-location rating suits basements and other humid spaces. Up to 8 fixtures can be linked together to create continuous runs of light over long workstations or aisles, and several suspension options (rope suspension, canopy suspension or linkable installation) adapt to every ceiling. For Canadian businesses, where lights run long hours through the winter, the selectable wattage helps balance brightness and energy use. Need more output? See the black 50W version of the 4' linear suspended luminaire CCT (MW), or the white 40W version. Choose the linear pendant that fits your project.

Flexible by design
This 4' linear suspended luminaire CCT (MW) was designed to simplify projects: instead of stocking several models, you simply select the wattage and the colour temperature that suit each space. The robust aluminium casing with its black finish draws a sleek, modern line that fits offices, stores, restaurants and homes alike, and its 48'' length makes it easy to plan rows over desks or aisles. The LCSUSP-D-4FT-BK-40W-CCT is suitable for damp locations with IP44 protection.

Light output and colour temperatures
The multi-watt selector offers three settings, 24, 32 and 40W, for 2,640, 3,520 and 4,400 lumens respectively. Choose 3500K for a soft, welcoming white in restaurants, lobbies or homes, 4000K neutral white for offices and schools, or 5000K for a crisp, daylight-like light in workshops and retail spaces. The 90° beam angle provides efficient and uniform lighting, and 0-10V dimming compatibility lets you adjust the level to the time of day. With a 50,000-hour lifespan and a 5-year warranty, it is a long-term investment.

Electrical and installation details
The luminaire accepts a 120-347V input, covering standard 120V circuits as well as 347V commercial distribution, and operates from -20 to 45°C. The spec sheet illustrates several suspension-mount installations: rope suspension, canopy suspension and linkable installation, with up to 8 fixtures linked together. For dimming, connect it to a compatible 0-10V dimmer. Installation should be carried out by a qualified electrician, with the power off at the breaker and according to the electrical code.

Applications
In offices, link several fixtures over rows of desks for a continuous line of light; in classrooms and training rooms, choose 4000K and dim for presentations. Retailers can hang them over aisles and cash counters, restaurants over tables and bars, and homeowners over a kitchen island or a home office desk. Contractors appreciate being able to adapt the light level and colour to each room, which simplifies ordering on multi-room projects. Also in the same family, the silver 40W version suits lighter ceilings and modern offices.

Technical specifications
Model: LCSUSP-D-4FT-BK-40W-CCT
Power: 24 / 32 / 40W (selectable)
Luminous flux: 2,640 / 3,520 / 4,400 lm
Colour temperature: 3500K / 4000K / 5000K (selectable)
Beam angle: 90°
Input voltage: 120-347V
Dimming: 0-10V
Length: 48''
Finish: black
Protection: IP44, damp locations
Operating temperature: -20 to 45°C
Linkable: up to 8 fixtures
Lifespan: 50,000 hours
Warranty: 5 years
The spec sheet, with the technical drawing and installation diagrams, is available in the Documentation tab.
