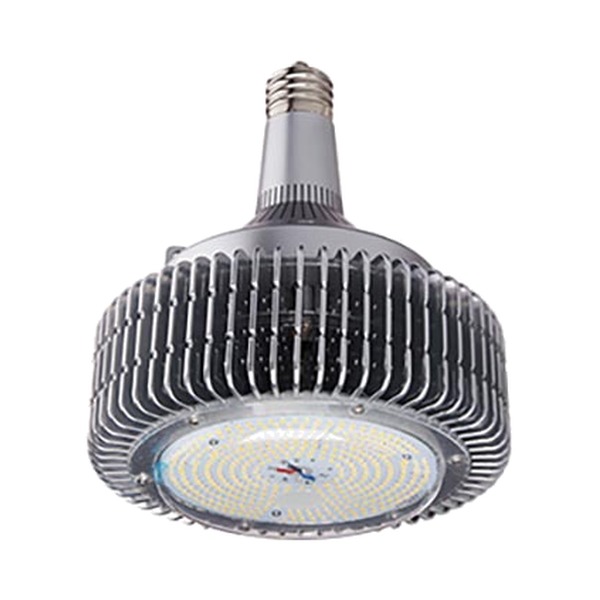

135W OPEN RATED HIGH BAY RETROFIT, REPLACES UP TO 400W HID, EX39, 5000K 120-277V -LED-8132M50CD

Name: 135W OPEN RATED HIGH BAY RETROFIT, REPLACES UP TO 400W HID, EX39, 5000K 120-277V -LED-8132M50CD
Brand: LIGHT EFFICIENT DESIGN
SKU: LED-8132M50CD
Price: 218.99 CAD
Availability: InStock

SKU: LED-8132M50CD

Brand: LIGHT EFFICIENT DESIGN

Swap the lamp, keep the fixture, and watch your shop light up like a brand-new building. The LED-8132M50CD from Light Efficient Design is a screw-in LED high bay retrofit — also called a corn lamp, mogul base retrofit lamp or HID replacement bulb — built to drop straight into the open high bay fixtures already hanging over your floor. With its EX39 mogul base, it threads into most standard HID high bay reflectors and replaces up to 400W HID metal halide or high-pressure sodium without rewiring, without new housings and without a lift crew tearing your ceiling apart. If you have been searching for high bay lighting, LED high bay lights or a straightforward lighting retrofit for a warehouse, garage or shop, this is the fastest route from tired orange light to crisp, instant-on white.

The numbers do the selling here. This lamp draws just 135W and delivers 19,200 lumens of 5000K daylight white light, with a 80+ CRI that makes labels, colour codes and safety markings read clearly from the floor. It runs on 120-277V and also works on 208V and 240V, so the same part number fits site after site. As a "D" model it is continuously dimmable down to 20% through a wired 0-10V dimming circuit, and it includes 12V auxiliary power for sensors — perfect for occupancy or daylight controls. Dual-stage MOV protection with integrated 10kA surge protection guards the USA-designed LED driver, which is pretested, potted and burned in three times before shipping to resist vibration and moisture. Rated life is 50,000 hours (L70), operating temperature spans -40°F to 122°F, and the fanless design runs silently in open fixtures measuring 10.0" x 8.7".

This retrofit belongs in distribution centres, manufacturing floors, sports facilities, big-box retail, municipal garages, arenas and farm buildings — anywhere an old HID high bay takes minutes to strike and still leaves dark aisles. The wide cold-weather range suits unheated Canadian warehouses and loading docks, and the damp-environment engineering, plus insect and dust protection, keeps it reliable in dusty shops. Need a different output or colour? Compare the 135W 4000K version, the non-dimmable LED-8132M50D, or step up to the 150W LED-8130M50CD. Order yours and re-lamp your high bays this week.

Built for open high bay fixtures
The LED-8132M50CD belongs to Light Efficient Design's 8130 / 8132 / 8136 screw-in high bay retrofit family, a series available in 90W, 135W and 150W models replacing up to 400W HID. This 135W version is open rated, meaning it is expertly engineered to work efficiently in open fixtures and damp environments while staying protected against insects and dust. Its fanless design means silent operation with no moving parts to clog or fail — and it also means this lamp is intended for open fixtures only, not sealed or enclosed housings. The lamp body measures 10.0" x 8.7", a familiar footprint for classic aluminum HID reflectors and pendant high bays.

Light quality and output
At 5000K, the light is a clean daylight white that mimics natural daylight, sharpens perceived brightness in tall open spaces and helps keep crews alert through long shifts. With 80+ CRI, colour-coded wiring, inventory labels, paint work and quality-control inspections all read accurately. The 19,200 lumens produced from only 135W replace up to a 400W HID source, and unlike metal halide there is no warm-up and no restrike delay: flip the switch and you get full output instantly, which pairs beautifully with motion sensors.

Technical specifications
SKU: LED-8132M50CD
Brand: Light Efficient Design
Wattage: 135W
Replaces: up to 400W HID
Lumens: 19,200
Colour temperature: 5000K
CRI: 80+
Base: EX39 mogul base
Voltage: 120-277V (also works on 208V and 240V)
Dimming: continuously dimmable down to 20% with a wired 0-10V circuit
Auxiliary power: 12V for sensors
Surge protection: dual stage MOV with integrated 10kA surge
Rated life: 50,000 hours (L70)
Operating temperature: -40°F to 122°F
Fixture type: open fixtures
Dimensions: 10.0" x 8.7"
UPC: 844006080006
DLC code: S-RM2W8C

Electrical, installation and controls
Installation is a true lamp swap: shut off power, remove the old HID lamp, verify the fixture is open type, then thread the LED-8132M50CD into the EX39 mogul socket. The USA designed and specified LED driver is pretested, potted and burnt in three times prior to shipping, and it is protected against vibration and moisture — a real advantage above conveyor lines, overhead doors and press equipment. The multi-volt 120-277V input covers 120V single-phase panels and 277V commercial feeds alike, and it also works on 208V and 240V. For 0-10V dimming, run the dimming pair to the lamp's wired circuit for smooth control down to 20%, and use the integrated 12V auxiliary output to feed an occupancy or daylight sensor so aisles dim when nobody is there. Dynamic temperature control supports a longer, brighter life.

Applications, family and documentation
Think distribution centres and racking aisles, machine shops, welding bays, arenas and gymnasiums, big-box retail, municipal garages, hangars and agricultural barns — plus unheated Canadian docks where the -40°F rating matters. Within the same family you can mix wattages and colours across one building: the 135W 4000K LED-8132M40CD for a warmer white, the 150W LED-8130M40CD for higher ceilings, or the 90W LED-8136M40CD where 250W HID fixtures are being converted. For outdoor areas of the same site, the brand's shoe box and wall pack retrofits such as the 110W shoe box / wall pack retrofit use the same EX39 approach. The full technical PDF for the 8130 / 8132 / 8136 series, with the complete ordering table, is in the Documentation tab.
