110W SHOE BOX/WALL PACK RETROFIT - REPLACES UP TO 400W HID - EX39 - 3000K/4000K/5000K 120-277V

Name: 110W SHOE BOX/WALL PACK RETROFIT - REPLACES UP TO 400W HID - EX39 - 3000K/4000K/5000K 120-277V
Brand: LIGHT EFFICIENT DESIGN
SKU: LED-8090M345D-G4
Price: 332.99 CAD
Availability: InStock

SKU: LED-8090M345D-G4

Brand: LIGHT EFFICIENT DESIGN

Tired of climbing a ladder every couple of years to swap a burned-out metal halide lamp? The 110W shoe box / wall pack LED retrofit from LIGHT EFFICIENT DESIGN (SKU LED-8090M345D-G4) screws straight into the mogul base EX39 socket you already have and turns a tired HID fixture into a modern LED head in minutes. People look for this lamp under many names — corn bulb, HID retrofit lamp, screw-in LED retrofit, ampoule EX39, parking lot pole light bulb — and they all point to the same idea: keep the housing, change the light source. It's made for parking lot shoe box poles, building-mounted wall packs, yard and laneway lighting, loading docks and any exterior fixture still running an old high-intensity discharge lamp.

This model delivers 110W of LED power and replaces up to 400W HID, so you cut the energy bill hard while keeping the light levels your site needs. It's a selectable 3-colour-temperature (3CCT) lamp: 3000K, 4000K and 5000K, chosen right on the lamp, which means one part number covers warm entrance lighting, neutral white parking areas and crisp security white. The 80+ CRI output keeps vehicle colours, signage and faces looking natural for better recognition on camera and on foot. It runs on 120-277V (it also works on 208V and 240V), is enclosed fixture safe and approved for damp locations, and carries a 50,000-hour rated life with L70/L90 performance plus surge protection. An active cooling fan and thermal sensor keep it running cool, and it's rated for operating temperatures from -40°F to 122°F — exactly what a Canadian winter and a July heat wave demand.

It shines on commercial parking lots, condo and apartment grounds, municipal yards, farm buildings, warehouse exteriors, school and church properties, and home garages or driveways with an old pole light. The light panel rotates once the base is tightened, so you can aim the output out of the fixture instead of into the reflector, and included support feet help prevent socket sag in heavy shoe box heads. Need a different input? The same lamp is offered as the 110W shoe box/wall pack retrofit 277-480V. Smaller fixtures are covered by the 80W EX39 retrofit and the 30W EX39 retrofit. Upgrade your site lighting this week — the socket is already there.

Built for real outdoor fixtures

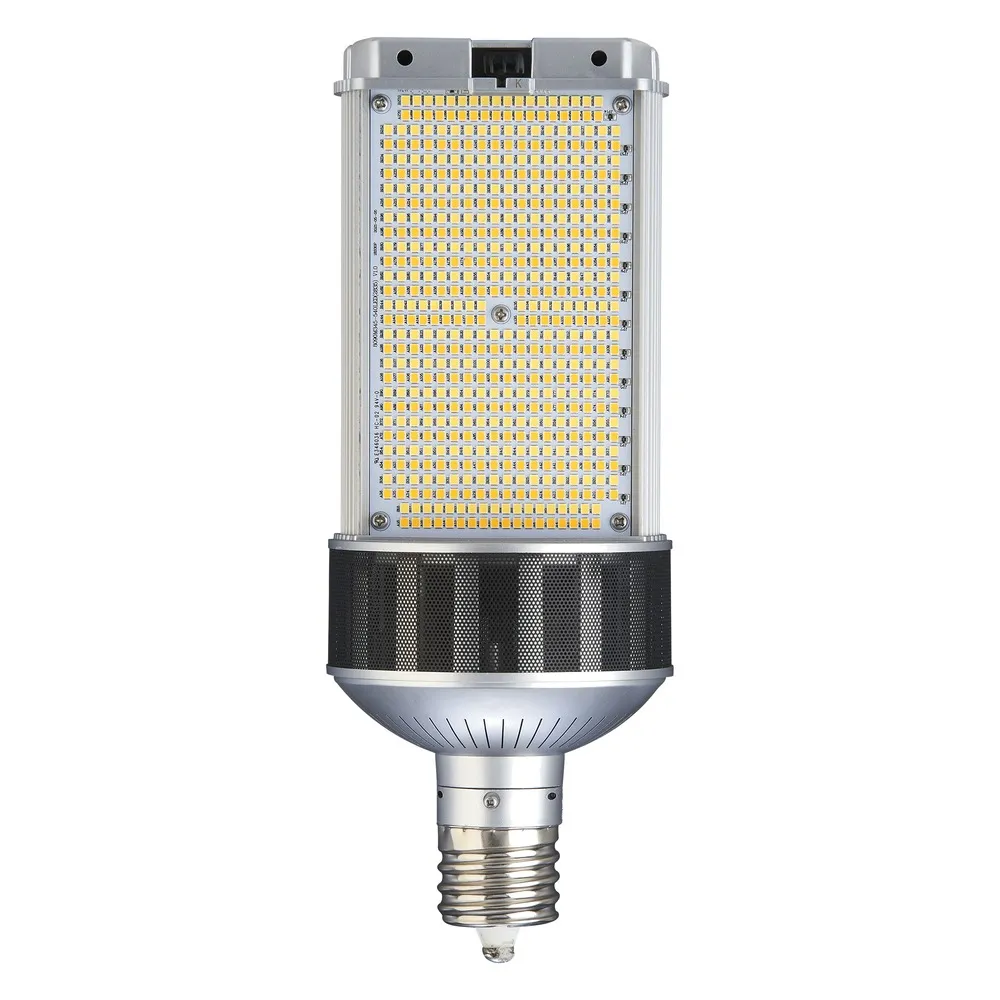

This screw-in LED retrofit was engineered for the two workhorses of exterior lighting: the shoe box pole head and the wall pack. Instead of a fixed lamp shape that fires light into the reflector, the light panel rotates once the base is tightened, letting you point the LED array down and out through the lens for a usable beam on the pavement. The lamp includes support feet that prevent socket sag, a common problem when a heavier retrofit hangs off an aging mogul socket in a tilted housing. It is enclosed fixture safe and approved for damp locations, so it can stay behind the glass or polycarbonate lens of your existing fixture.

Light quality and colour selection
Marked as a 3CCT lamp, it offers three selectable colour temperatures — 3000K, 4000K and 5000K. Warm 3000K suits residential frontages and hospitality entrances; 4000K neutral white is the go-to for parking areas and commercial façades; 5000K reads bright and secure for industrial yards and camera coverage. With 80+ CRI, colours stay true, which matters when staff identify vehicles, read plates or check inventory outside after dark. Combined with a rated life of 50,000 hours and L70/L90 lumen maintenance data, brightness holds up season after season.

Technical specifications
SKU: LED-8090M345D-G4
Brand: LIGHT EFFICIENT DESIGN
Wattage: 110W
Replaces: up to 400W HID
Colour temperature: 3000K / 4000K / 5000K selectable
CRI: 80+
Base: EX39 mogul base
Voltage: 120-277V (also works on 208V & 240V)
Rated life: 50,000 hrs
Operating temperature: -40°F to 122°F
Cooling: active cooling with fan and thermal sensor
Other: surge protection, enclosed fixture safe, approved for damp locations

Electrical and installation notes
The wide 120-277V input means the same lamp works on a 120V residential circuit, a 208V or 240V multi-family panel, or a 277V commercial feed — handy when one property mixes voltages. Installation is a true retrofit: kill the power, remove the old metal halide or high-pressure sodium lamp, screw the LED into the existing EX39 mogul socket, rotate the light panel toward the opening and close the fixture. The existing HID ballast must be bypassed or removed per the manufacturer's instructions and local code, so a licensed electrician is the safe call. The built-in fan and thermal sensor handle the heat inside a sealed housing, and the wide -40°F to 122°F range covers Prairie cold snaps and summer rooftop temperatures alike.

Applications, family and documentation
Think strip-mall parking lots in Laval, condo visitor parking in Vancouver, a farm yard light near Brandon, a municipal garage in Sherbrooke, or a contractor's shop wall pack that's been dim for years. For 347V and 480V services common in Canadian commercial buildings, look at the 110W shoe box/wall pack retrofit 277-480V. To match smaller fixtures on the same site, the family includes the 80W EX39 retrofit replacing up to 250W HID, the 50W E26 retrofit replacing up to 175W HID and the 30W E26 retrofit replacing up to 100W HID. The full technical spec sheet (LED-8090M345D-G4) is available in the Documentation tab for model codes, dimensions and lumen data.
