Why a vapour barrier box matters
In an insulated wall, the polyethylene sheet on the warm side keeps indoor moisture from migrating into the insulation and the framing. Each electrical box cut into that sheet interrupts it, and moist indoor air can find its way around the box. This ARANI vapour barrier for single boxes is designed to maintain the integrity of insulated walls: it wraps a standard single-gang box and offers a reliable seal, so the wall's vapour barrier stays continuous from one stud bay to the next. The result is a cleaner job and a wall that performs the way it was designed to.
Clear polyethylene, built for Canadian temperatures

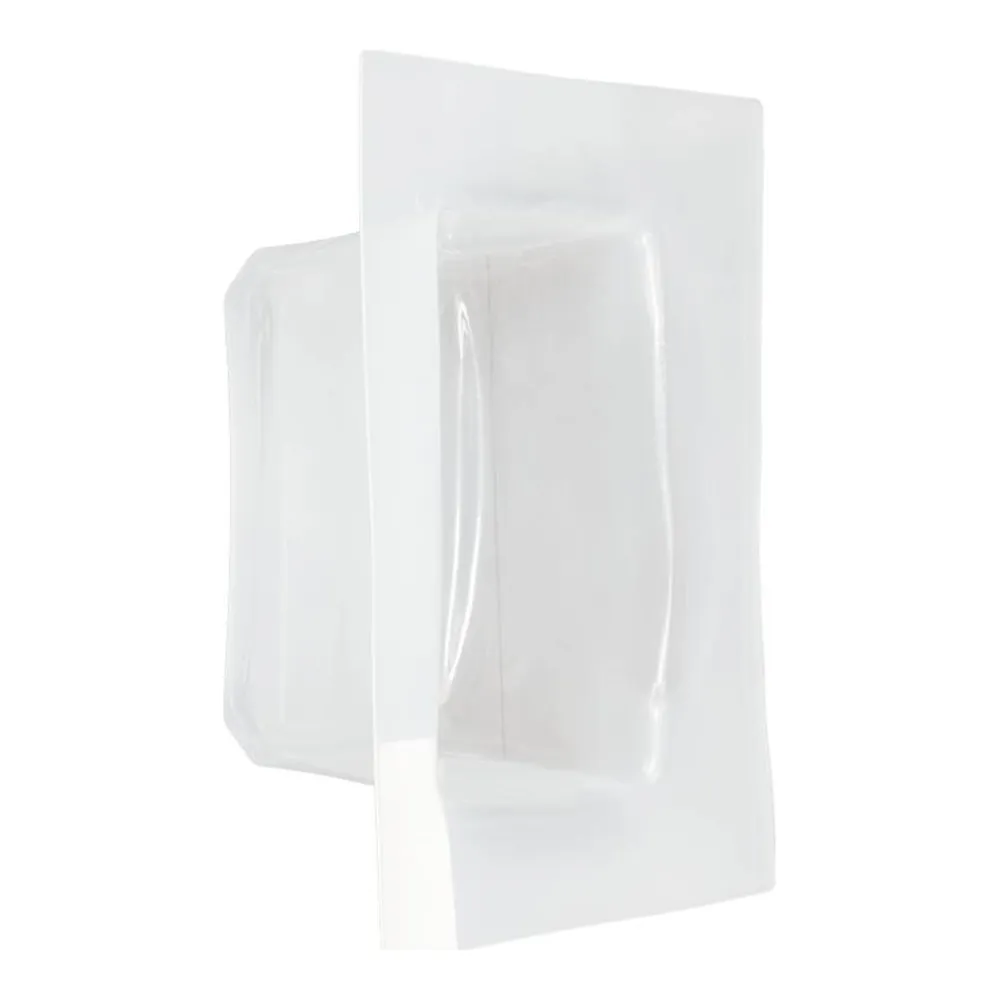

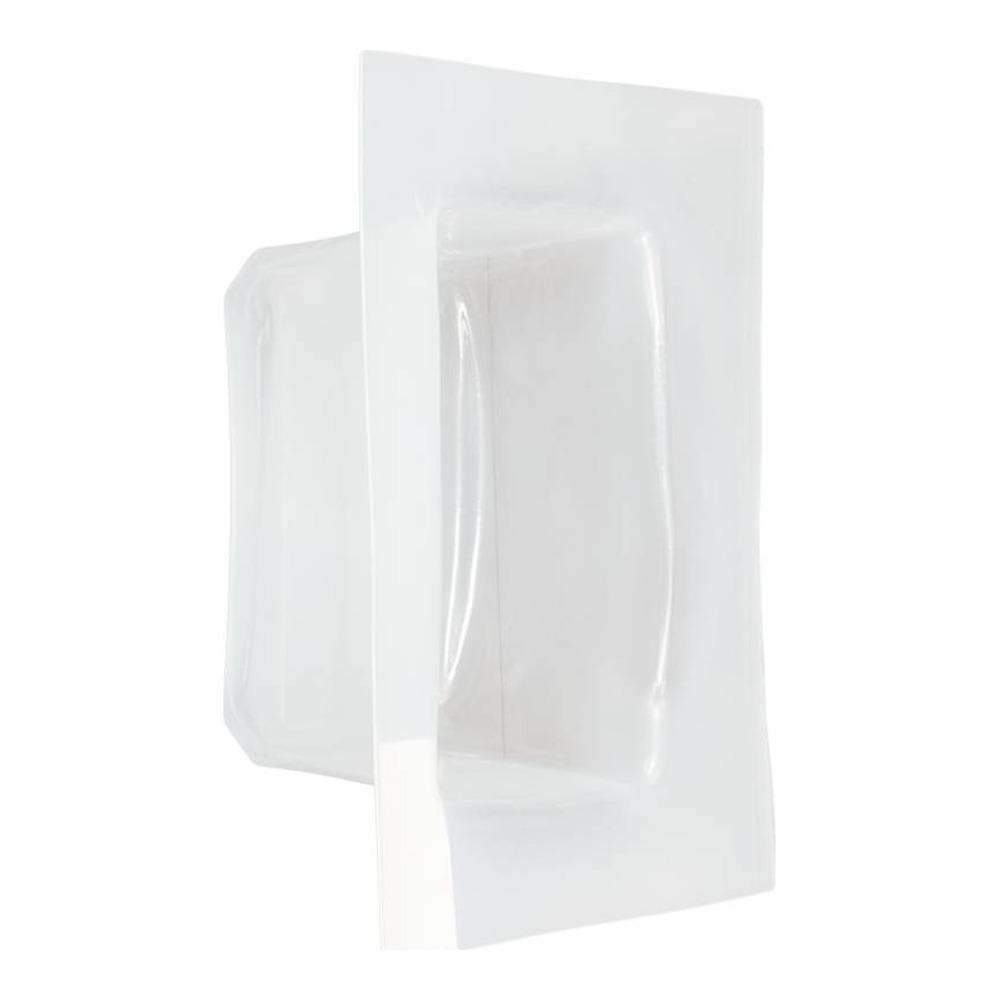

The boot is made of polyethylene, a transparent and durable material. Being clear, it lets you check the position of the box, the cable entries and the framing at a glance as you install it. It resists a wide range of temperatures without cracking, with an operating temperature from -40 °C to 90 °C, so it holds up whether the wall is closed in during a January cold snap or a July heat wave. Its light weight of 19 g adds no noticeable load to the box.
Installation in a few steps
The boot fits single 2 in × 3 in electrical boxes with a depth of up to 3 in, the standard single-gang device box used for receptacles and switches. Put it in place with the box before the insulation and polyethylene go up, bring the cables in carefully, then tape or seal its border to the wall's vapour barrier as local building practice requires. Its overall size of 7-5/16 in (185 mm) × 5-7/16 in (138 mm) × 3-1/8 in (80 mm) leaves room around the box for that overlap. The electrical connections themselves should be made by a qualified electrician, in line with the Canadian Electrical Code.
Where to use it
Use it behind every electrical outlet and switch on the exterior walls of houses, condos and cottages, in finished basements, in heated garages and workshops, and on the insulated walls of offices, stores and other commercial spaces. It is just as useful during a renovation, when walls are opened and the poly must be restored around new receptacles, as in new construction. Looking for a pot light vapour barrier? This model is made for single device boxes, so for recessed lights choose a cover designed for them. The ARANI spec sheet is available in the Documentation tab.
Technical specifications
Brand: ARANI
SKU: ED-VB-1-V1
Compatibility: single 2 in × 3 in electrical boxes, depth up to 3 in
Dimensions: 7-5/16 in (185 mm) × 5-7/16 in (138 mm) × 3-1/8 in (80 mm)
Material: polyethylene, transparent
Weight: 19 g
Operating temperature: -40 °C to 90 °C
