LED Cove Lighting

LED cove lighting hides the light source in a ledge, a recess or a profile and bounces the light off the ceiling or the wall. The result is a soft, glare-free glow that makes ceilings look higher and rooms feel larger. Because the strip itself stays out of sight, concealed cove lighting is one of the most elegant ways to add ambiance to a space.

This page is for homeowners and designers planning a living room, bedroom, kitchen or home theatre, for the contractors and millworkers who build the coves, and for commercial projects such as hotel lobbies, restaurants and offices across Canada. It covers the components you need, the specs that matter and the details that make a cove look professional.

What you need for LED cove lighting

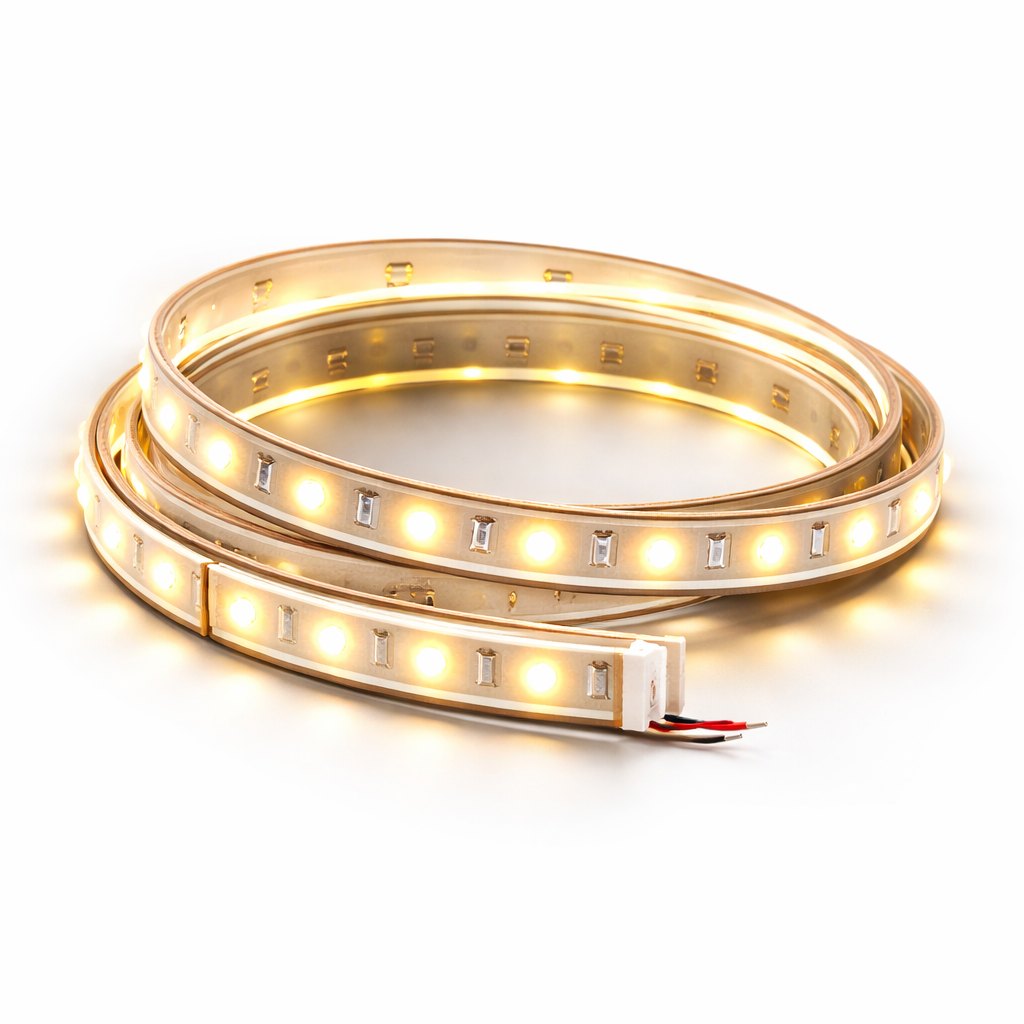

LED strips: the light source

Indoor LED strips are the heart of any cove. Most strips in this selection run on 24 V, which suits long runs around a room. COB LED strips give a continuous, dot-free line, ideal on glossy ceilings where SMD dots could reflect. CANOLIGHT long run COB strips come in 10 m rolls, in RGB (630 LEDs/m) or RGBW (896 LEDs/m, 24 V DC) for colour scenes. For a bathroom or a humid space, the LUMENSTARLED moisture-proof curve tape (12 V, 7.2 W/m, 72 LEDs/m, CRI 90) is dimmable and renders colours naturally.

Aluminium channels and trims

An LED aluminium channel protects the strip, draws heat away from it and holds a diffuser that smooths the light. CANOLIGHT offers profiles for every type of cove, most of them in 10 ft lengths. The CANOLIGHT knife edge 7330 profile leaves only a sliver of trim in a drywall ceiling and accepts T, Y and 120° connectors. Trimless recessed profiles such as the 5515, the 3515 for one side after drywall and the 5324 corner profile create a clean light slot without a wood ledge. The surface mounted 613 comes with 2 end caps, 3 clips and a PC cover, while the 10015 baseboard profile lights a toe kick or a floor line. The aluminium LED profile guide compares types and installation methods.

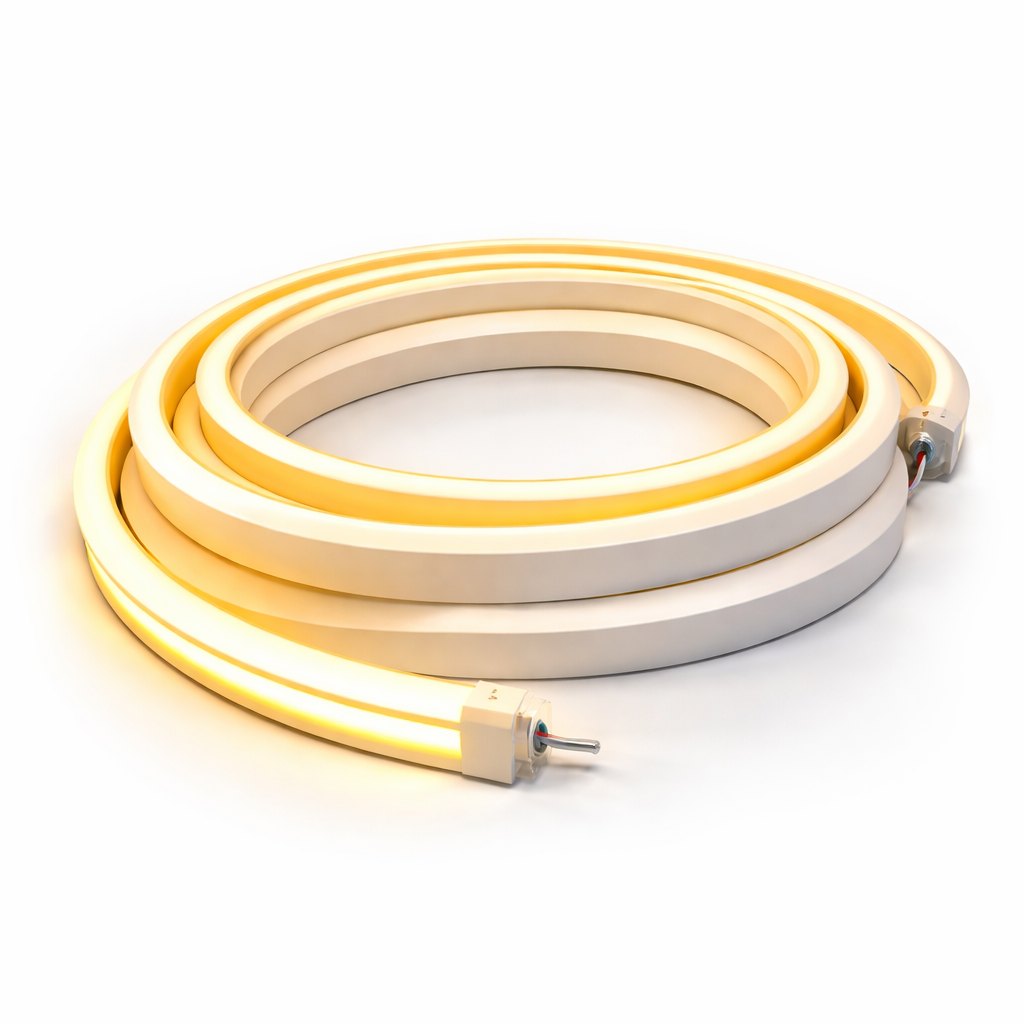

LED neon flex for curved coves

For curved ceilings, domes or a line that remains visible, LED neon flex gives a perfectly even glow. The LUMENSTARLED neon flexible top bend (Type XA, 24 V DC, 8 W/m, IP67, dimmable) is cut to a custom length in 2700K or 3000K. NEXLEDS 10 mm neon flex (IP67, CRI 90+, 10 m roll) and the ARANI 24 V flexitube (5 W per foot, dimmable, 33 ft roll, 3000K or 4000K) are other options.

Power and controls

Every low-voltage cove needs a power supply sized for the strip load, chosen from LED power supplies and drivers. For scenes and colour, controllers and DMX products take over: the LUMENSTARLED 24 channel DMX decoder (12-24V DC, 2A per channel), its 5 channel digital decoder (8A per channel) and the Casambi control (96 W, 4 channels, app included, UL listed). The TUROLIGHT battery-powered Bluetooth mesh wall switch adds control without new wiring.

Cove lighting specs that matter

• Dot-free light: COB strips or a diffuser lens hide individual LEDs, which matters when the ceiling reflects the strip.
• Colour temperature: 2700K to 3000K creates a warm, relaxing wash for living spaces. CCT and dim-to-warm strips let you shift the mood, and RGB or RGBW strips add colour.
• Colour rendering: CRI 90 keeps paint, wood and fabrics true to colour.
• Voltage: 24 V handles long runs with less voltage drop; 12 V suits short runs.
• IP rating: IP20 or IP22 strips suit dry indoor coves; IP66 or IP67 products belong in humid areas.

The guide to choosing LED strip lights explains COB vs SMD, 12 V vs 24 V and power supply sizing in detail.

Design and installation tips

• Give the light room to spread: keep the strip back from the ceiling so it creates a smooth wash rather than a hard line.
• Hide the source: nobody should see the strip from a seated or standing position.
• Plan the power feeds: place the power supply where it stays accessible, and feed long runs from more than one point.
• Treat corners carefully: connectors, corner profiles or neon flex keep the line continuous.

Residential and commercial uses

At home, cove lighting shines in living rooms, bedrooms and above kitchen cabinets, where it adds a warm layer to the main lighting. It is also a classic for media rooms: the LED home theatre lighting page shows how dimmable coves set the mood, and LED kitchen lighting covers cabinet tops and toe kicks.

In hotels, restaurants, offices and stores, coves outline ceilings and bulkheads, and DMX control creates scenes for each time of day. On a façade, the LUMENSTARLED RGBW wall color blaster (48 W, DMX capable, outdoor rated) washes walls with colour.

FAQ

What is cove lighting?

Cove lighting is indirect lighting: an LED strip hidden in a ledge, a recess or a profile sends light toward the ceiling or the wall, which reflects a soft glow into the room.

What LED strip is best for cove lighting?

A 24 V strip with high CRI suits most coves. Choose COB for a dot-free line on glossy surfaces, and CCT or RGBW if you want to change the mood.

Do I need an aluminium channel for cove lighting?

It is strongly recommended. The channel dissipates heat, keeps the strip straight and holds a diffuser for a smoother line.

Can cove lighting be dimmed?

Yes. Use dimmable strips with a compatible dimmable power supply or a controller. DMX decoders and Casambi controls add scenes and app control.

Is there a cove lighting kit?

You can assemble your own: strip, aluminium channel with end caps and lens, power supply and dimmer or controller. Building it from components lets you match the exact length and colour.

Can I create a cove without building a wood ledge?

Yes. Trimless recessed and knife edge profiles install in drywall and act as a ready-made light slot, while surface profiles mount directly on the wall or ceiling.

Ready to add a soft glow to your ceilings? Browse CCT LED strips and end caps, lenses and accessories along with the strips and profiles above.
