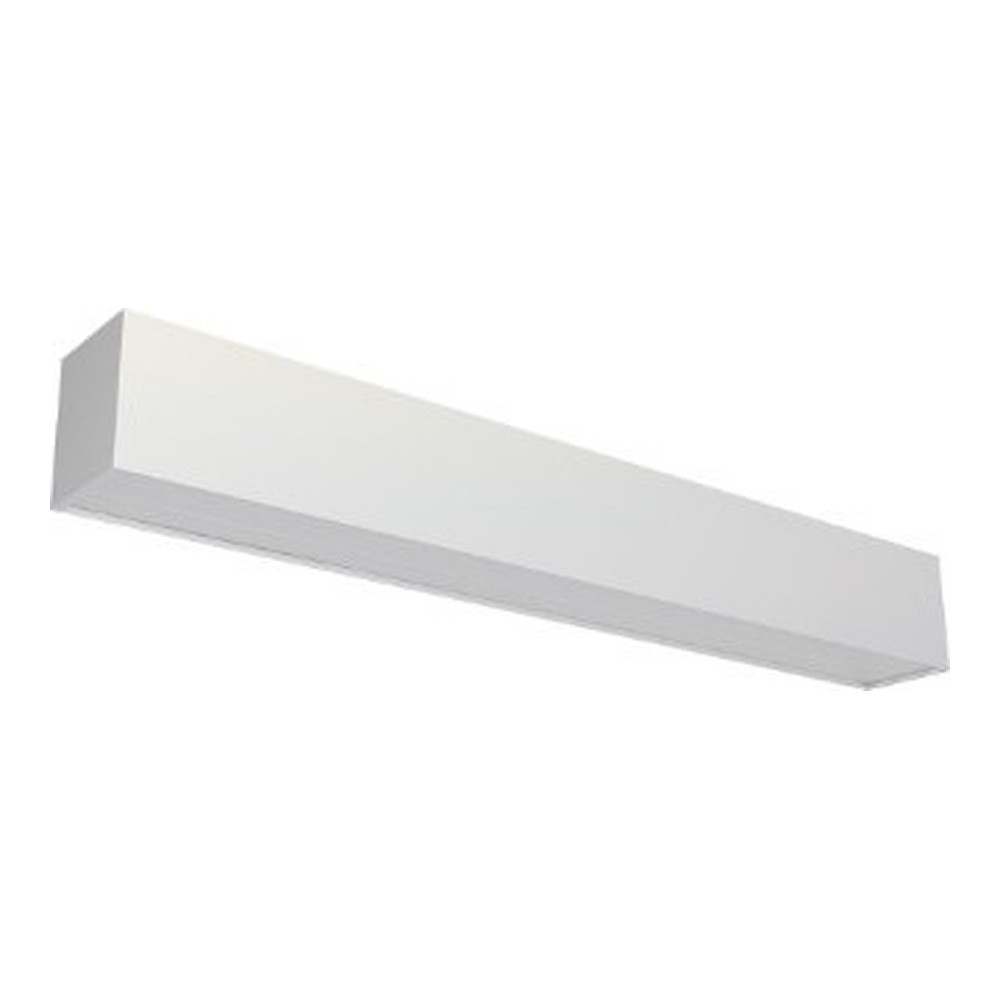

ALV ARCHITECTURAL LINEAR, STRIP LIGHTS, 15W/20W/25W, 2700K/3000K/3500K/4000K/5000K, 120-347V, WHITE

Name: ALV ARCHITECTURAL LINEAR, STRIP LIGHTS, 15W/20W/25W, 2700K/3000K/3500K/4000K/5000K, 120-347V, WHITE
Brand: CSC LED
SKU: ALV-2-DI-25W-3P-5CCT-UD-WH
Price: 191.97 CAD
Availability: InStock

SKU: ALV-2-DI-25W-3P-5CCT-UD-WH

Brand: CSC LED

Give any room, corridor or shop floor a clean line of light that actually works for a living: the ALV Architectural Linear from CSC LED is the 2' version of the Varo family, a slim LED strip light that people also search for as an LED linear fixture, architectural linear, LED strip lighting or simply a strip light. It is a direct-lit luminaire designed to be installed alone or linked end to end into long continuous runs, straight lines, L, T, V or X shapes, so you can draw light exactly where your plan needs it. SKU ALV-2-DI-25W-3P-5CCT-UD-WH comes in a white finish that disappears against a white ceiling, and it suits offices, stairwells, corridors, storage rooms, garages, retail aisles and open-concept basements.

This 2' model is power selectable with 3 settings — 15W, 20W and 25W — and 5CCT selectable, meaning five choices of colour temperature: 2700K, 3000K, 3500K, 4000K and 5000K. Output ranges from 2055 lm at 15W/2700K up to 3375 lm at 25W/4000K, with efficacy between 130 lm/W and 142 lm/W and a CRI >80 for natural, honest colour. It arrives set from the factory at 25W, 4000K, 100% downlight and 0% uplight, and the uplight/downlight distribution is configurable. Electrically it accepts 120-347V, dims with 0-10V control, carries 2kV surge protection, a power factor >0.9, THD <20% and a 110° beam angle. Housing is extruded aluminum with a polycarbonate lens, rated IP20 and IK08, cUL listed (E482965), DLC listed (ID S-HKDJM2, Standard), with L70 life >54,000 hrs, an operating range of -30°C to 45°C and a 5-year warranty.

It's a natural fit for Canadian renovations and commercial projects: a workshop over the bench, a condo corridor, a stairwell, a retail back room, a small office you want to feel bright but never harsh. Mounting is flexible — T-bar, recessed, wall, suspension and surface kits are sold separately, and one power cord is required per run. Pair it with the 12 ft power and dimming cord, white, shape your layout with the inline connector, the L connector 90°, white or the T connector, white. Plan your run, add your accessories, and light it right the first time.

Built to line up, run after run
The ALV Architectural Linear is a 2' direct-lit LED linear fixture with an extruded aluminum housing and a polycarbonate lens — a combination that spreads light evenly while pulling heat away from the LEDs. Quick-connect ends let you join luminaires into continuous runs without visible gaps, and five connector options (V, L, T, X and inline) let you turn corners, branch off or cross over. All models are offered in black and white; this one is the white finish, part number ALV-2-DI-25W-3P-5CCT-UD-WH. The IK08 rating speaks to a solid build for busy rooms, while the IP20 rating means it belongs in dry, indoor locations.

Light you can tune on site
Two switches do the work of many SKUs. The power selectable feature offers 3 settings on this 2' model — 15W, 20W or 25W — and the 5CCT selectable feature gives five colour temperatures: 2700K, 3000K, 3500K, 4000K and 5000K. At 15W you get 2055 lm (2700K), 2100 lm (3000K), 2115 lm (3500K), 2130 lm (4000K) or 2085 lm (5000K). At 20W: 2660 lm, 2720 lm, 2740 lm, 2760 lm and 2700 lm. At 25W: 3250 lm, 3325 lm, 3350 lm, 3375 lm and 3300 lm. Efficacy stays between 130 lm/W and 142 lm/W and CRI is >80. Uplight and downlight distribution is configurable — 100% downlight and 0% uplight, 90% downlight and 10% uplight, or 70% downlight and 30% uplight — and the factory setting is 25W, 4000K, 100% downlight, 0% uplight.

Technical specifications
Wattage: 15W / 20W / 25W selectable
Colour temperature: 2700K / 3000K / 3500K / 4000K / 5000K selectable
Lumens: 2055 lm to 3375 lm
Efficacy: 130 lm/W to 142 lm/W
CRI: >80
Voltage: 120-347V
Dimming: 0-10V
Max current: 0.229A
Surge protection: 2kV
Power factor: >0.9
THD: <20%
Beam angle: 110°
L70 life: >54,000 hrs
Operating temperature: -30°C to 45°C
Housing: extruded aluminum
Lens: polycarbonate
Finish: white
Ratings: IP20, IK08
Listings: cUL E482965, DLC ID S-HKDJM2 (Standard)
Warranty: 5-year

Wiring, mounting and compatibility
The wide 120-347V input means the same fixture works on a 120V residential circuit or a 347V commercial feed, which simplifies multi-building projects. One ALV-CORD power cord is required per run; a run can be inline or a shape that doesn't exceed 400W (120V) or 1250W (347V). Cords are 5-wire and carry power plus 0-10V dimming, available in 6' and 12' lengths: 12 ft cord, white, 6 ft cord, black. Mounting kits — T-bar (suspension kit required), recessed frame, wall mount, suspension and surface mount — are sold separately, including the wall mount kit, white. For seamless runs, frosted connection lenses are available in 24' rolls, or in 1' increments for runs exceeding 24'.

Where it works and what's in the Documentation tab
DLC classifies this SKU under Direct Linear Ambient Luminaires, which lines up with its real jobs: offices and meeting rooms, corridors and stairwells, school and clinic hallways, warehouses, garages, mechanical rooms, retail displays and renovated basements. Need more punch or longer sections? Step up to the 4 ft ALV linear, white or the 8 ft ALV linear, white, or match a darker ceiling with the 2 ft ALV linear, black. The Documentation tab holds the installation guide and the spec sheet in English and in French — worth a read before you set the wattage and colour switches, since both are easiest to configure before the fixture goes up.
