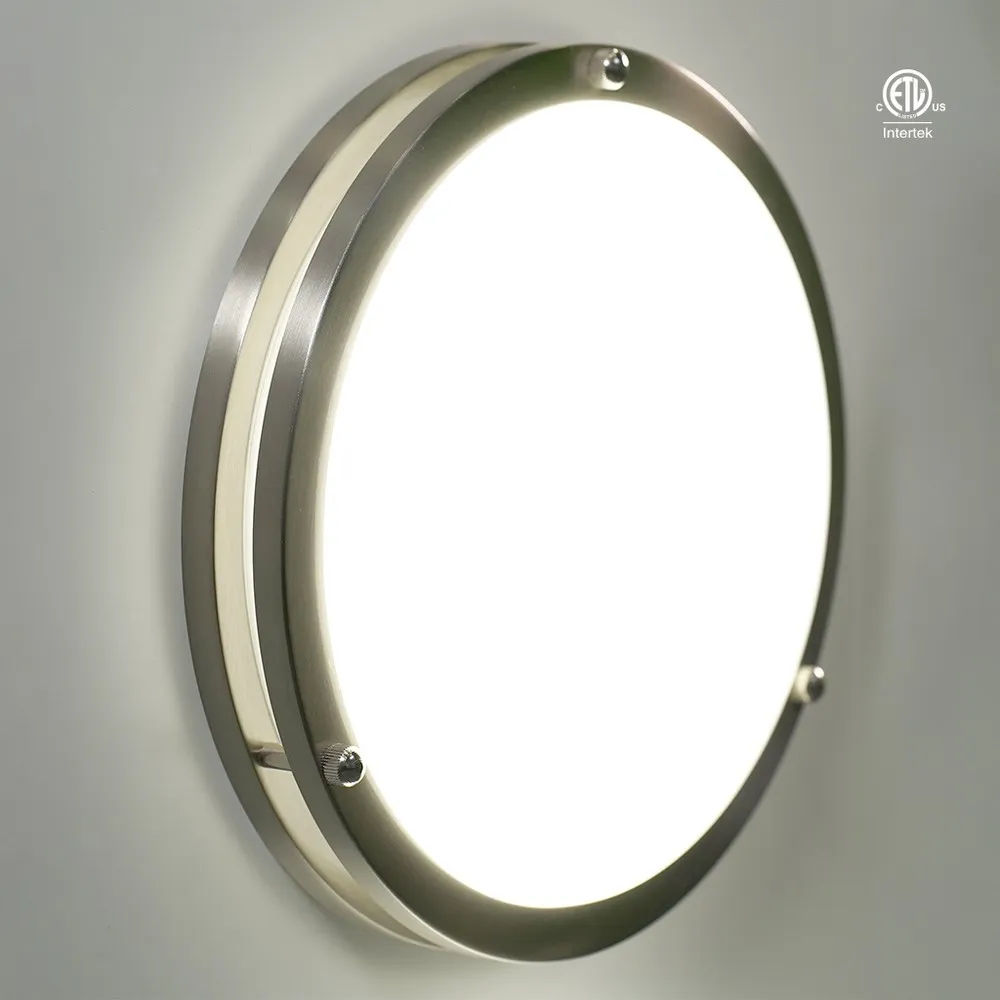

Design and constructionThe double ring design is built from a
cold-rolled steel plate and rings, with aluminum pillars that help dissipate heat and protect the LEDs over time. The low-profile body measures Ø10 x 2.5 in, so it tucks close to the ceiling and keeps sightlines open in tight spaces. The lens spreads the light evenly, without dark spots or shadows, for a smooth
LED flush mount glow across the whole room.
Light quality and colour temperatureWith a CRI of 80 and 1120 lumens from 16W, this
LED ceiling light gives clear, comfortable light for everyday living. The
selectable CCT (3000K, 4000K or 5000K) means one fixture can match any room: 3000K for a warm, relaxing bedroom or living room, 4000K for kitchens and laundry rooms, 5000K for a garage, workshop or office where you want crisp, energizing light. Because it is
dimmable, you can also lower the level for a soft evening ambiance.
Electrical and installationThe fixture runs on 120V AC, 60Hz and connects directly to a standard ceiling junction box, making it a quick upgrade from an old dome light. It is IC rated, suitable for damp locations and indoor use, and works in ambient temperatures from -20°C to +40°C. Pair it with a compatible LED dimmer for full control of the brightness. Its IP20 rating means it is designed for indoor spaces, so keep it away from direct water spray.
Technical specificationsWattage: 16W
Lumens: 1120 lm
Colour temperature: 3000K / 4000K / 5000K (selectable)
CRI: 80
Voltage: 120V AC, 60Hz
Dimmable: Yes
Rating: IP20, IC rated, damp location, indoor use
Operating temperature: -20°C to +40°C
Lifetime: 50,000 hours
Size: Ø10 x 2.5 in
Finish: Satin nickel
Warranty: 5 years
Documentation and matching fixturesThe full ORTECH spec sheet is available in the Documentation tab, with the dimension drawing and the specifications for the 10", 14" and 16" sizes of the series. For a consistent look across a project, install the
black version of this 10" double ring flush mount in rooms with darker accents, and keep the satin nickel model for hallways and kitchens with stainless or brushed hardware.
