Pixel LED Strips

Pixel LED strips bring motion, color, and dynamic effects to any installation by allowing each segment of the strip to be controlled individually. Often called addressable or chaseable LED strips, they use a digital signal (such as SPI) to create chasing, fading, and sequencing effects that traditional strips cannot achieve. They are a favorite for accent lighting, signage, entertainment spaces, and modern architectural projects.

Types and Options

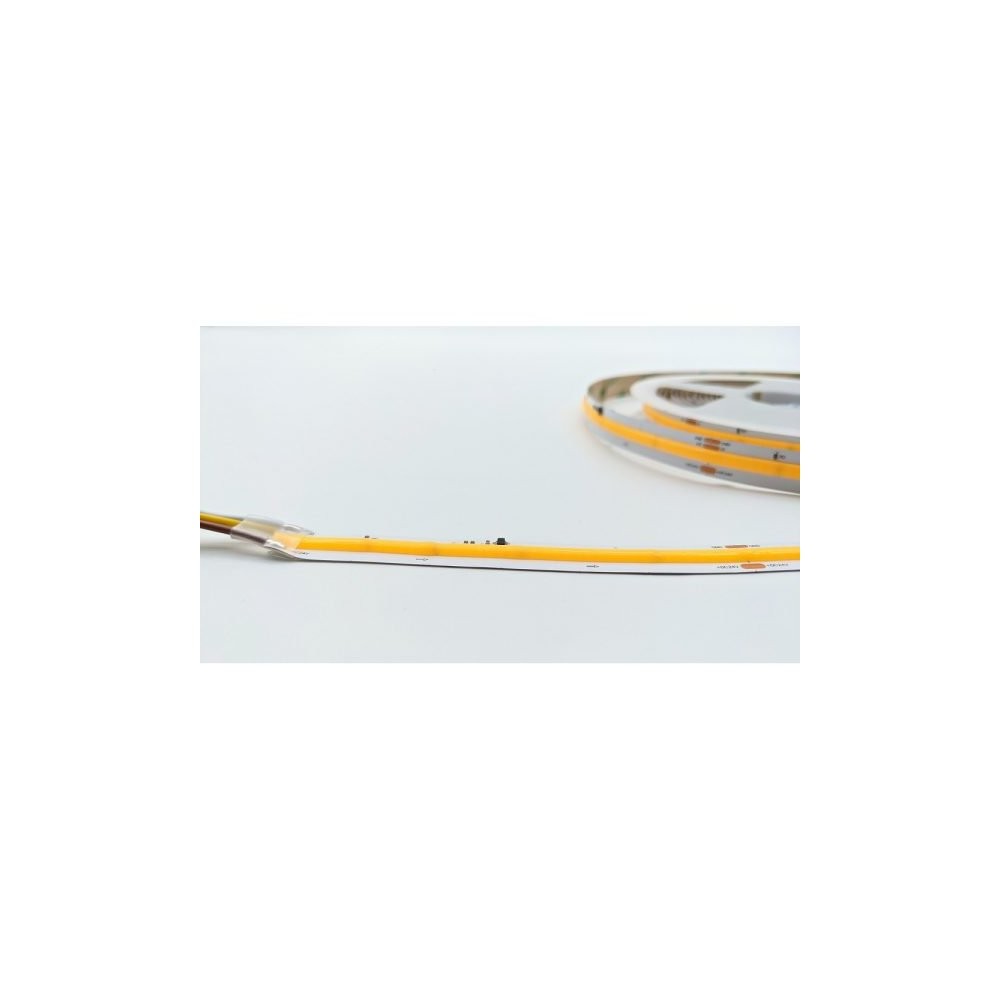

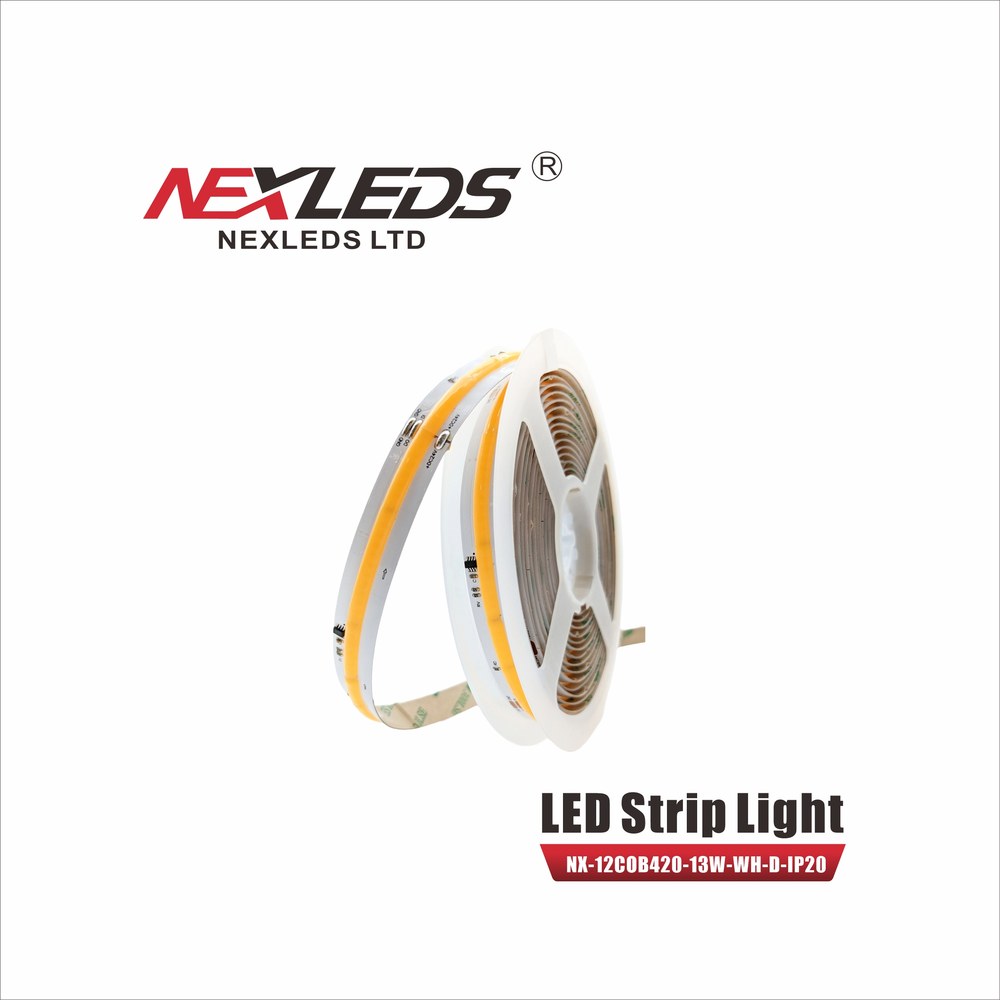

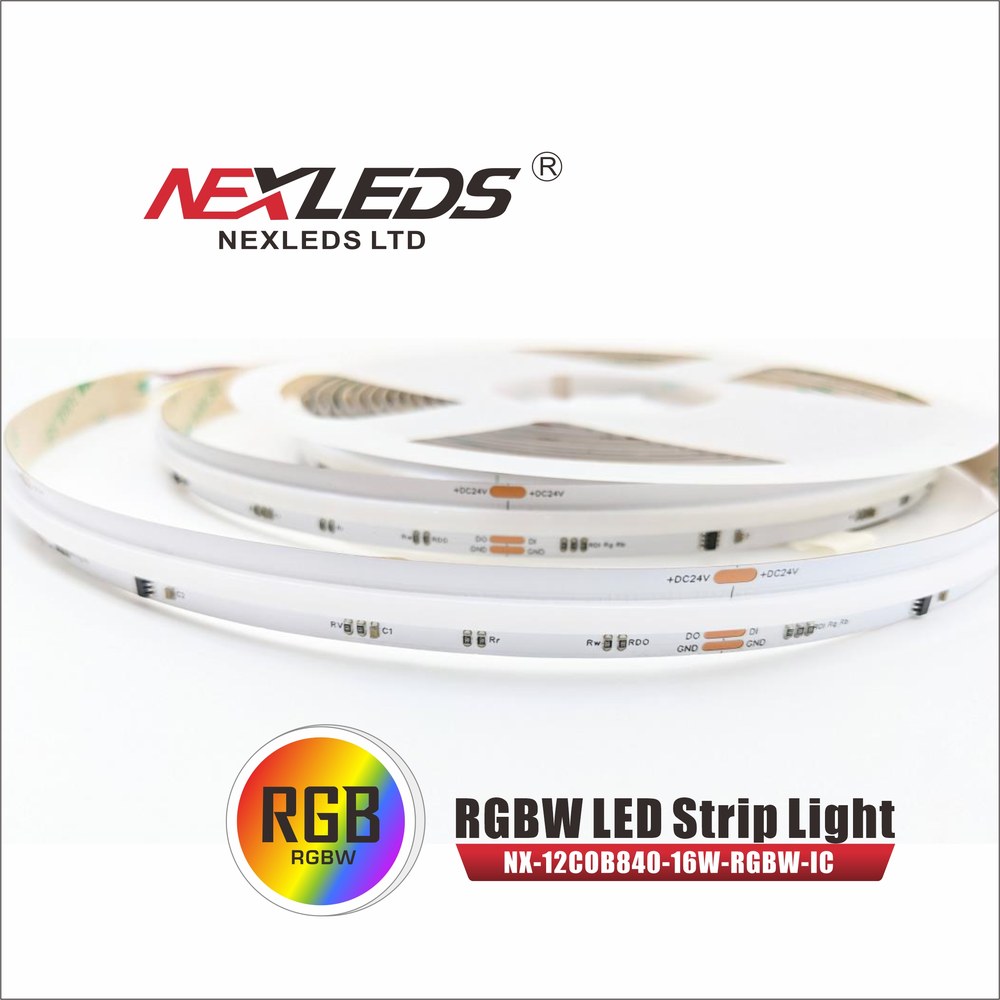

COB chaseable strips use a continuous, dotless light surface for smooth, even illumination while still supporting addressable effects. Digital chase strips let you program flowing motion along the length of the strip. You'll also find options by color temperature (such as 3000K warm white and 4000K neutral white) and by PCB width, with 12mm being a common, versatile size.

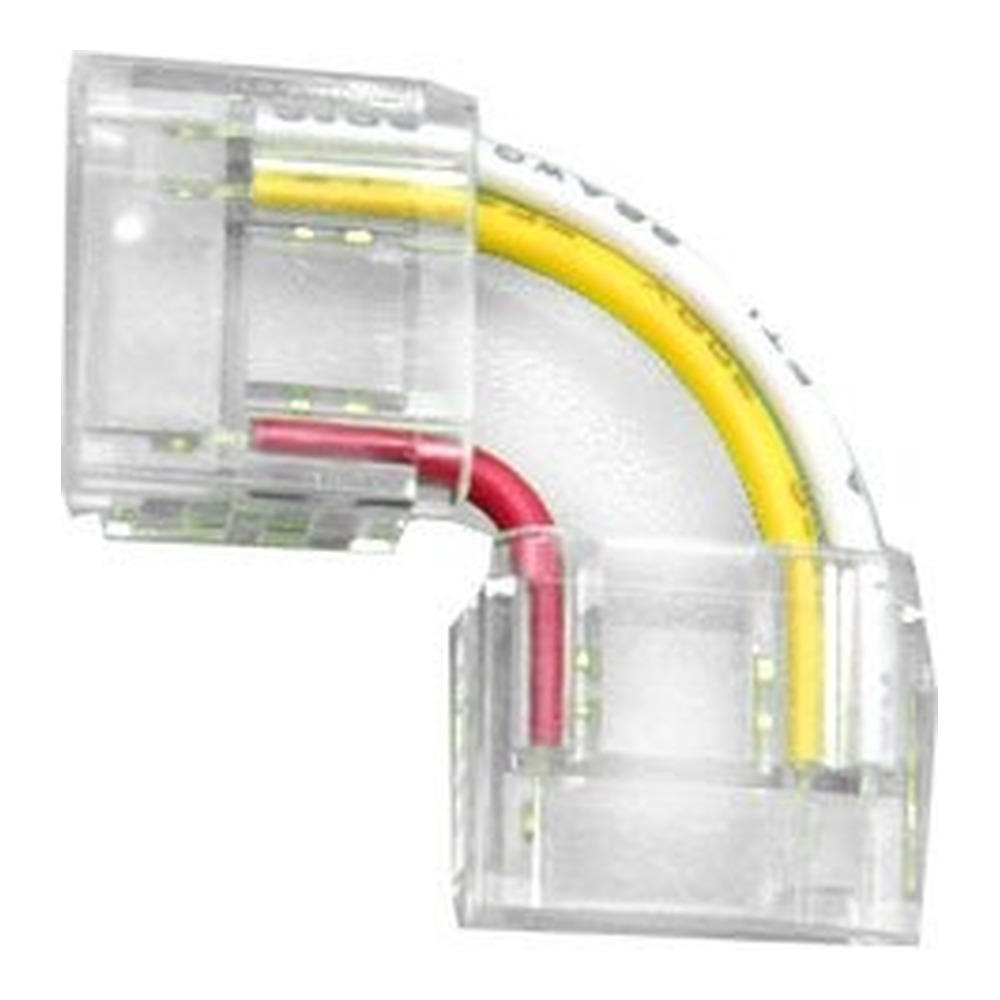

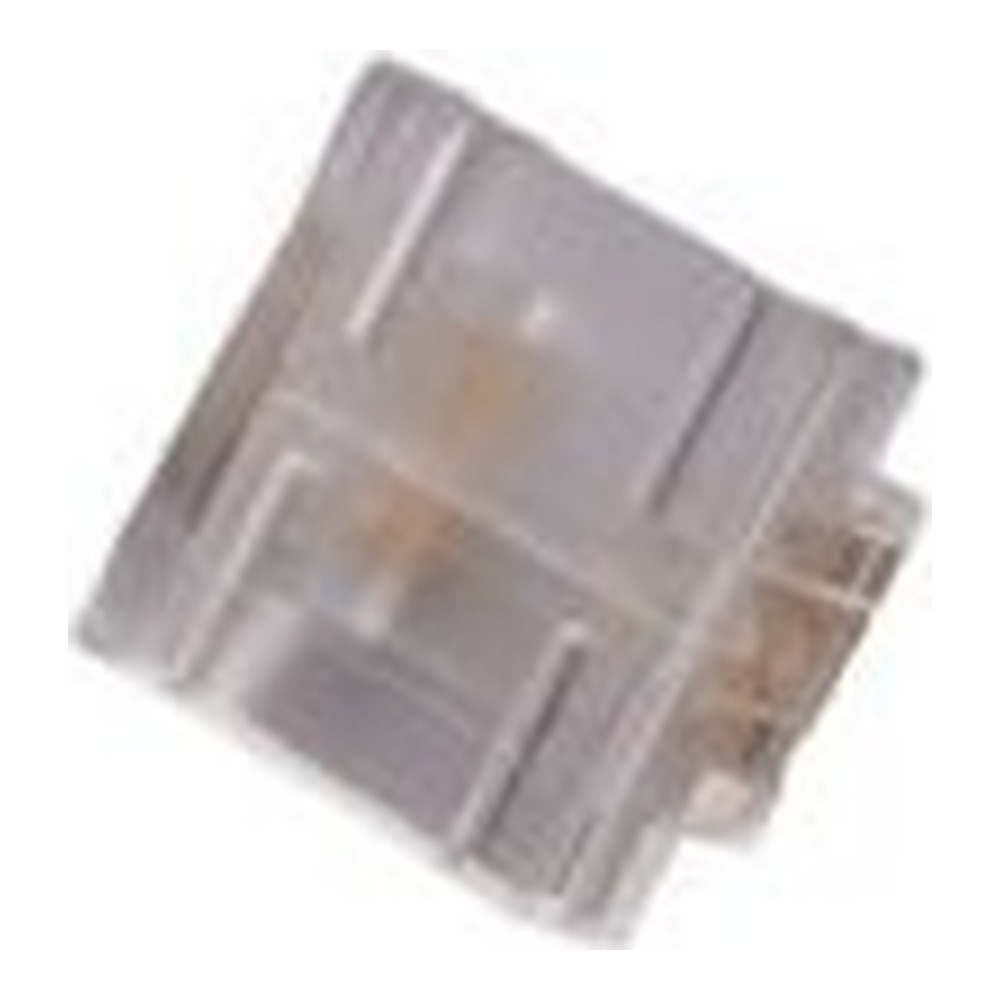

A full system also relies on accessories: PCB-to-PCB connectors for straight joins, L-shape connectors for corners, and wire-to-PCB connectors for clean wiring runs without soldering.

Where to Use Them

In residential settings, pixel strips add ambiance to ceilings, staircases, gaming rooms, and under-cabinet zones. In commercial and retail spaces, they create eye-catching displays, signage, and brand accents. They are also widely used in hospitality, entertainment venues, and architectural features where dynamic lighting enhances the experience.

How to Choose

Start with voltage: most strips here run on 24V DC, which reduces voltage drop over longer runs. Pick a color temperature based on the mood you want—warmer tones for cozy spaces, neutral tones for crisp, modern looks. Check the IP rating; an IP20 strip is intended for dry, indoor use, so choose accordingly for protected locations. Confirm the PCB width and LED density to match your channel and brightness needs, and make sure you have a compatible digital controller to drive the addressable effects.

FAQ

What makes a pixel strip different from a regular LED strip? A pixel strip is addressable, meaning sections can be controlled individually to create chasing and animated effects, unlike a standard strip that lights uniformly.

Do I need a special controller? Yes. Addressable strips require a compatible digital (SPI) controller to manage the dynamic effects.

Can I cut these strips? Most strips can be cut at designated points and rejoined with connectors. Always follow the marked cut lines to keep the circuit working correctly.
